STEERING-IVT
95
13. Slide the rollers off of the bevel gears.
See Figure 6B.46.
NOTE: There are no retains for these rollers
because they are trapped between the bevel
gears and the cam.
14. Lift the steering rack out of the upper steering
box cover.
15. Remove the wear block.
NOTE: There is a spring inside the wear block
that presses the wear block against the steering
rack. See Figure 6B.47.

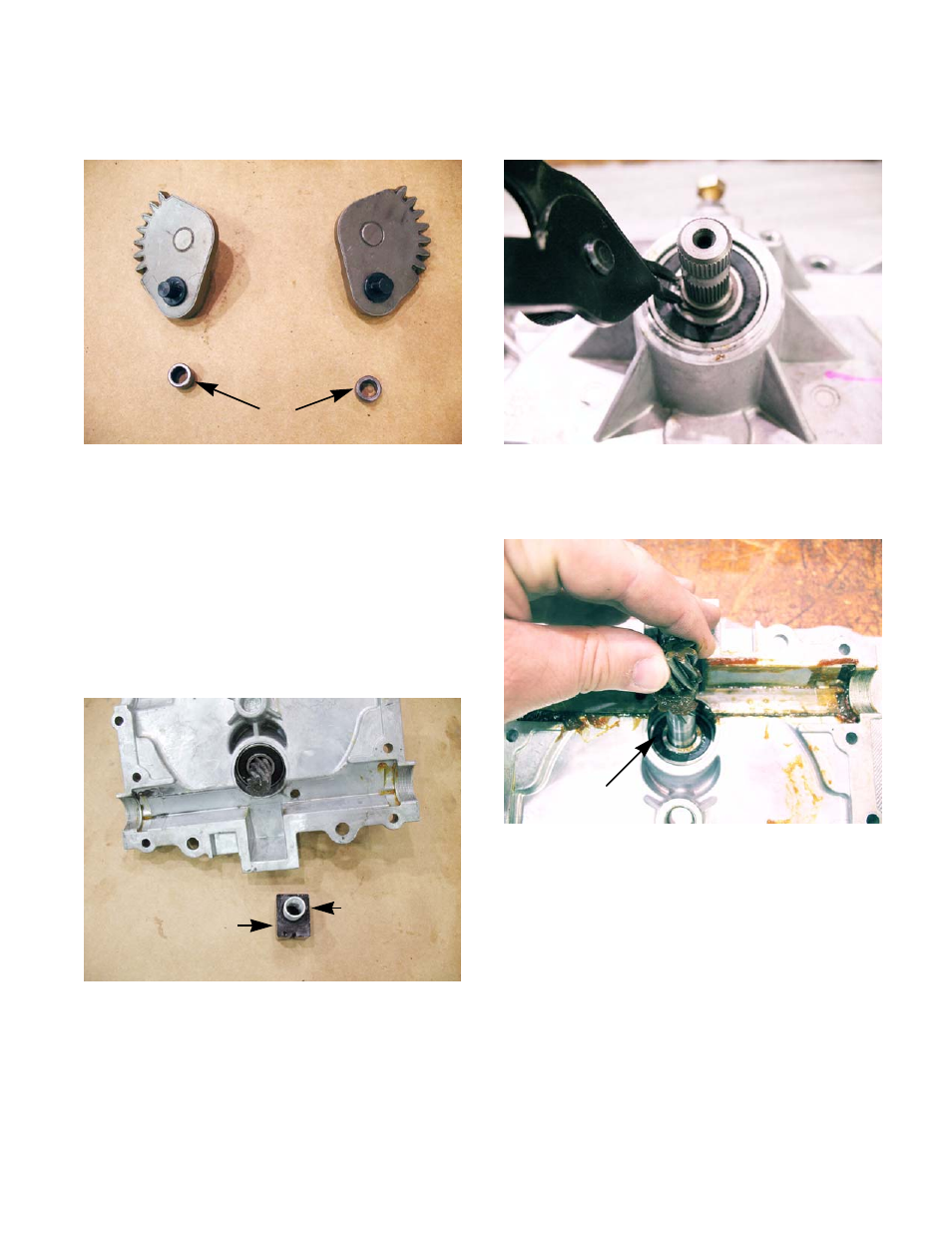

Figure 6B.46
Rollers
Figure 6B.47
Wear block
Spring
16. Remove the snap ring from the input shaft.
See Figure 6B.48.
17. Remove the input shaft from the inside of the
housing. See Figure 6B.49.
Figure 6B.48
Figure 6B.49
Input shaft
