Cub Cadet ISeries - Manual (Page 103)

STEERING-IVT
97

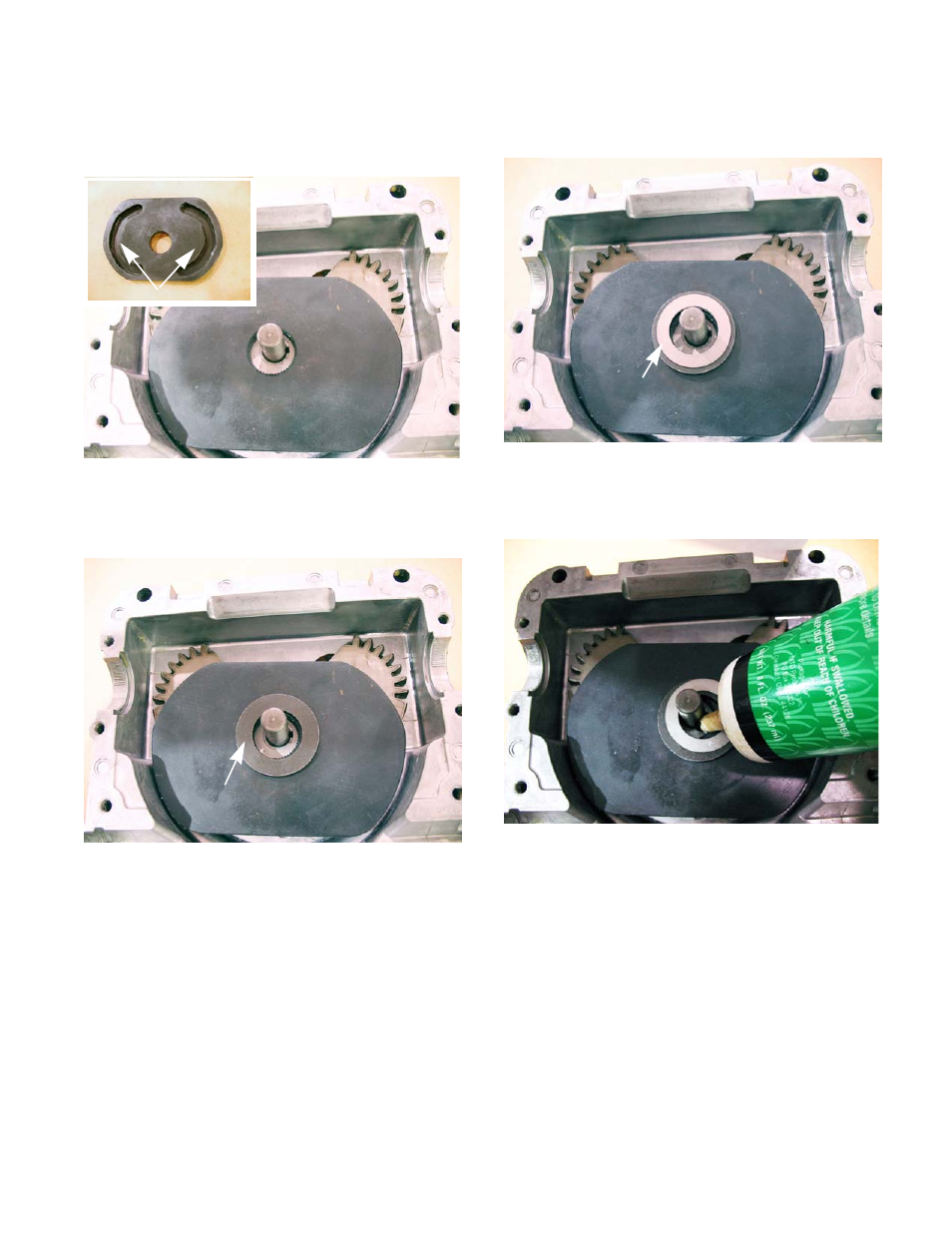

3. Install the internal cam so that the rollers on the
bevel gears ride in the groves of the cam.
See Figure 6B.54.
4. Set the thick washer on the internal cam, over
the steering shaft. See Figure 6B.55.
Figure 6B.54
Cam groves
Figure 6B.55
Thick washer
5. Set the thin washer on top of the thick washer.
See Figure 6B.56.
6. Apply a dab of 737-0300A Durina TM grease to
the side of the steering shaft. See Figure 6B.57.
Figure 6B.56
Thin washer
Figure 6B.57
