INTRODUCTION
2
Description of the I-series
The I-series is a revolutionary new tractor platform
introduced in the 2007 season. This platform combines
a traditional lawn tractor with zero-turning capabilities.
This is accomplished by controlling the drive of the rear
wheels independently and the use of an innovative
steering system. See Figure 1.1.
The Steering gear box operates the control link-
ages for the transmissions while turning the front
wheels. This gives the I-series zero-turning capabilities
while using a traditional steering wheel.
The I-series comes with 42”, 46” and 50” deck
options. The I-series tractors also have the Cub Cadet
Rev-Tek system.
The I-series tractor can be equipped with two
HydroGear Transmissions or an IVT transmission. The
Infinitrak full-toroidal Infinitely Variable Transmission
(IVT) was first introduced in Europe for the 2009 model
year.
Model and Serial Numbers
The model and serial number tag can be found
under the seat. See Figure 1.2.
The serial number is located to the right of the
model number as shown above. See Figure 1.2.
The model number is 17AF9BKH710. The break
down of what the number mean is as follows:
17.........................residential zero turn mower
...A.......................sales level
......F.....................engine code
........9...................frame
..........B................drive system
............K..............hood style
...............H...........deck (H = 46” K = 50”)
...................710....customer number
The serial number is 1J056G10005. The serial number
reads as follows:
1...........................engineering level
..J.........................month of production (J = October)
.....05....................day of the month
.........6..................last digit of the year
...........G................plant it was built in
..............1.............assembly line number
.................0005.....number of unit built

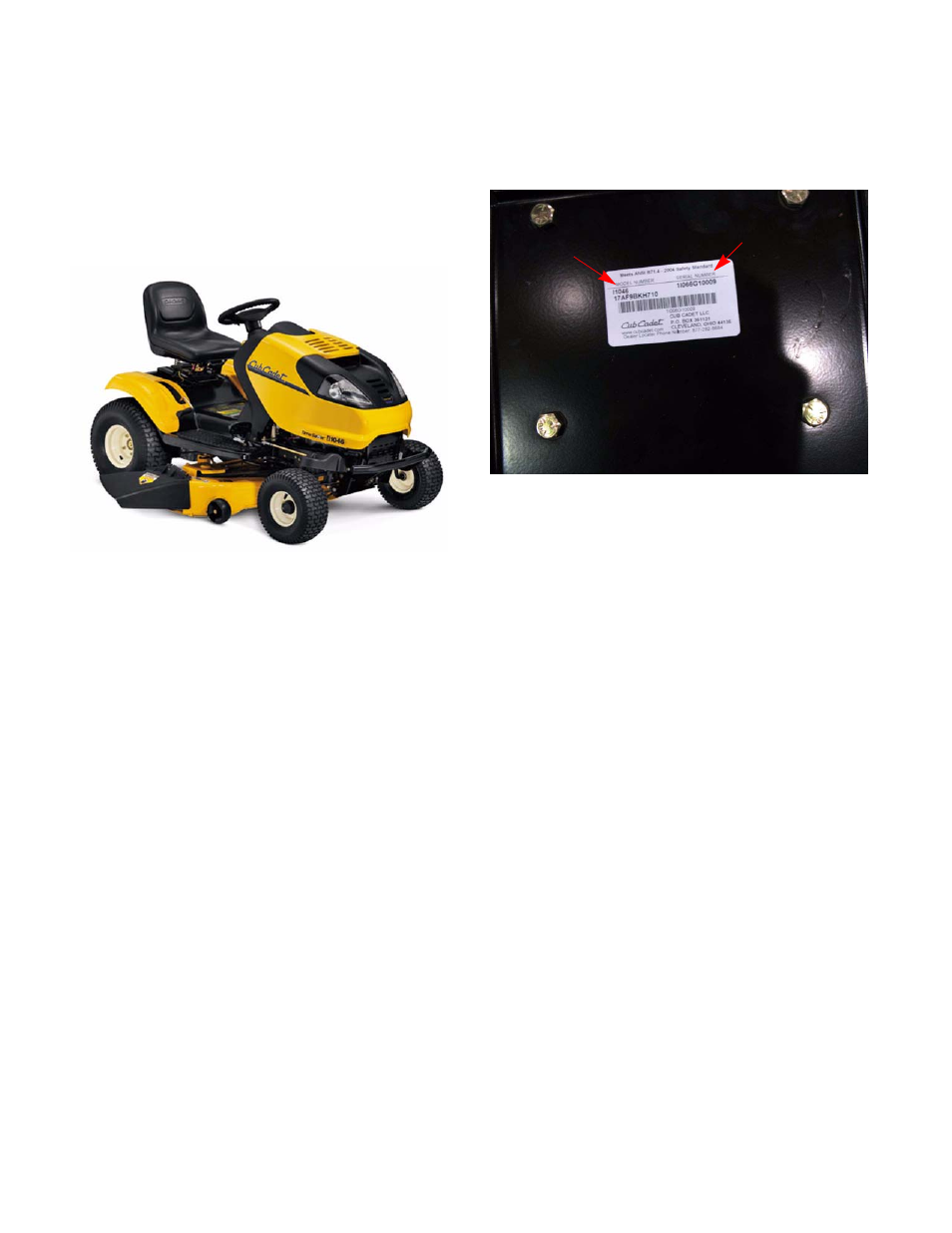

Figure 1.1
Figure 1.2
Model number
Serial number
