STEERING-HYDROGEAR
54
Wheel alignment
NOTE: The transmission neutral adjustment
must be done prior to adjusting the steering link-
age.
1. Remove the three screws holding each steering
gear cover in place. See Figure 6A.13.
2. Rotate the front tires until the marks on the axle
gears and the steering gears align.
See Figure 6A.14.
3. Insert a 5/16” pin through the hole in the steer-
ing gear on each side. The pins should pass
through the gears, through the lower cover plate
and into the pivot bar. See Figure 6A.15.
NOTE: If the alignment is off, the holes may not
line up. If this is the case, adjust the front end by:
3a. Loosen the jam nuts on both ends of the
drag link. See Figure 6A.16.

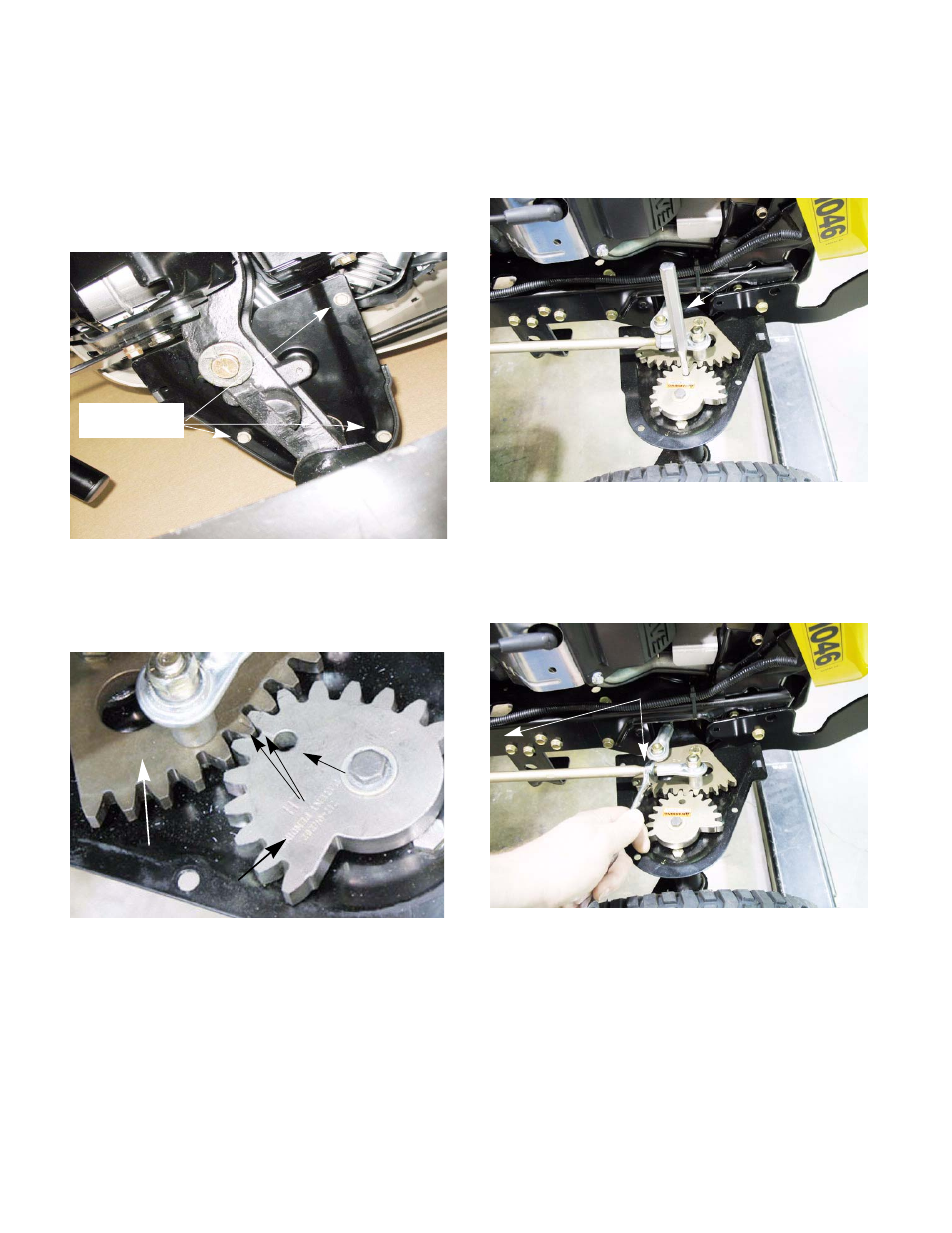

Figure 6A.13
Remove
these screws
Figure 6A.14
Align the timing marks
Insert a 5/16” pin
here
Steering gear
Axle gear
Figure 6A.15
5/16” punch
Figure 6A.16
Loosen both jam nuts
