STEERING-HYDROGEAR
69
16. Install the snap ring on the input shaft.
See Figure 6A.69.
17. Install the wear block:
• For the 618-04430 steering gear boxes with the
adjustment bolt:
17a. Insert the washer into the hole in the wear
block.
17b. Slide the wear block and washer onto the
adjustment bolt. See Figure 6A.70.

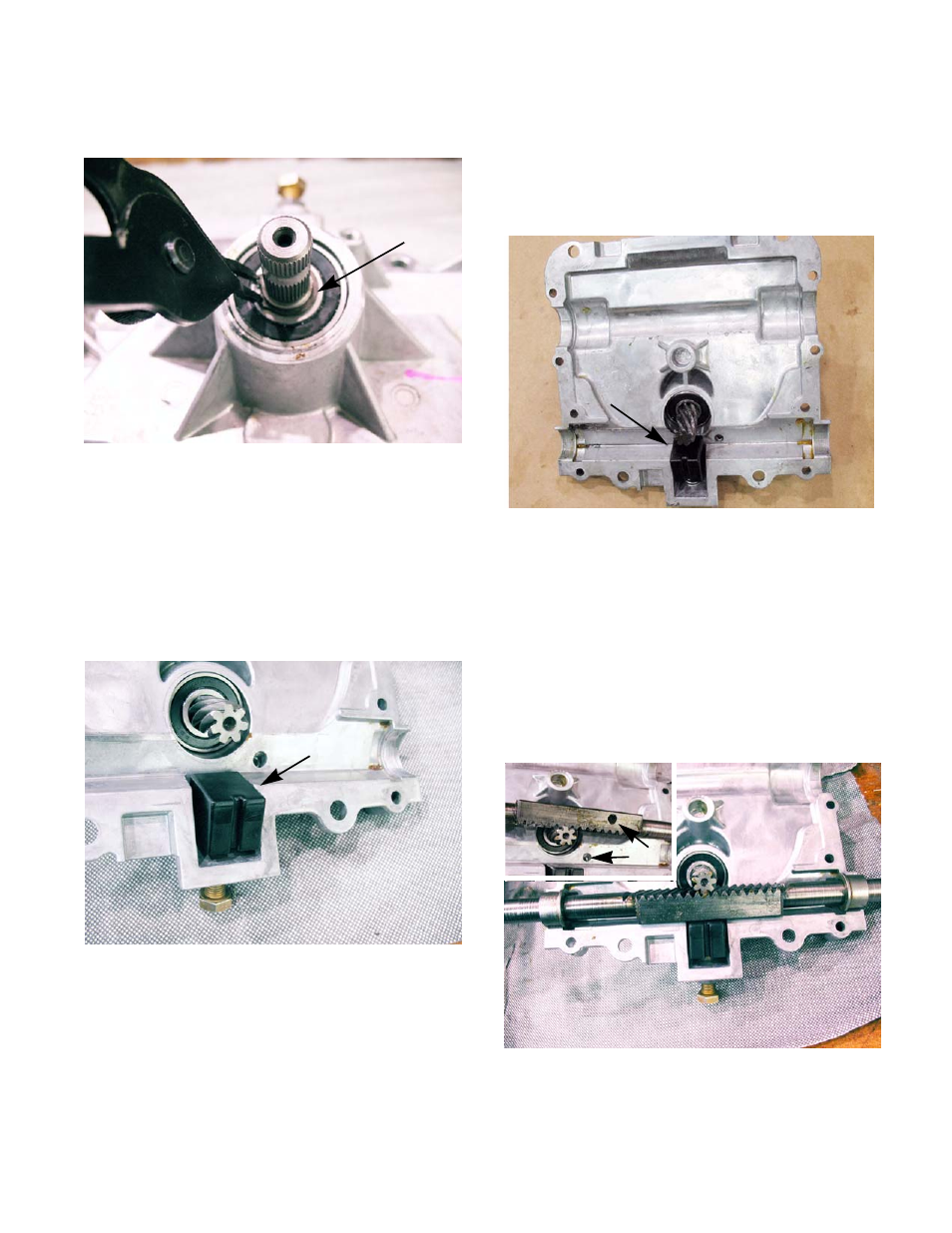

Figure 6A.69
Snap ring
Figure 6A.70
wear block
• For all other steering gear boxes:
17c. Insert the spring into the wear block.
17d. Set the wear block and spring into the
square recess in the upper housing.
See Figure 6A.71.
18. Slide one new bushing onto each side of the
steering rack, with the flanges facing the center
of the rack.
19. Set the steering rack into the grove in the upper
housing; trapping it between the input shaft and
the wear block. See Figure 6A.72.
NOTE: The hole in the steering rack should line
up with the hole in the housing.
See Figure 6A.72 Insert.
Figure 6A.71
Wear block
Figure 6A.72
Align
holes
