15. Apply anti-seize compound to the rollers and the
cam slots on the gear box levers.
See Figure 6A.28.
16. Adjust the speed cam angle by following the
steps described in the previous section.
17. Connect the transmission links.
17a. Place the rollers into the cam slots and
slide the transmission links over the levers.
17b. Insert the bolt through the transmission link
and roller.
17c. Install the nut on the bolt and tighten to a
torque of 8 ft lbs (11 Nm).
See Figure 6A.29.
18. Insert the clevis pins, washers and cotter pins.
19. Align the wheels and adjust the transmission
links by following the steps described at the
beginning of this chapter.
20. Remove the 1/4”-20x2” bolt that came with the
steering gearbox, and install the short one from
the old gearbox.
21. Install the fender and dash by following the steps
described in Chapter 4: Body/Chassis.
22. Test drive the tractor in a safe area before
returning to service.

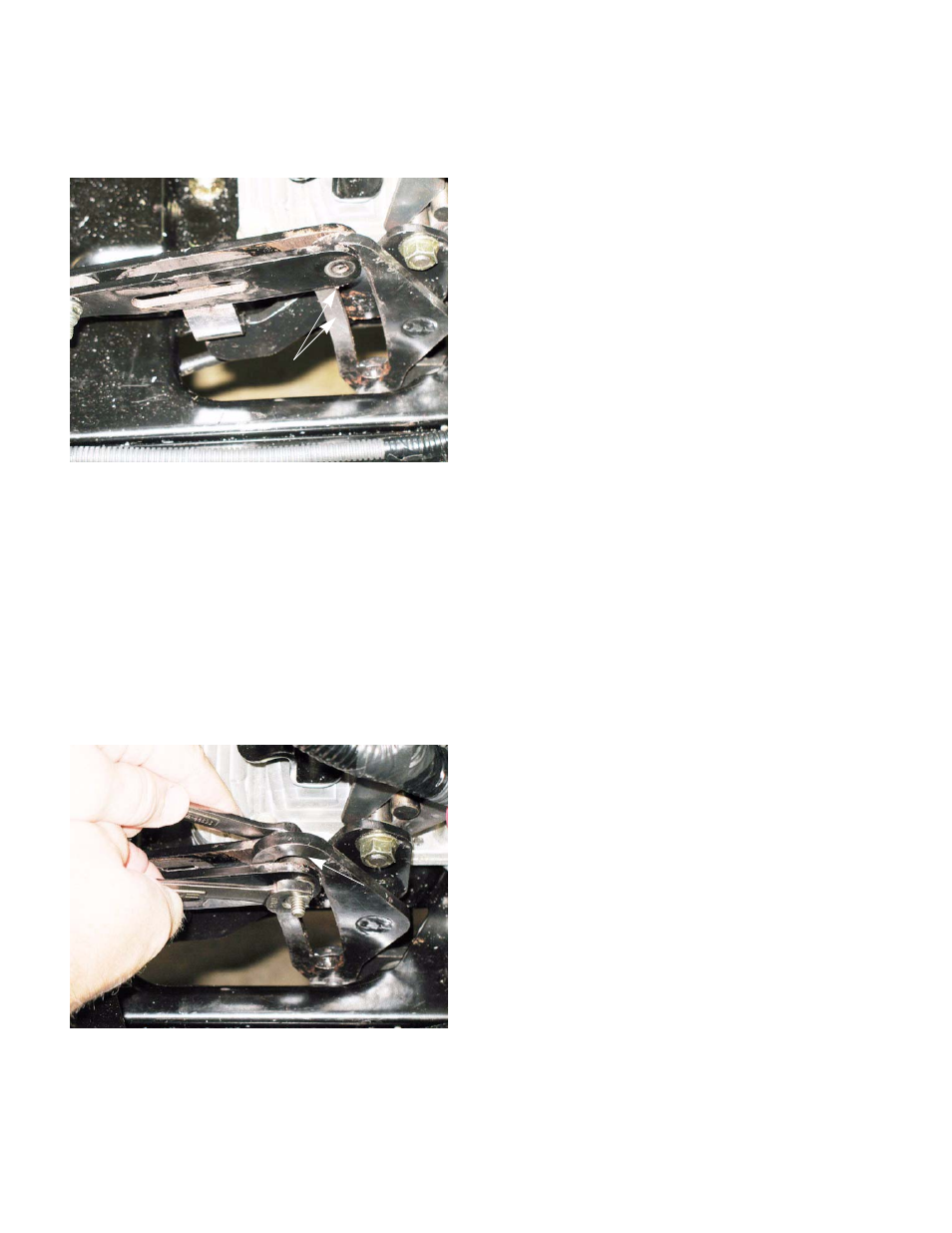

Figure 6A.28
Apply never seize
Figure 6A.29
Roller
