STEERING-HYDROGEAR
61
9. Separate the speed cam from the output bevel
gear assembly by removing the small snap ring
from the speed cam shaft. See Figure 6A.37.
10. Separate the output bevel gear assembly by
removing the snap ring. See Figure 6A.38.

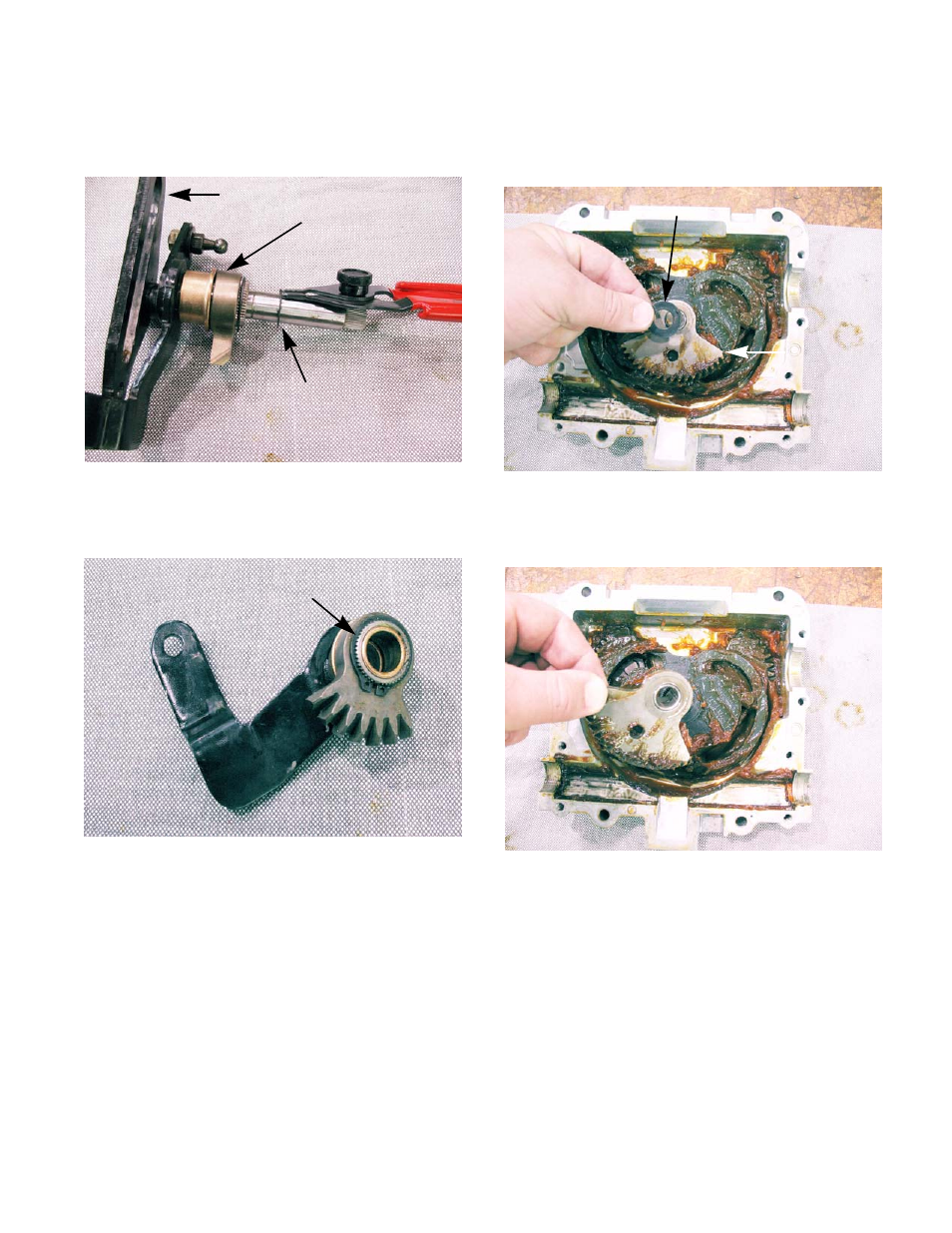

Figure 6A.37
Speed cam
Output bevel gear assembly
Small snap ring
Figure 6A.38
Remove this snap ring
11. Remove the washer from the input sector gear.
See Figure 6A.39.
NOTE: The 618-04430 gear boxes only
12. Remove the input sector gear.
See Figure 6A.40.
Figure 6A.39
Remove the washer
Input sector
gear
Figure 6A.40
