DRIVE SYSTEM-IVT
43
4c. Rotate the reverse drive pedal shaft out of
the reverse pedal support.
See Figure 5B.45
5. Disconnect the right side brake link from the
brake pedal shaft by removing the cotter pin.
See Figure 5B.46

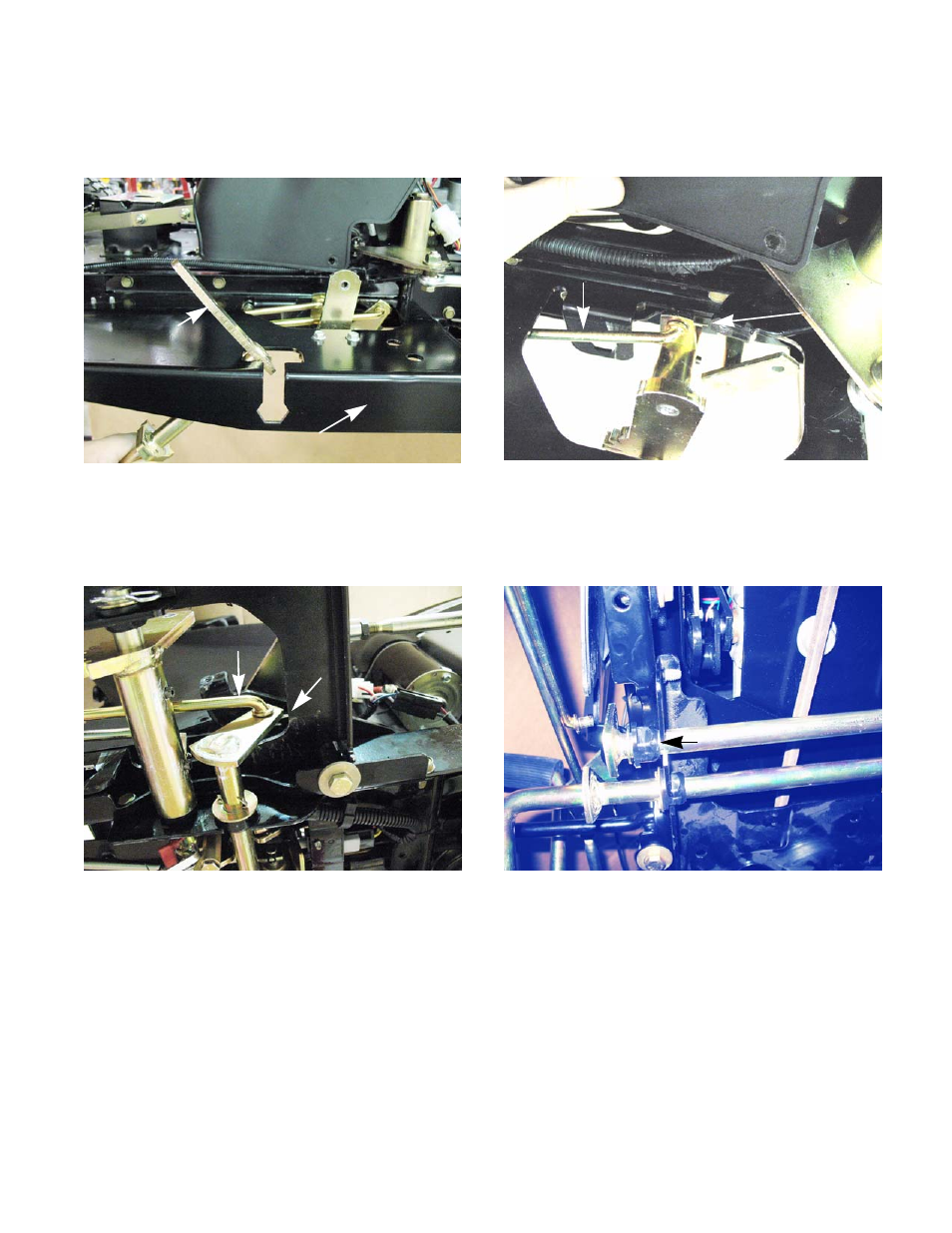

Figure 5B.45
Reverse pedal support
reverse drive
pedal shaft
Figure 5B.46
Brake link Cotter
pin
6. Disconnect both brake release rods from the
main drive pedal shaft by removing the cotter
pins. See Figure 5B.47
7. Remove the cotter pin and the split hex bushing
on the left side of the main drive pedal shaft.
See Figure 5B.48
Figure 5B.47
Brake release rod
Cotter pin
Figure 5B.48
Split hex bushing
