DRIVE SYSTEM-IVT
36
3. Remove the cotter pin and washer from the fer-
rule. See Figure 5B.22
4. Slide the ferrule out of the idler bracket.
See Figure 5B.23
5. Adjust the ferrule so that it lines up with the rear
of the slot and slides in without pulling on the
spring.
6. Install the washer and a new cotter pin.
7. Re-attach the deck.
8. Test drive the tractor before returning to service.
Transmissions
To remove the transmission:
1. Remove the deck as described in chapter 8 Cut-
ting Decks and Lift Shaft.
2. Lift and safely support the rear of the tractor.
3. Remove the dash and fender by following the
steps described in Chapter 4: Body/Chassis.
4. Remove the rear wheels.
5. Remove the drive belt from the engine pulley
and the idler pulleys by following the procedures
described in the drive belt section of this chapter.
NOTE: The belt can stay on the transmission
pulley while the transmission is removed.
6. Unhook the by-pass rod spring on both sides of
the transmission. See Figure 5B.24
7. Disconnect the brake rods by following the steps
described in Chapter 3: Brakes.
8. Disconnect the drive control links:

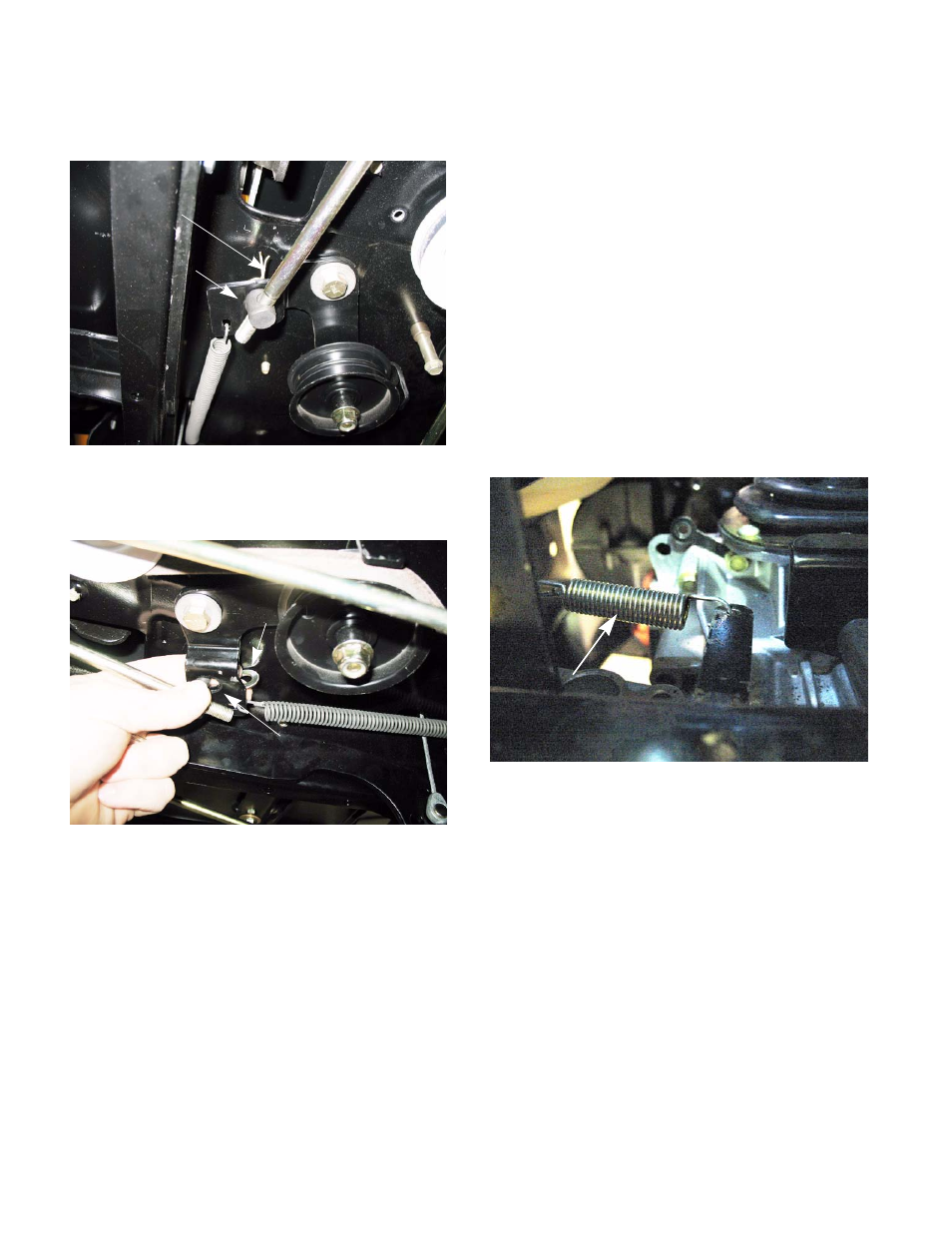

Figure 5B.22
Ferrule
Cotter pin
Figure 5B.23
Washer
Slot
Figure 5B.24
By-pass rod spring
