BODY/CHASSIS

18

Bumper

I-series tractors come equipped with a fast attach

bumper. To remove the bumper:

1.

Remove the two screws, one on each side, that
secures the bumper bracket. See Figure 4.5.

2.

Pull the bumper straight forward, sliding the
bumper off of the shoulder bolts. See Figure 4.6.

3.

Install the bumper following the above steps in
reverse order.

Dash Removal

The dash for the I-series is easy to remove. There

are a few repair procedures, such as the cam angle
adjustment or replacing the steering gearbox, that
require the dash to be removed. The steps to remove it
are as follows:

1.

Remove the steering wheel:

1a. Remove the center cover. See Figure 4.7.

1b. Remove the bolt with a 1/2” wrench.

See Figure 4.8.

NOTE: There is no puller needed for the steer-
ing wheel. Once the bolt is removed it will lift off
of the steering shaft.

NOTE: When replacing the steering wheel, lock
the steering gear box in neutral as described in
steering chapters (6A or 6B). This will make it
easier to center the steering wheel.

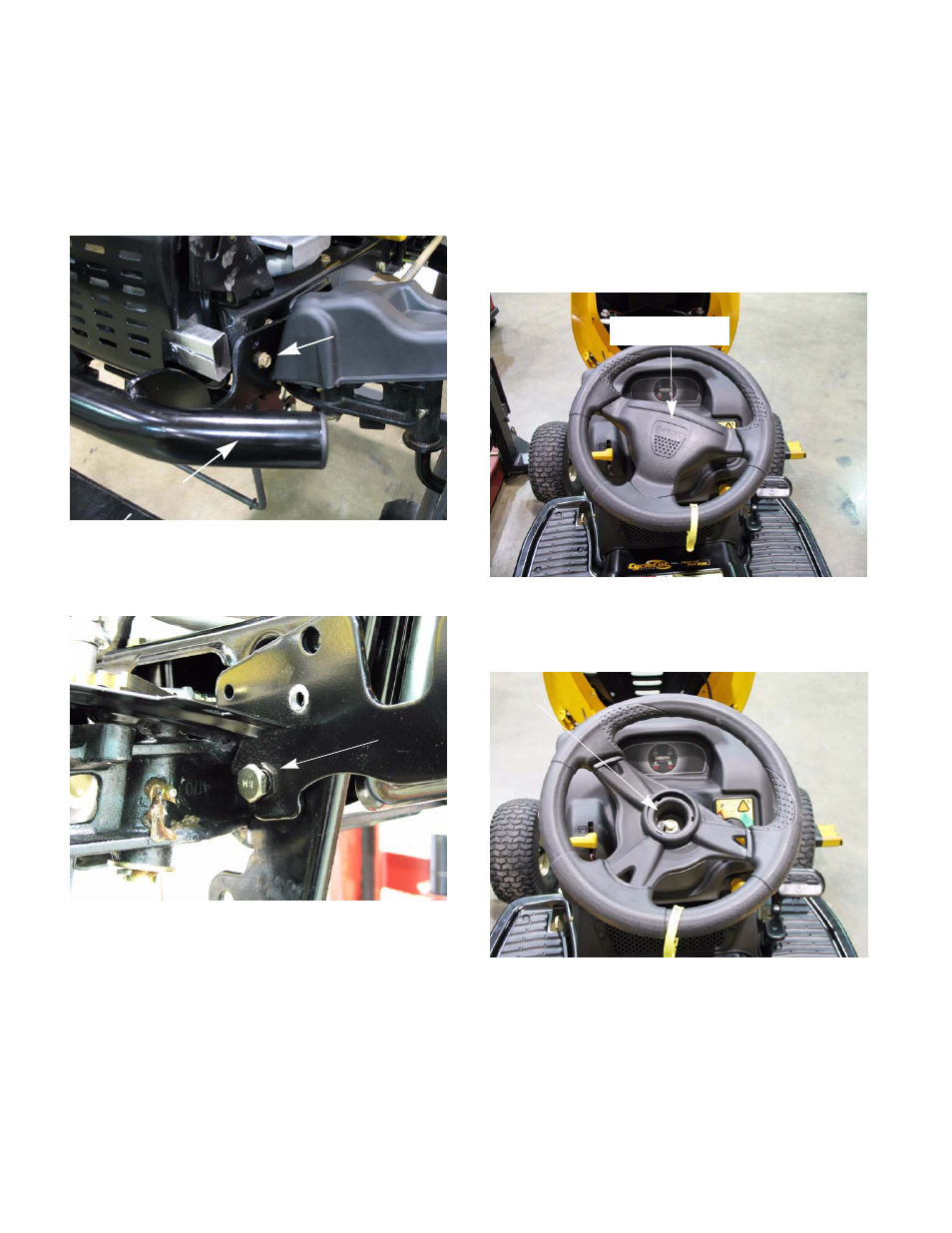

Figure 4.5

Bumper

Remove screw

Figure 4.6

Shoulder bolt

Figure 4.7

Center cover

Figure 4.8

Remove

bolt
