Commissioning
Operating Manual PNOZ s30
1001715-EN-13
35
Encoder types:
} Configuration: TTL differential Z Freq. Ini pnp
– TTL differential (A,/A,B,/B) + Ini pnp (Z)
– TTL differential (A,/A,B,/B) + HTL differential (A as Z)
– TTL differential (A,/A,B,/B) + HTL single ended (A as Z)
} Configuration: HTL differential Z Freq. Ini pnp
– HTL differential (A,/A,B,/B) + Ini pnp (Z)
– HTL differential (A,/A,B,/B) + HTL differential (A as Z)
– HTL differential (A,/A,B,/B) + HTL single ended (A as Z)
} Configuration: sin/cos 1 Vss Z Freq. Ini pnp
– sin/cos 1 Vss (A,/A,B,/B) + Ini pnp (Z)
– sin/cos 1 Vss (A,/A,B,/B) + HTL differential (A as Z)
– sin/cos 1 Vss (A,/A,B,/B) + HTL single ended (A as Z)
} Configuration: Hiperface Z Freq. Ini pnp
– Hiperface (A,/A,B,/B) + Ini pnp (Z)
– Hiperface (A,/A,B,/B) + HTL differential (A as Z)
– Hiperface (A,/A,B,/B) + HTL single ended (A as Z)

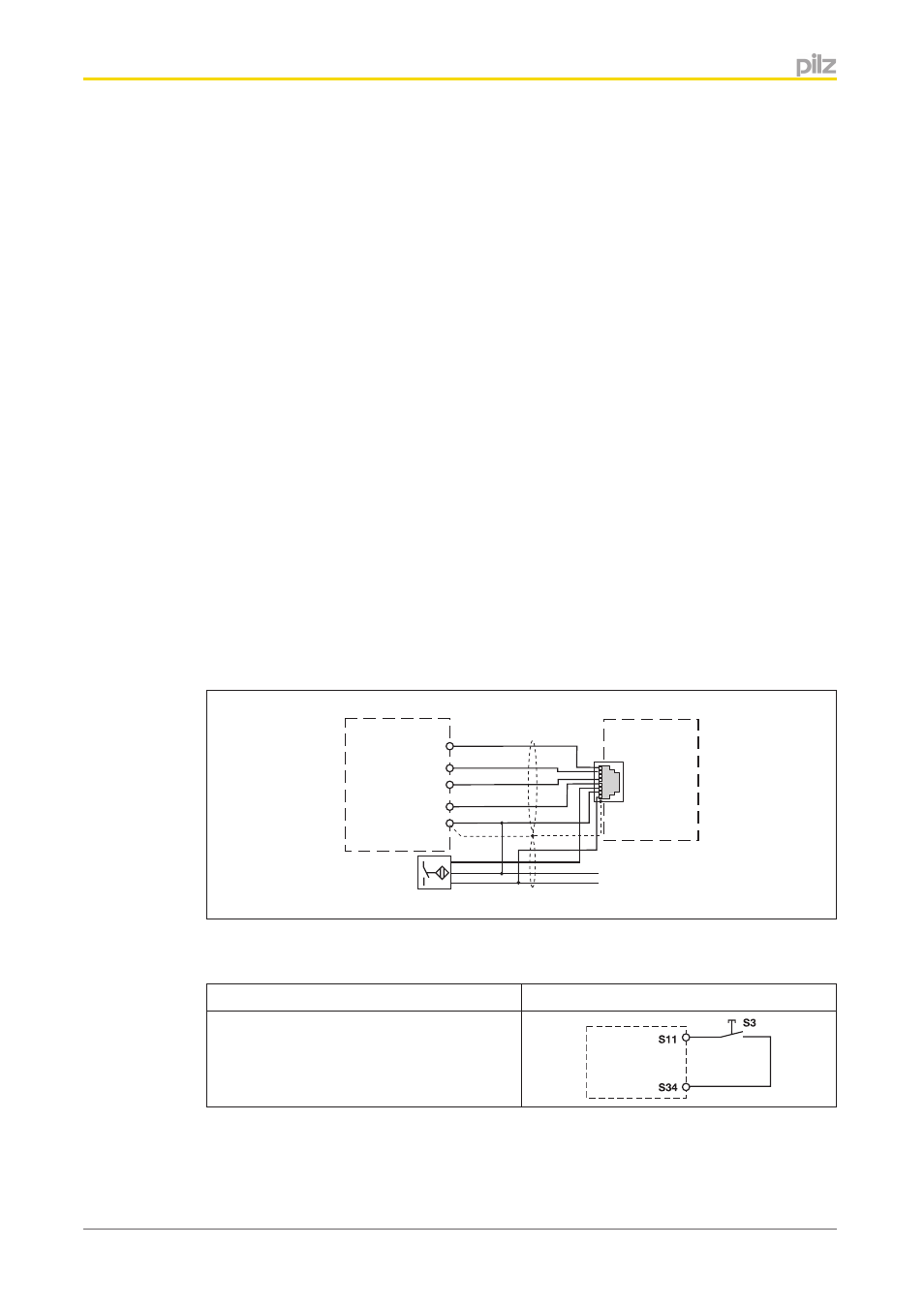

Please note:
Track /Z must remain free!!
24 V
0 V
X6
PNOZ s30
2
4
5
7
8
A
/A
B
/B
GND
Input Device
3
1
Reset circuit
Automatic reset Monitored reset
Automatic reset must only be configured
No wiring necessary!
6.1.7
