Function description

Operating Manual PNOZ s30
1001715-EN-13

Function description

Introduction

Proximity switches or rotary encoders record measured values, which are evaluated in the
speed monitor

PNOZ s30. There are 9 monitoring functions (F1 ... F9), which are per-

formed simultaneously.
Up to 16 different parameter sets (P0 ... P15) for the monitoring functions can be selected
via the select inputs.
Configuration of the monitoring functions is menu-driven, using a rotary knob. The outputs
switch depending on the configuration.
An interface is available to connect a contact expansion module PNOZsigma, enabling the
number of outputs to be expanded.
The relay conforms to the following safety criteria:

}

The circuit is redundant with built-in self-monitoring.

}

The safety function remains effective in the case of a component failure.

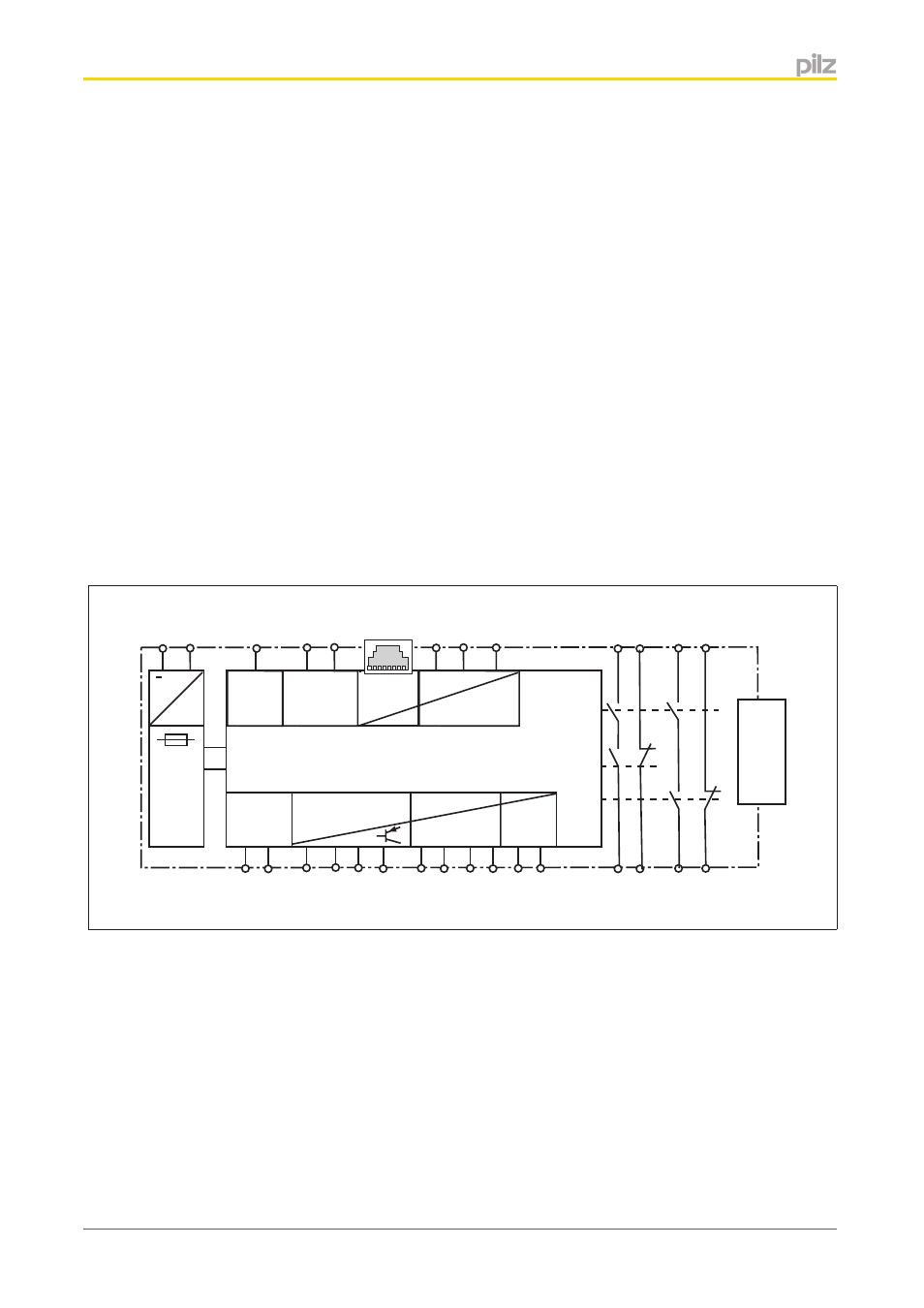

Block diagram

A1 A2

Y10 Y11 Y12 Y13 Y30 Y31

Power

Reset/

Start

S34

Rel. 1

13 11

Feed-

back

Y32 Y33 Y34 Y35

Initiator

Input

In1 In2 GND

24 V 0 V

S11 S21

Inputs (SEL)

Select

Interface

Extended Relais

24 V ext

0 V ext

RJ45

Y1 Y2

Rel. 2

Relay

Control

4.1

4.2
