Function description
Operating Manual PNOZ s30
1001715-EN-13
28

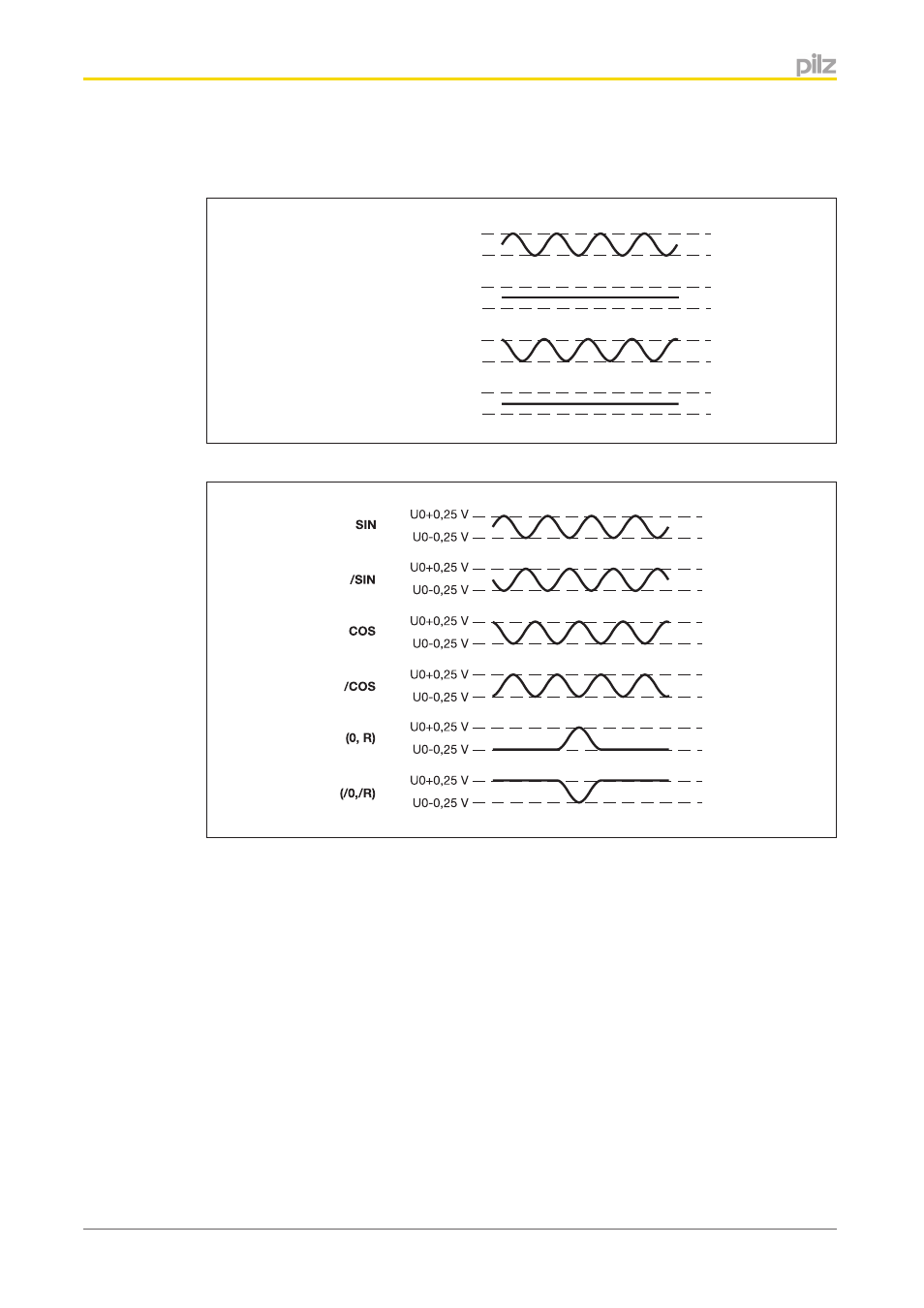

Output signals Sin/Cos (1 Vss)
} Single ended with reference track (e.g. Hiperface ®)
REFSIN +0,5 V
SIN
2,5 V
COS
REFSIN
REFCOS
REFSIN -0,5 V
REFCOS +0,5 V
REFCOS -0,5 V
2,5 V
} Differential with/without Z index (e.g. Heidenhain 1 Vss)
Adapter for incremental encoders
The adapter records the data between the incremental encoder and the drive and makes it
available to the speed monitor via the RJ45 socket.
Pilz supplies complete adapters as well as ready-made cable with RJ45 connector, which
can be used when making your own adapter. The range of products in this area is constant-
ly being expanded. Please contact us about the range of adapters that is currently availa-
ble. 4.5.2.2
