Page 34
Commissioning
Operating Manual PNOZ s30
1001715-EN-13
34
Input Device
A
/A
B
/B
X6
PNOZ s30
Drive
Adapter
GND
GND
1
8

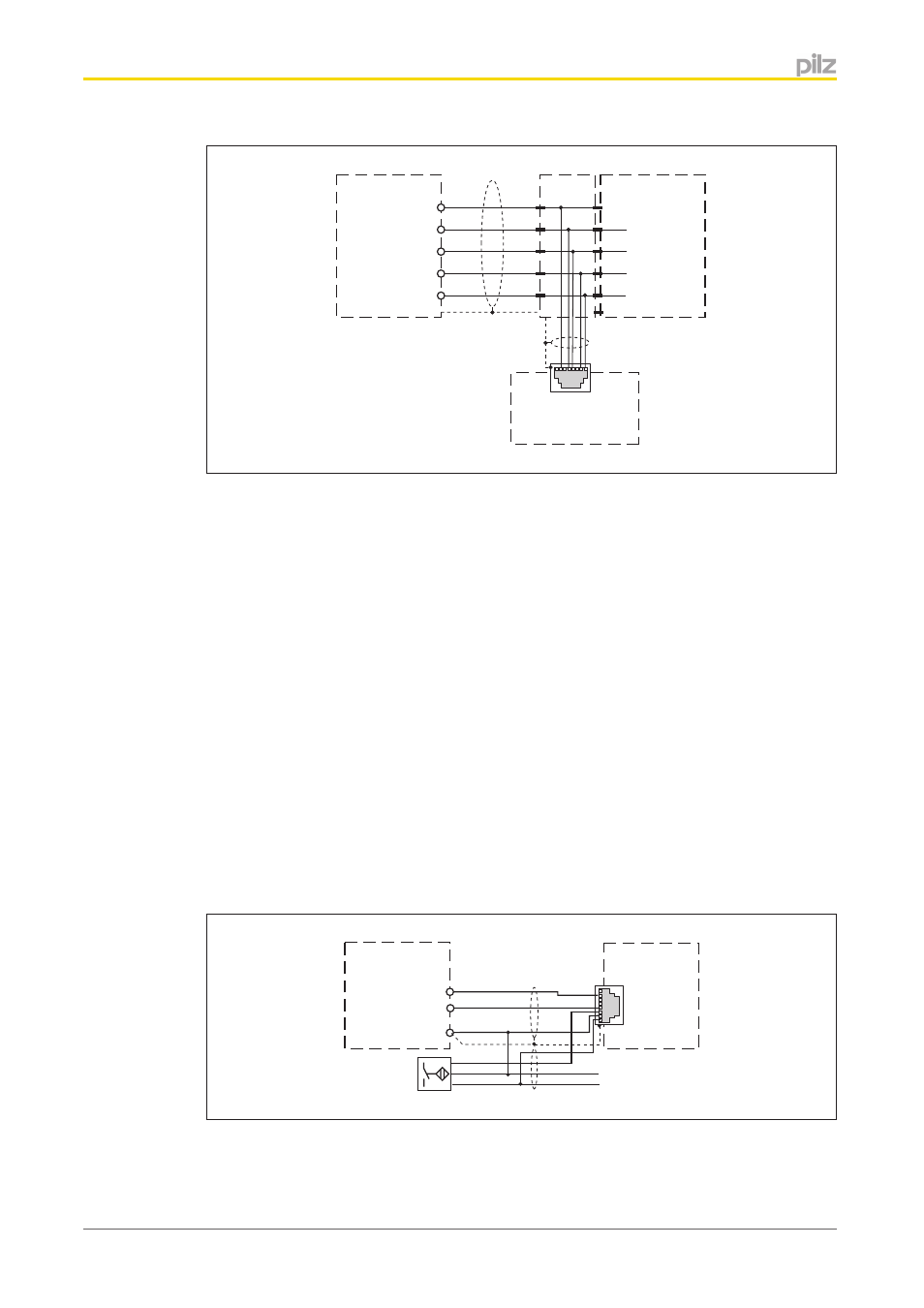

Connection of proximity switch and rotary encoder
When connecting the rotary encoders and proximity switches, please refer to the chapter
entitled "EMC-compliant wiring".
Encoder types:
}
Configuration: HTL single Z Freq. Ini pnp
– HTL single ended (A,B) + Ini pnp (Z)
– HTL single ended (A,B) + HTL differential (A as Z)
– HTL single ended (A,B) + HTL single ended (A as Z)
}
Configuration: TTL single Z Freq. Ini pnp
– TTL single ended (A,B) + Ini pnp (Z)
– TTL single ended (A,B) + HTL differential (A as Z)
– TTL single ended (A,B) + HTL single ended (A as Z)
Please note:
Tracks /A, /B and /Z must remain free.
24 V
0 V
X6
PNOZ s30
2
4
7
A
B
GND
Input Device
3
1
6.1.6
