Function description
Operating Manual PNOZ s30
1001715-EN-13
15
Speed range
With range monitoring, the output switches off if the rotational speed (velocity, frequency) is
outside the configured range.

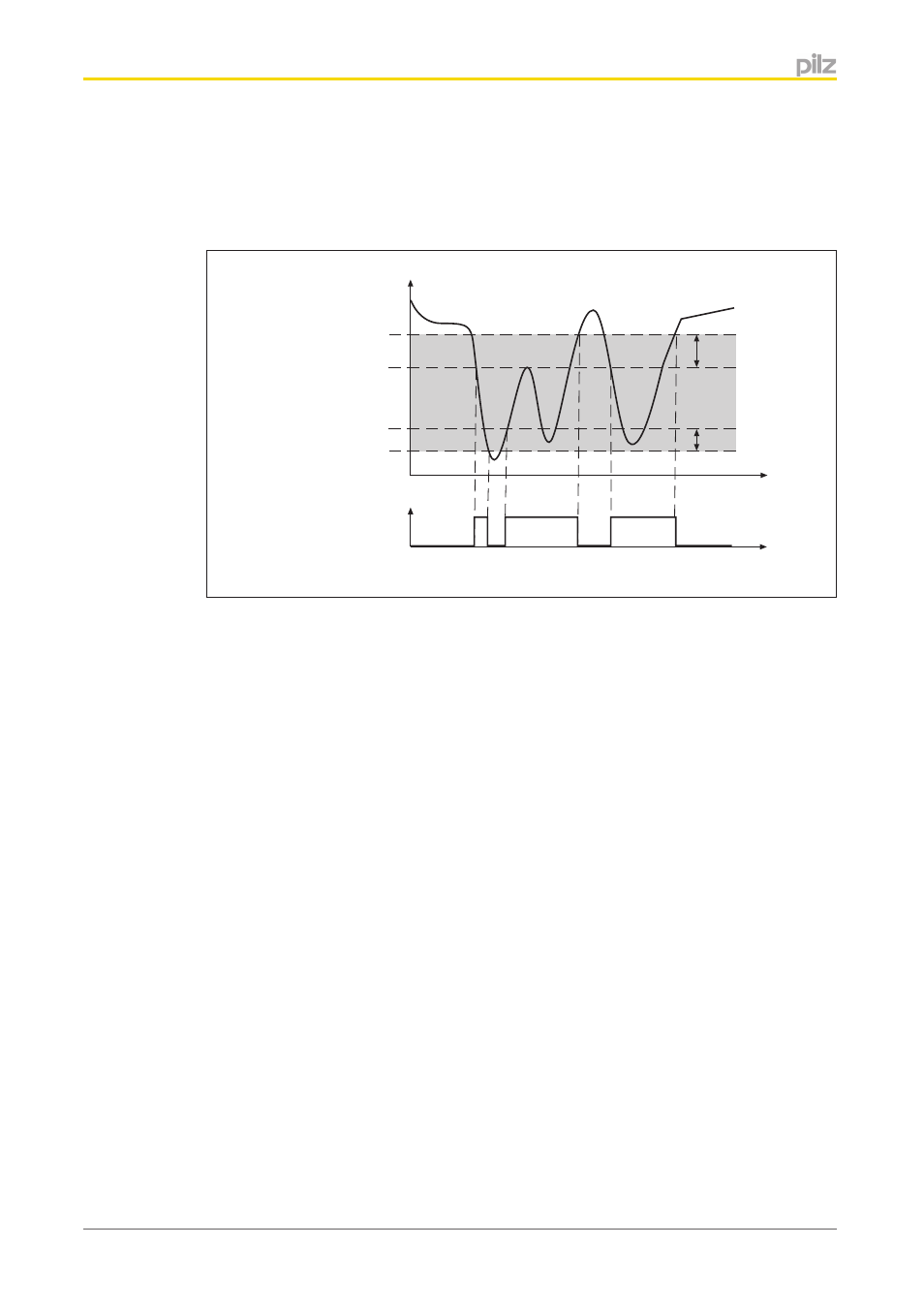

Timing diagram for speed range monitoring:
v
t
Hys. F3
vmax (F3)
vmax (F3) - Hys. F3
vmax (F2) + Hys. F2
Hys. F2
F2-F3
t
vmax (F2)
0
Position
Position monitoring is activated via a rising edge at the start input. The current position is
adopted as a reference position in the middle of the position window (configured window
width) and the assigned output is switched on.
The output will stay switched on provided the current position is within the position window.
