6 commissioning, 1 wiring, 1 general wiring guidelines – Pilz PNOZ s30 24-240VACDC 2 n/o 2 n/c User Manual

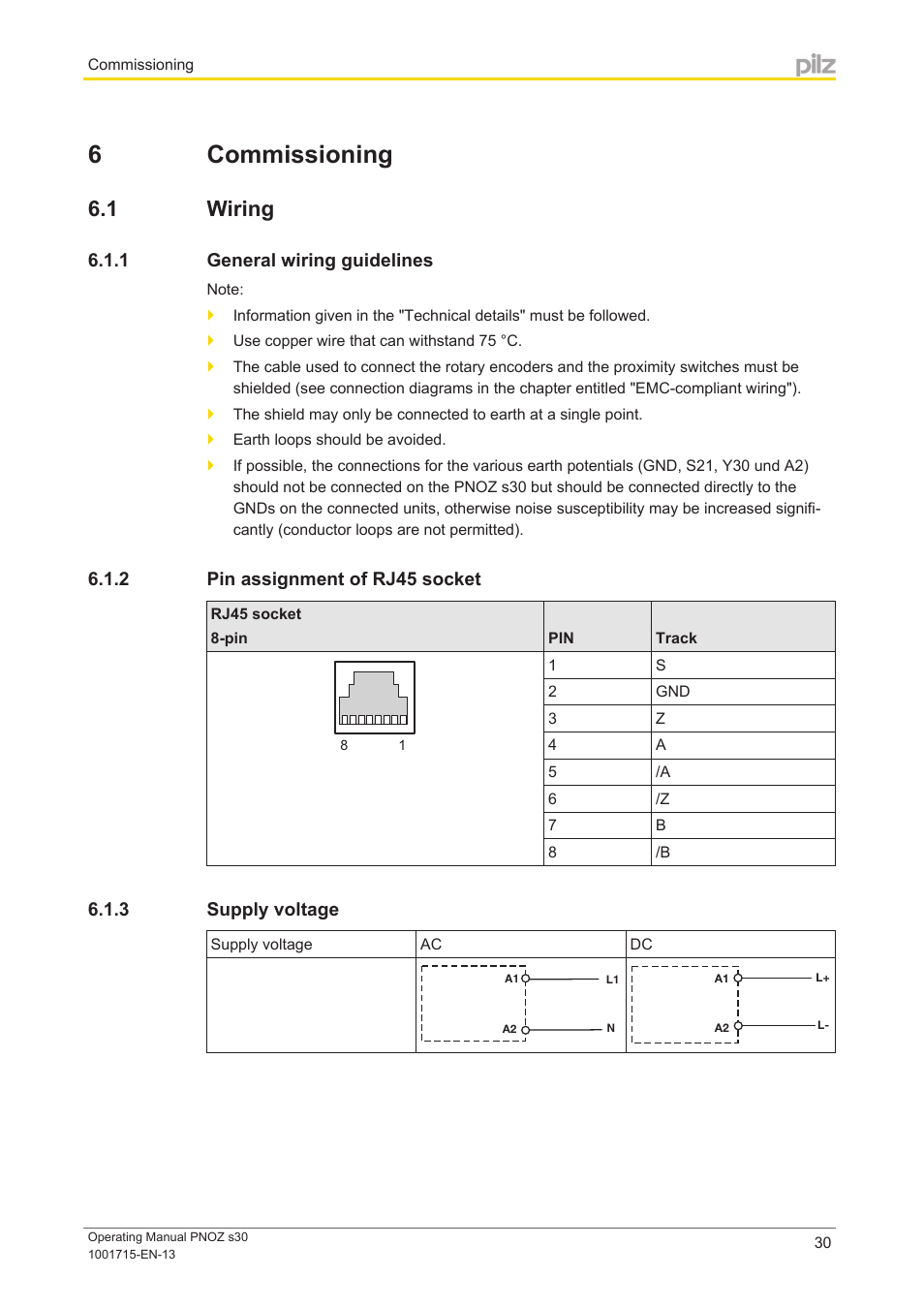

Page 30: 2 pin assignment of rj45 socket, 3 supply voltage, Section 6, Commissioning, Wiring, General wiring guidelines, Pin assignment of rj45 socket
