45

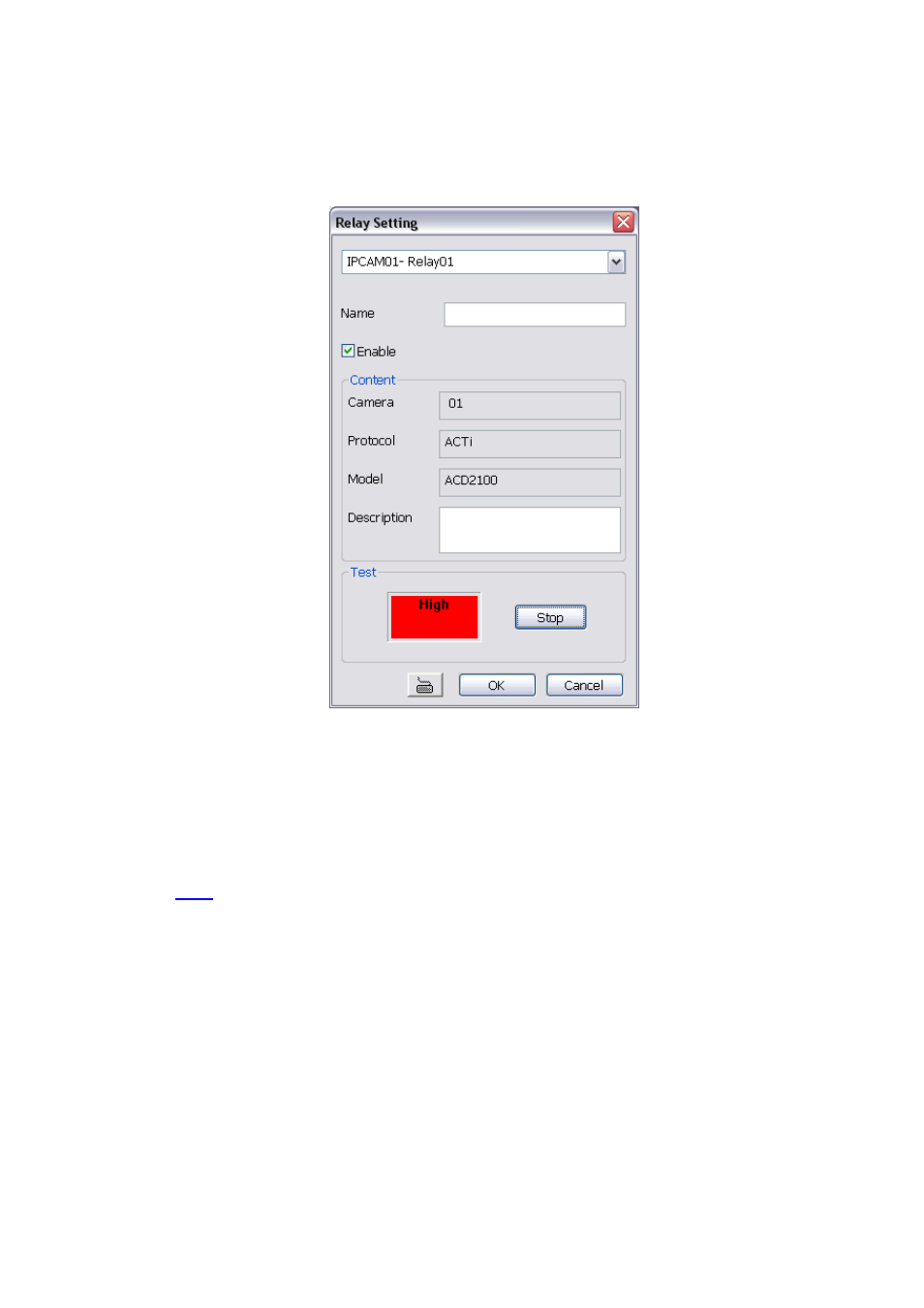

9 Relay Setting
To setup relay device that is embedded on the camera.
1. Click the drop-down list and select the relay ID number.
2. Enter relay name in Name column
3. The DVR system automatically detects the camera and input relates information. In the Content
section, enter relay description.
4. In the test section, click Test to trigger relay. Red is high and Green is low.
5. Click OK to exit and accept the setting and Cancel to exit without saving the setting.
- Direct Link by IE
Using IE browser to connect to camera and view the real time video. Click Direct Link by IE，the IE
browser will pop up and connect to camera. The video viewing interface will be varied by different brand
of camera.
(8) Camera
List all available cameras for grouping. User can drag the camera to video screen in Camera Setting window to
view camera live video.
(9) Group
User can create several camera groups for managing purpose. All cameras can be group into several different
groups (see also 3.2.3 ).
