I. Introduction
With the AVer
TM
Data Box, user can integrate the POS equipment with the AVer
TM
NV/SA/EH/IWH
series DVR. It transmits the transaction data on both POS printer and surveillance system. Therefore,
the transaction data can be overplayed on the surveillance video, then you can monitor, record, and
keep track of the items that were sold.
II. Package Contents
 AVer TM
Data Box  DB25 Parallel cable (2m)
 Power Adapter DC 5V  DB9 Male to DB9 Male
(Gender changer)
 DB9 RS-232 cable (2m)  DB9 Female to DB9 Female
(Gender changer)
 DB9 RS-232 cable (3m)  Quick User Guide

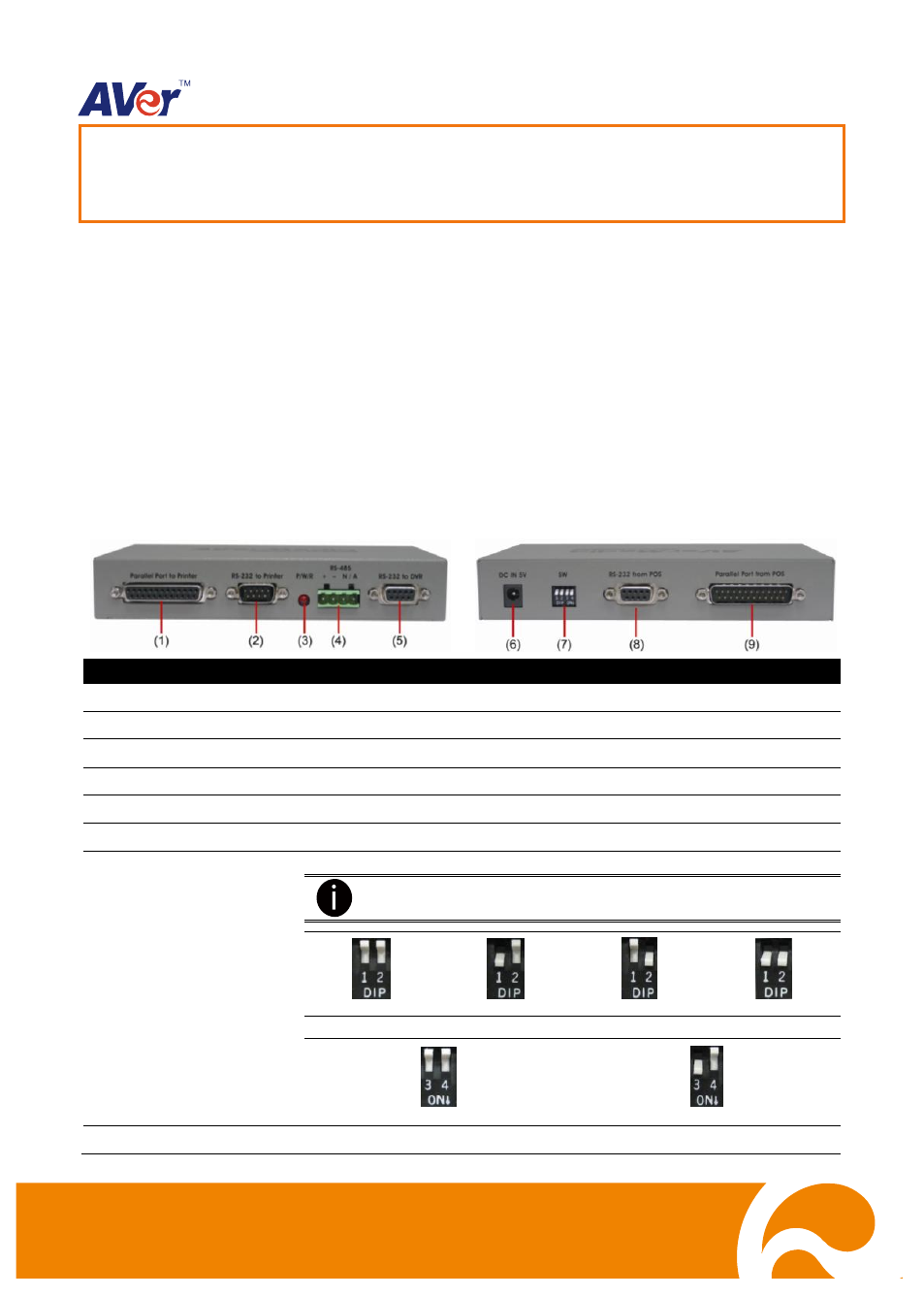

III. Data Box Parts
Name Description
(1) Parallel Port to Printer Connect to parallel POS printer port.
(2) RS-232 to Printer Connect to serial POS printer port.
(3) P/W/R Light when the power is connected
(4) RS-485 Connect to the RS-485 to RS-232 converter.
(5) RS-232 to DVR Connect to the COM port of the AVer
TM
DVR.
(6) DC IN 5V Connect the power adapter into this port.
(7) SW Use the dip switch no.1 & 2 to set the baud-rate setting.
If you use parallel connection, it is not necessary to set the
baud-rate.
9600bps 19200bps 57600bps 115200bps
Use the dip switch no. 3 to set the type of connection.
Serial Connection Parallel Connection
(8) RS-232 from POS Connect to the serial port of the POS system.
Data Box
Quick User Guide
