Backbone-to-edge routing with virtual fabrics, Figure 76, Ex_ports in a base – Dell POWEREDGE M1000E User Manual

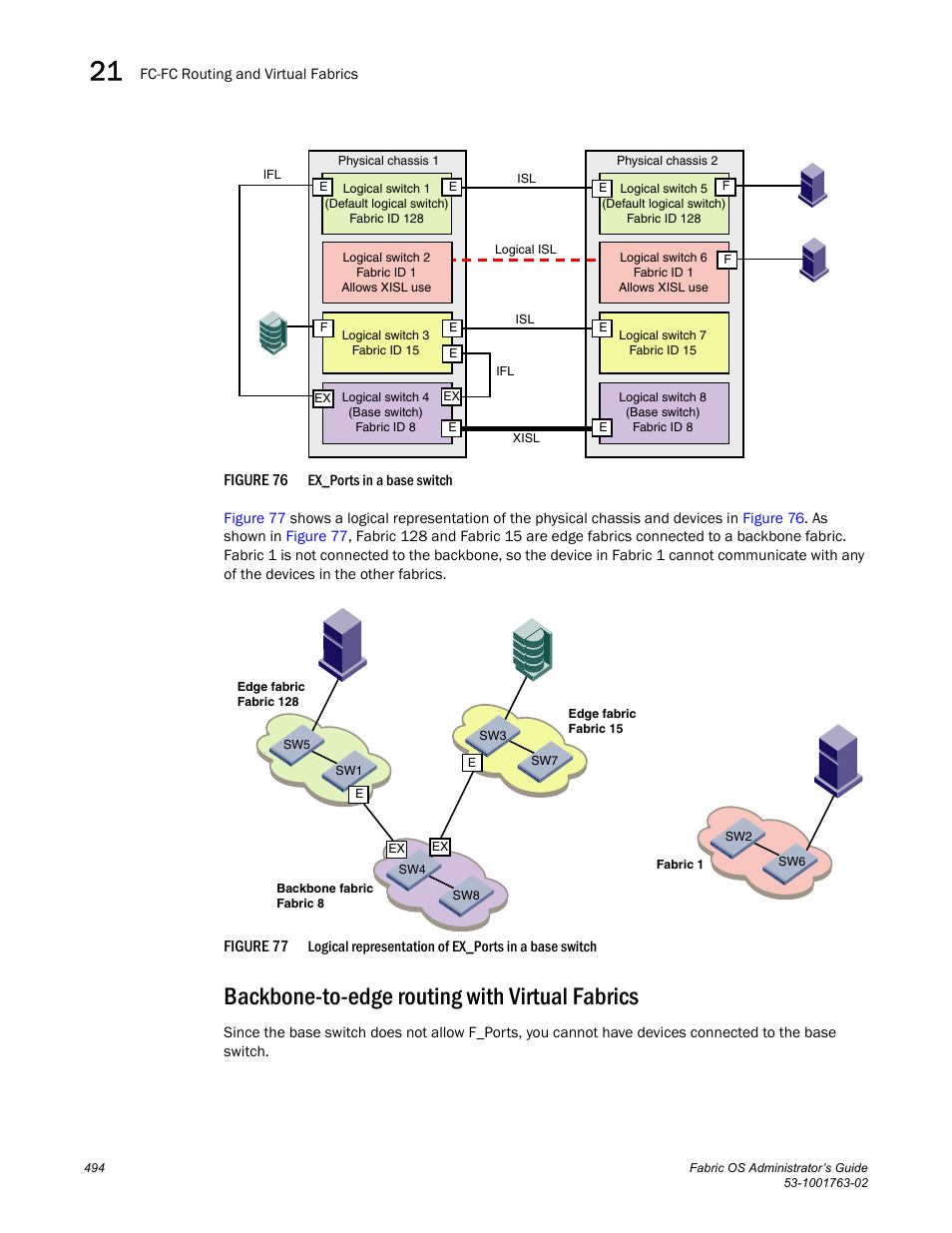

Page 534: Figure 77, Logical repres, Backbone-to-edge routing, With virtual fabrics
