5 Select Color Regi Chart.
6 Select Print.
The color registration chart is printed.
When Using the Tool Box
1 Click Start → All Programs → Dell Printers → Dell C3765dnf Multifunction Color Laser Printer → Tool Box.
NOTE: For details about starting the Tool Box, see "Starting the Tool Box."
The Tool Box opens.
2 Click the Printer Maintenance tab.
3 Select Service Tools from the list at the left side of the page.
The Service Tools page is displayed.
4 Click Start next to Color Regi Chart under Color Registration Adjustments.
The color registration chart is printed.
Determining Values
On the color registration chart, there are two types of charts: Chart 1 (fast scan) and Chart 2 (slow scan).
The Chart 1 is used to adjust the color registration for the fast scan direction, which is vertical to paper feed
direction. The Chart 2 is used to adjust the color registration for the slow scan direction, which is horizontal to paper
feed direction.
The following sections explain how to determine the adjustment values for the fast scan and the slow scan using
Chart 1 and Chart 2.

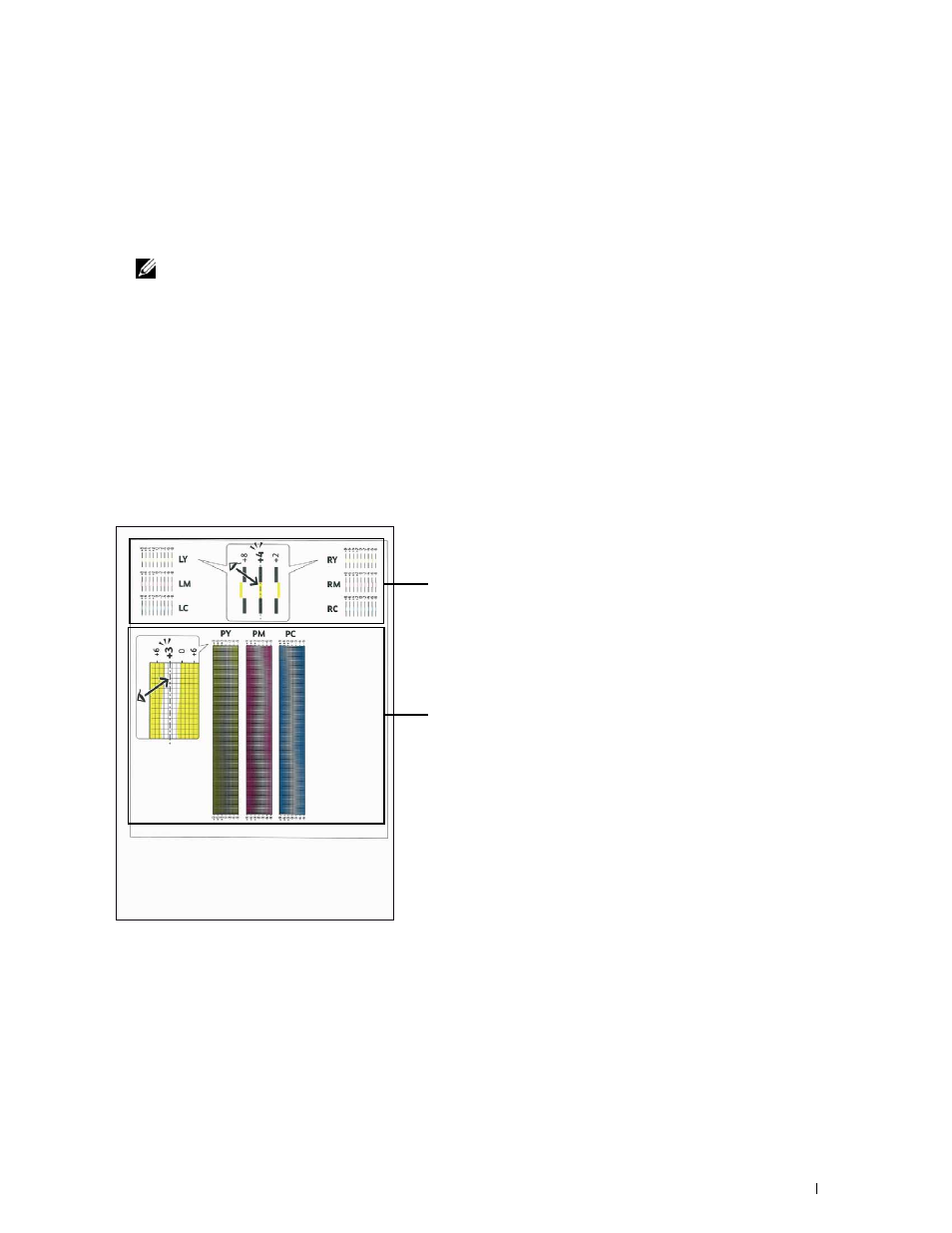

Chart 1 (fast scan)
Chart 2 (slow scan)
