Locking Clasp

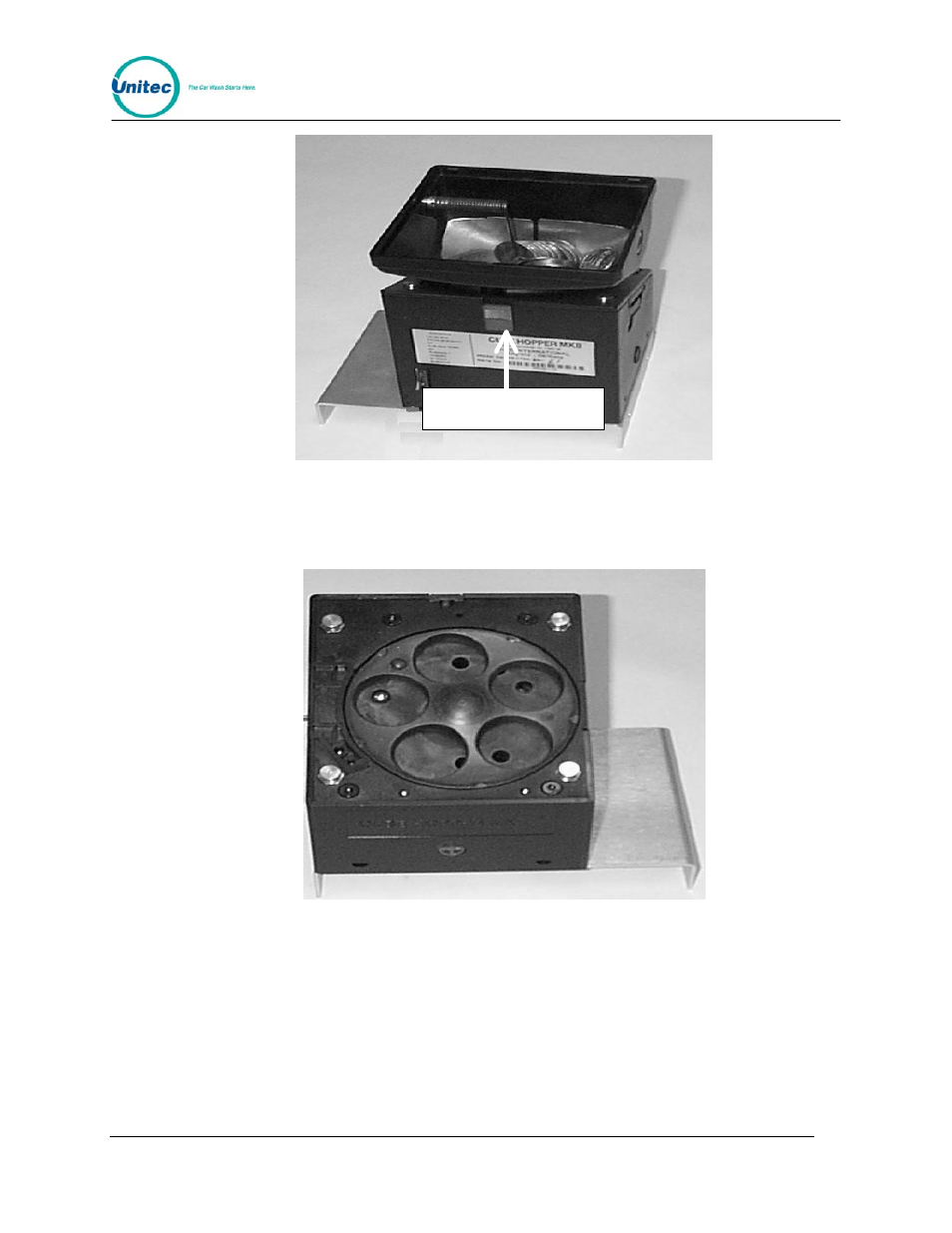

Figure 16. Hopper View - Removing the Hopper - Cube Top
6.
Slide the top piece of the black plastic hopper up and off to expose the wheel.
Figure 17. Hopper View - Top Removed
7.
Remove the dispensing wheel by grasping the coin openings and lifting up.
