Page 164: Select7.4.1.2 select, Connections 7.4.1.3 connections, Format7.4.1.4 format
• Customize the order of the exported data.
• Export data from the Vision tools at different times during the inspection.
• Customize the “Start Strings” control characters to unique external devices.
Note: The Test tool can have the Communication tool as one of its inputs. Therefore, if a Test
tool is added after the Communication tool, a discrete output can be activated:
• If the TCP/IP connection is lost.
• If the external device fails to acknowledge it received data.
This output could contribute to an inspection Pass/Fail if it is an input to a Test tool. A Communication tool
without a Test tool will not contribute to the inspection Pass/Fail.

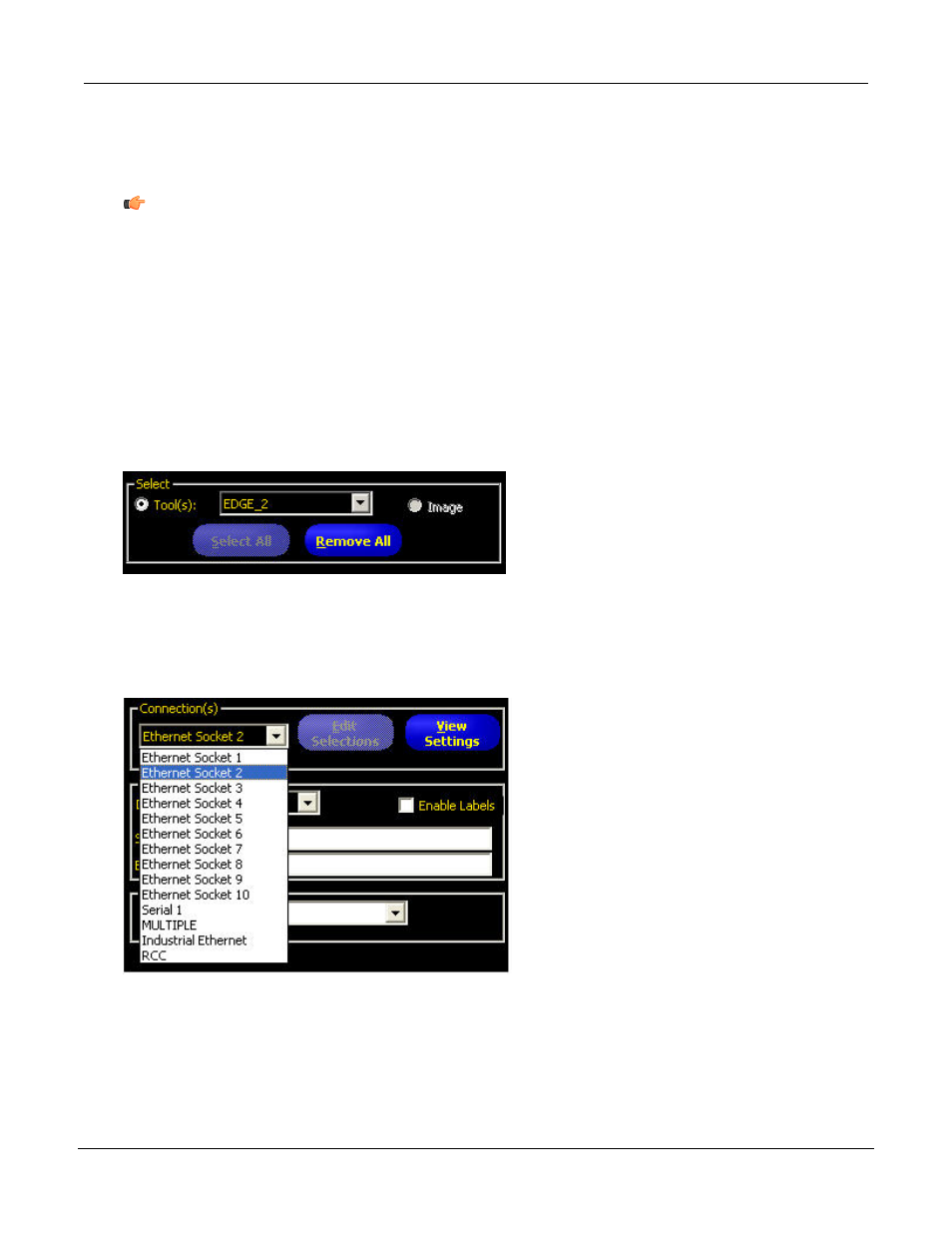

Select
This field provides a drop-down list from which to select tools; select the results to export from the selected
tool’s tab that appears in the configuration window.
Connections
This field provides a drop-down list from which to select the communication connection(s) to export the data.
Format
This field provides options for formatting the ASCII string of data that will be exported.
