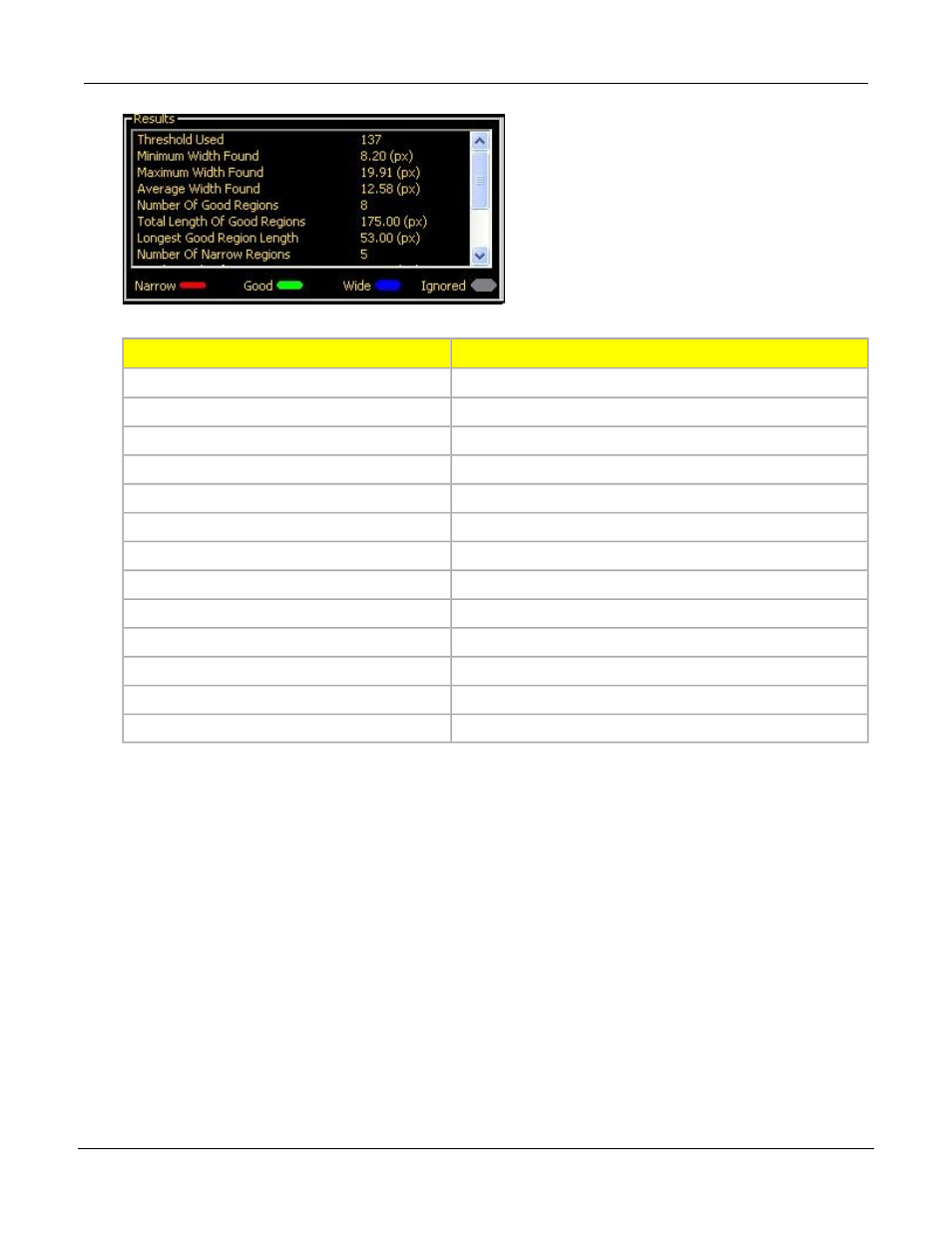

Example Value Result
137 Threshold used
8.20 (px) Minimum width found
19.91 (px) Maximum width found
12.58 (px) Average width found
8 Number of good regions
175.00 (px) Total length of good regions
53.00 (px) Longest good region length
5 Number of narrow regions
72.00 (px) Total length of narrow regions
20.00 (px) Longest narrow region length
3 Number of wide regions
87.00 (px) Total length of wide regions
40.00 (px) Longest wide region length
7.3.5 Optical Character Recognition (OCR) Tool
Optical character recognition (OCR) is the electronic interpretation of printed text that has been captured by
a Vision Sensor. The OCR tool in the PresencePLUS software is used to train character patterns and their
variations into the Vision Sensor's font library so that the Vision Sensor can recognize character patterns on
labels and packages. Each character pattern is associated with a character ID so that the Sensor is able to
identify character strings on a label or package. For example, you might train different fonts for the letter (S
or S) and use the keyboard to associate these variations with the character ID "S".
Usage
The OCR Vision Sensor tool can be used:
• to ensure that the correct lot or date code is printed on a label or package.
• to ensure that the right labels are placed on the appropriate packages.
• with the Barcode tool to match strings and/or substrings with the human readable text.
Fields
The following are fields on the OCR tool Input tab:
