5.4 761 Compact IC
IC Net 2.0 41

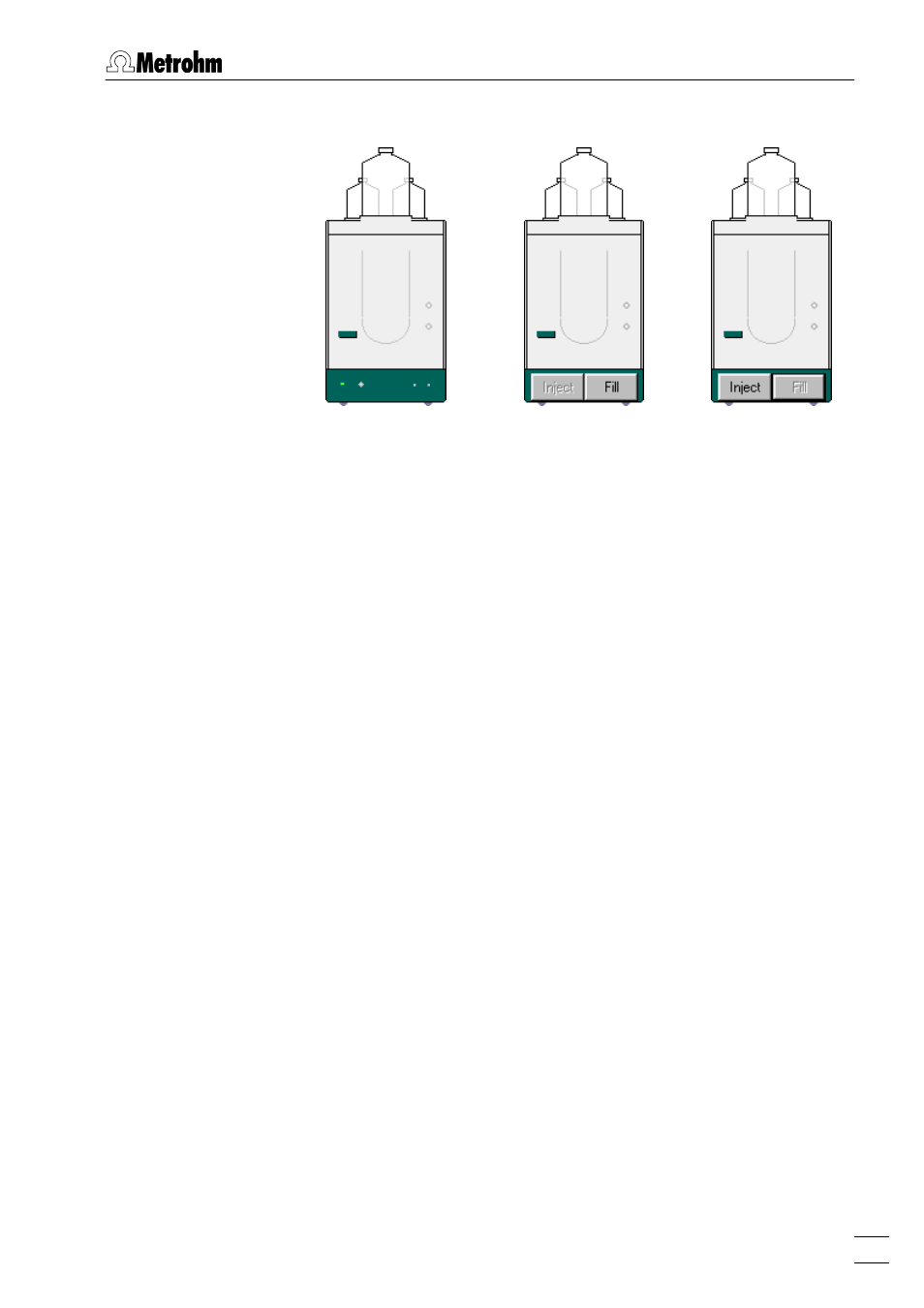

5.4.3 761 icon in the system window
System disconnected System connected System connected
Injection valve in Injection valve in
"INJECT" position "FILL" position
The 761 icon is available in the system window if a 761 Compact IC
has been installed with the Install existing devices option (see sec-
tion 6.1.3). If the system is connected, the 761 icon contains two
buttons for manual control of the injection valve at the 761
Compact IC:
Switch the injection valve to the "Inject" position.
Switch the injection valve to the "Fill" position.
If the system is connected and the 761 icon is clicked with the
right mouse button, the following menu appears:
Open
Open the
761 Compact IC
window for parameter
settings (this window can also be opened by
double-clicking the icon).
Hardware Open the hardware settings window.
Diagnostics Open the diagnostics window (for service per-
sonal only).
Unlink Delete the 761 icon from the system.
5.4.4 761 Compact IC window
761 icon / Open
The
761 Compact IC
window for parameter settings is opened by
selecting this menu option with the right mouse button or by
clicking the 761 icon on the toolbar. It consists of the five tabs
Control , Initial , Program , Configuration , and Links .
Control
The
Control
tab of the
761 Compact IC
window is only available for
a connected system. It allows manual control of the 761
Compact IC functions and setting of startup values to be sent to
the instrument.
