Connecting the Kinetix 5500 Drive System Chapter 5

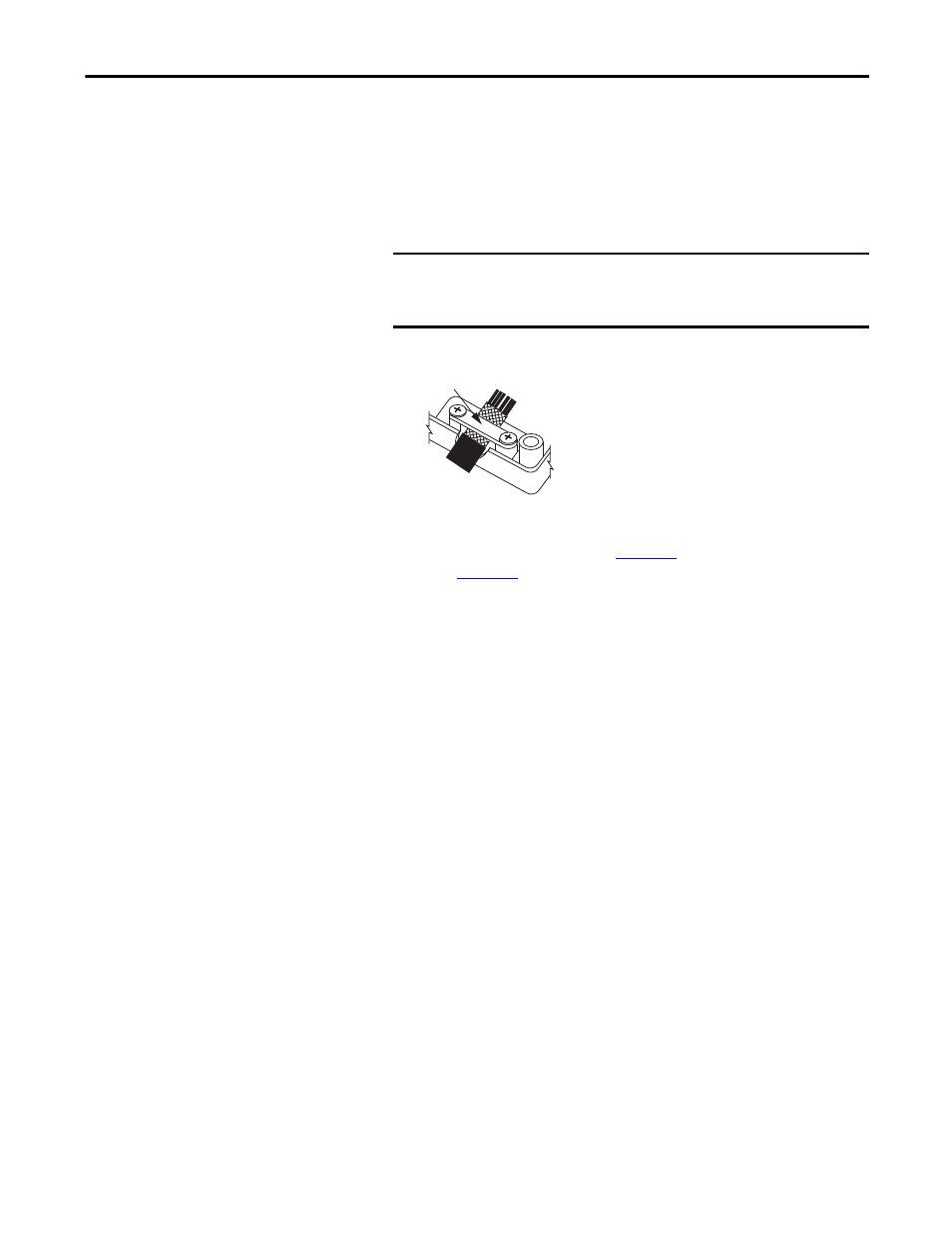

Apply the Converter Kit Shield Clamp
Follow these steps to apply the converter kit shield clamp.
1. Apply the shield clamp to the 12 mm (0.5 in.) of exposed cable shield to
achieve a high-frequency bond between the shield braid and clamp.
Apply 0.30 N•m (2.6 lb•in) torque to each screw.
2. Route and insert each wire to its assigned terminal.
Include a service loop, as shown in Figure 54 , and refer to the connector
pinout in Figure 53 .
3. Tighten each terminal screw.
Apply 0.22…0.25 N•m (1.9…2.2 lb•in) torque to each screw.
4. Gently pull on each wire to make sure it does not come out of its terminal;
reinsert and tighten any loose wires.
5. Attach the tie wrap for added stress relief.
IMPORTANT Cable preparation and positioning that provides a high-frequency
bond between the shield braid and clamp is required to optimize
system performance.
Shield Clamp
