Rockwell Automation Publication 2198-UM001D-EN-P - May 2014 21
Start Chapter 1
Ring Topology
In this example, the devices are connected by using ring topology. If only one
device in the ring is disconnected, the rest of the devices continue to
communicate. For ring topology to work correctly, a device level ring (DLR)
supervisor is required (for example, the Bulletin 1783 ETAP device). DLR is an
ODVA standard. For more information, refer to the EtherNet/IP Embedded
Switch Technology Application Guide, publication
ENET-AP005 .
Devices without dual ports, for example the display terminal, require a
1783-ETAP module to complete the network ring.

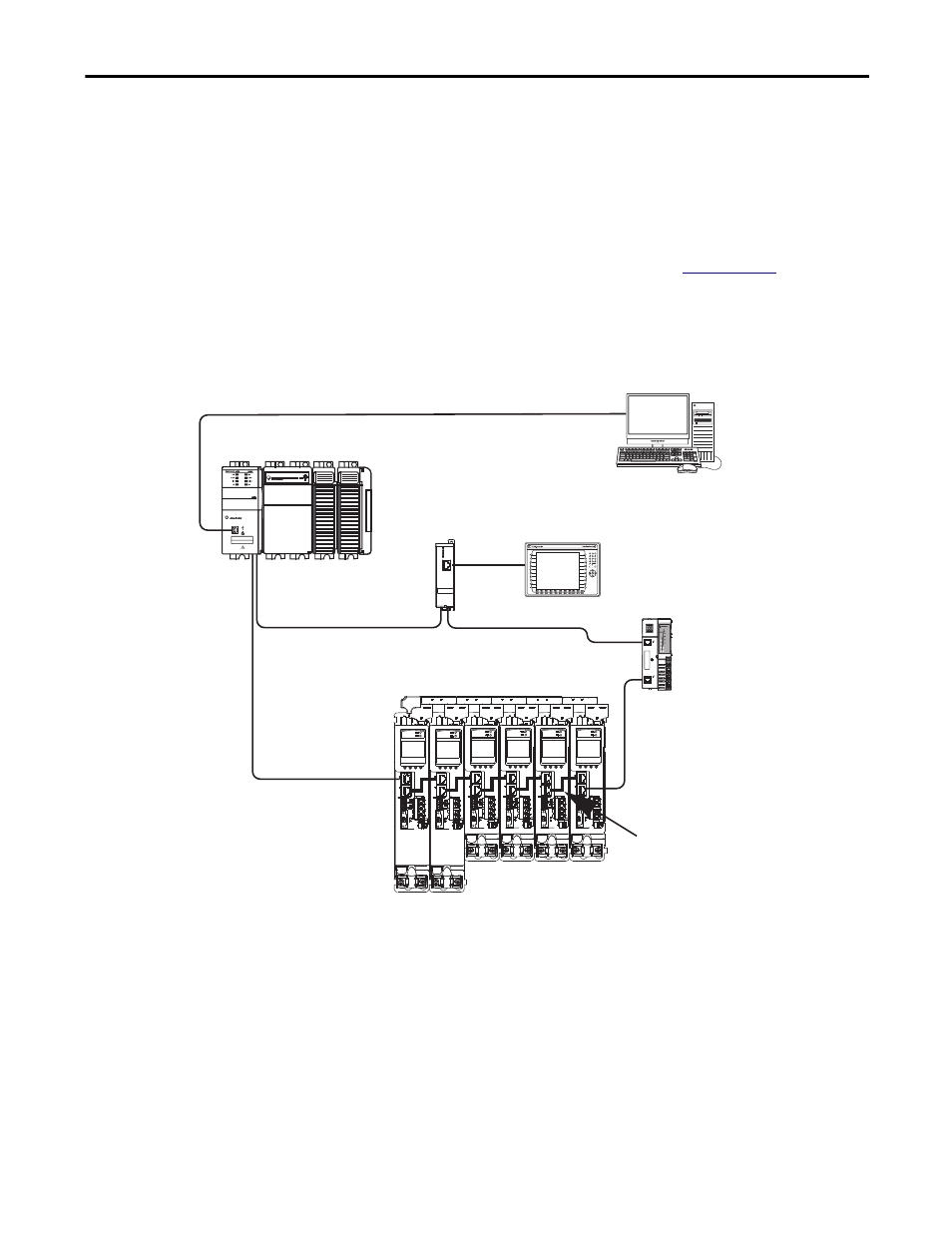

Figure 7 - Kinetix 5500 Ring Communication Installation
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
0 2 0 1734-AENTR
Module Status
Network
Activity
Network Status
Point Bus Status System Power Field Power
POINT I O
Link 1 Activity/ Status
Link 2 Activity/ Status
1734-AENTR POINT I/O
EtherNet/IP Adapter
CompactLogix Controller Programming Network
1783-ETAP
Module
1585J-M8CBJM-OM3
0.3 m (1.0 ft) Ethernet cable
for drive-to-drive connections.
PanelView Plus
Display Terminal
Kinetix 5500 Servo Drive System
CompactLogix 5370 Controller Logix Designer
Application
1585J-M8CBJM-x Ethernet
(shielded) Cable
