Chapter 2 Planning the Kinetix 5500 Drive System Installation
External Shunt Resistor
Observe these guidelines when mounting your external shunt resistor outside of
the enclosure:
• Mount shunt resistor and wiring in the very dirty zone or in an external
shielded enclosure.
• Mount resistors in a shielded and ventilated enclosure outside of the
cabinet.
• Keep unshielded wiring as short as possible. Keep shunt wiring as flat to
the cabinet as possible.

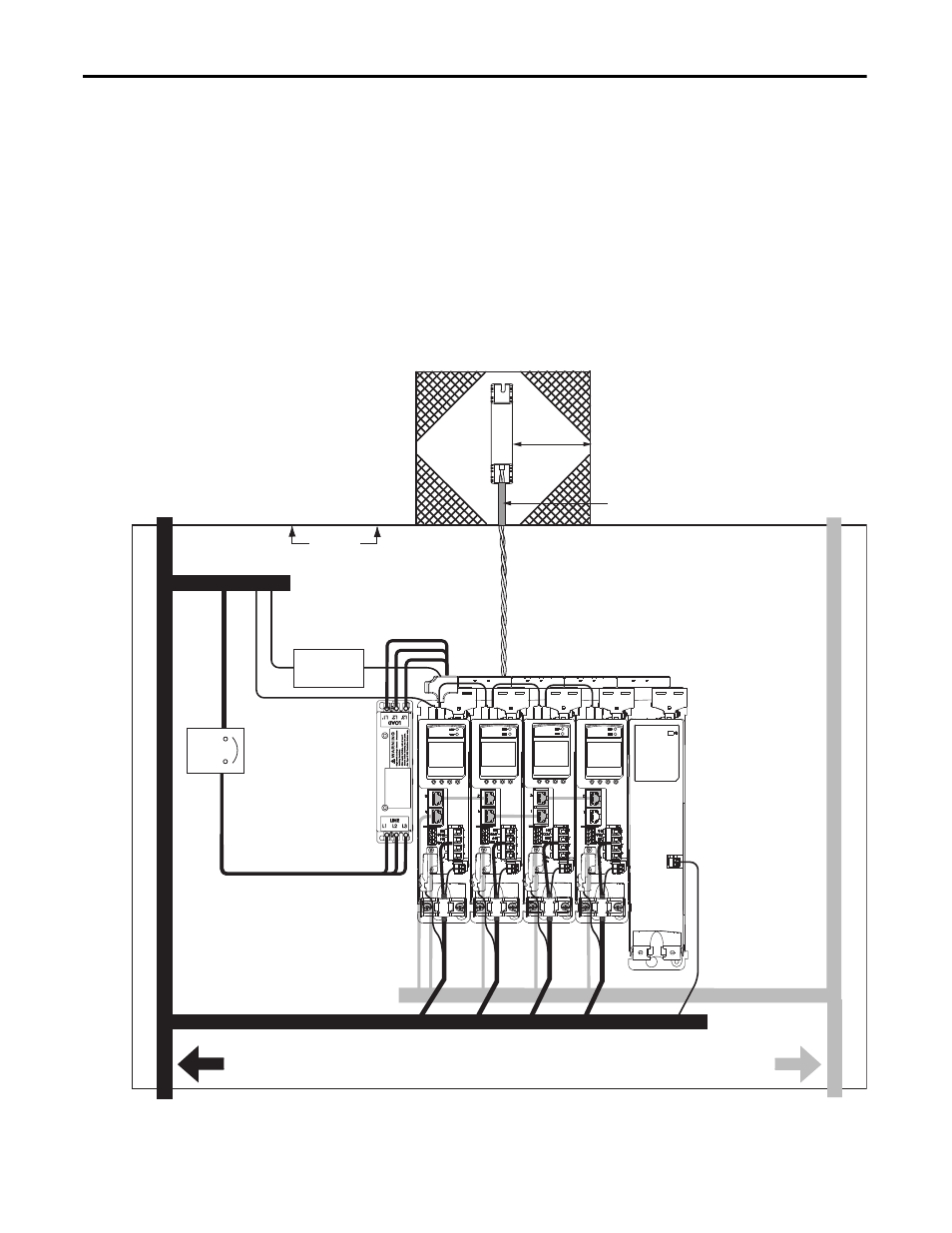

Figure 17 - External Shunt Resistor Outside the Enclosure
C C
D
D
VD
D
D
C
VD
Dirty Wireway Clean Wireway
Single Motor Cable
Very Dirty Connections Segregated
(not in wireway)
Customer-supplied
Metal Enclosure
150 mm (6.0 in.)
clearance (min) on all four
sides of the shunt resistor.
Enclosure
Metal Conduit (where
required by local code)
No sensitive
equipment within
150 mm (6.0 in.).
Shunt Power Wiring Methods:
Twisted pair in conduit (1st choice).
Shielded twisted pair (2nd choice).
Twisted pair, two twists per foot (min) (3rd choice).
Circuit
Breaker
Digital Inputs
and Ethernet Cables
Route single motor cables
in shielded cable. Route registration and communication
signals in shielded cables.
Kinetix 5500 Servo Drive System
24V DC
Power Supply
AC Line Filter
(required for CE)
Module Status
Safety Cable
(2198-Hxxx-ERS drives only)
