Rockwell Automation Migrating PanelView Enhanced Terminal Applications - Manual (Page 87)

Publication 2711P-QS001A-EN-P - October 2007 87
Review Unsupported Features and Implement Workarounds for Migration Issues Chapter 6

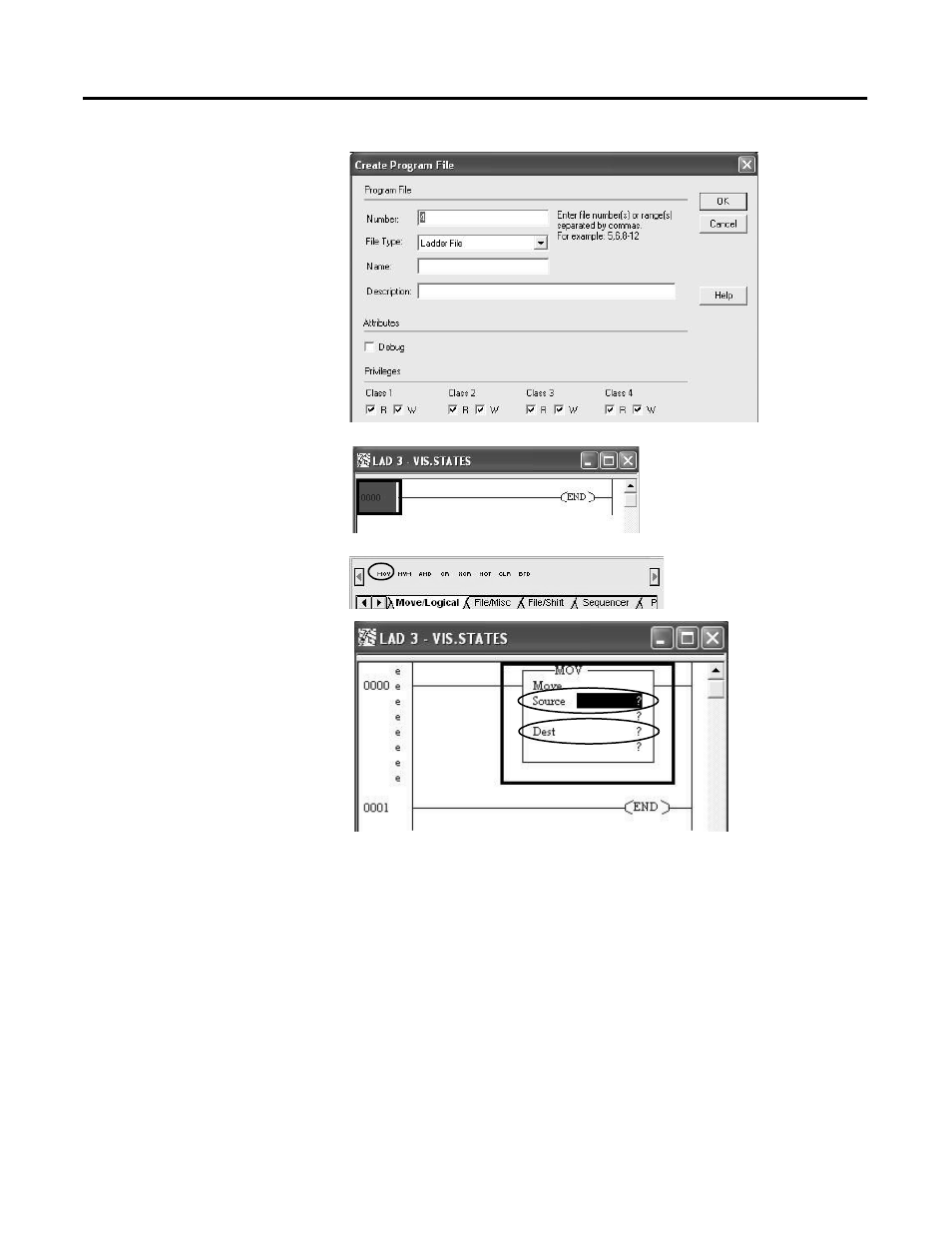

4. Configure these parameters
for the program file.
a. Accept the Number
value.
b. Set the File Type to
Ladder File.
c. Enter a meaningful Name
for the program file.
d. Click OK to save your
settings.
5. Double-click the program
file you just created.
6. On the tabbed instruction
bar, select the Move/Logic
tab and click MOV.
7. Configure the MOV
instruction.
a. For Source, enter the first
word location in the new
data file you just created.
b. For Destination, enter the
tag address for the
original Visible State 1 to
PLC connection.
8. Click the next empty rung.
9. Repeat steps 6 to 8 until the
number of MOV instructions
matches the number of
visible states in the original
control list object.
As you repeat each step,
enter the next word in the
data file for the Source and
the next visible state as the
Destination.
