Publication 2711P-QS001A-EN-P - October 2007 65
Review Unsupported Features and Implement Workarounds for Migration Issues Chapter 6

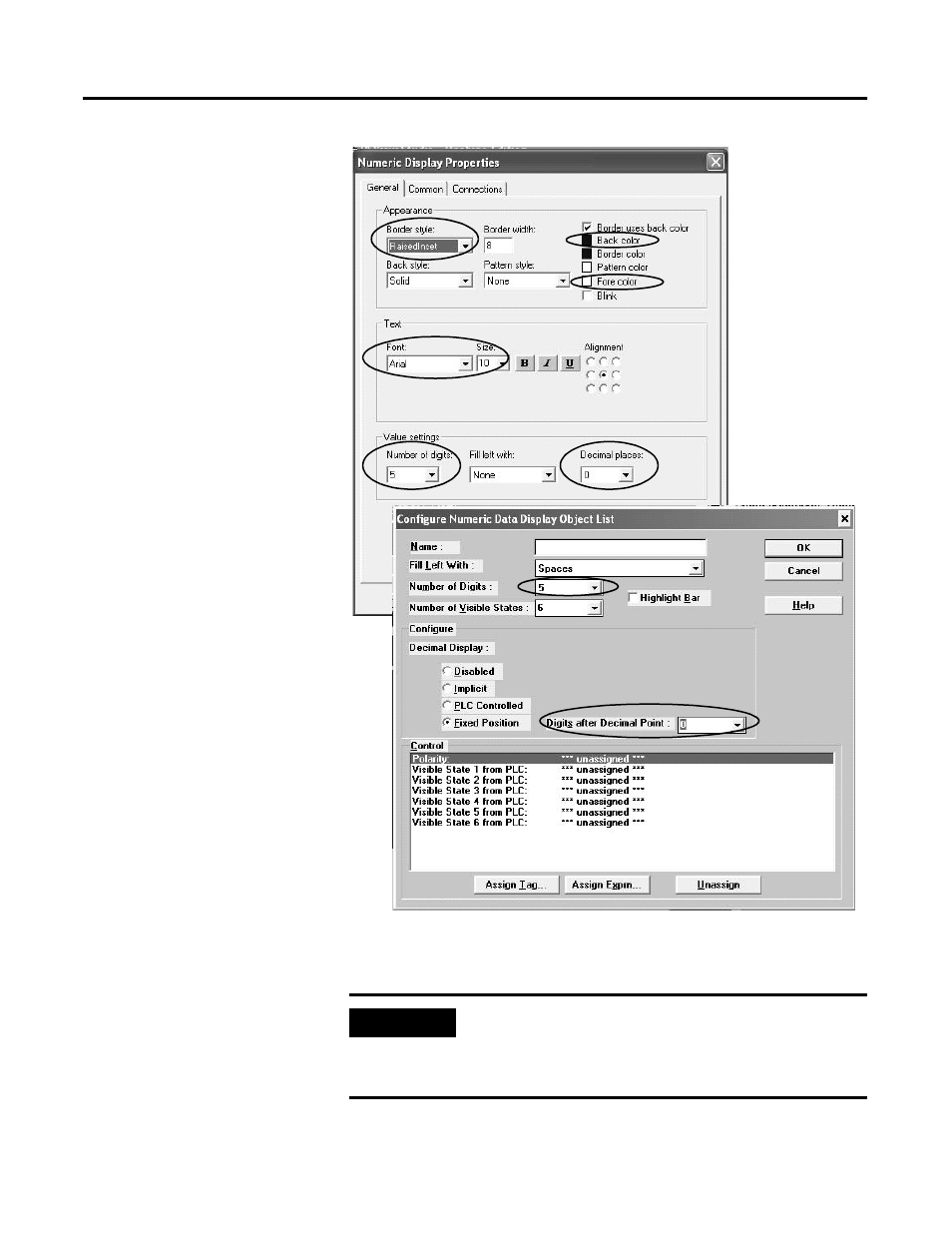

3. Double-click the numeric
display to open its
properties.
4. Set the Border style to
None.
When you group the
numeric displays they will
look as one object with a
continuous border.
5. Set the Back color to match
the background color of the
PanelBuilder 1400e numeric
data display object List.
6. Set the Fore color to match
the foreground color of the
PanelBuilder 1400e numeric
data display object list.
7. Set the Font to match the
font used in the
PanelBuilder 1400e
application.
8. Set the Number of digits to
match the PanelBuilder
1400e numeric data display
object list.
9. Set the number of Decimal
places to match the Digits
after Decimal Point value in
the PanelBuilder 1400e
numeric data display object
list.
IMPORTANT
The PLC controlled decimal point option is not supported in the
numeric display object. You can use an expression on the
object’s Connections tab to provide similar functionality. For
more information on this workaround, see page 81.
Original PanelBuilder 1400e Object
