Chapter 6 Review Unsupported Features and Implement Workarounds for Migration Issues

6. Repeat step 6 for each

symbol copied in step 8
and assign the SBCPx
connection tags.

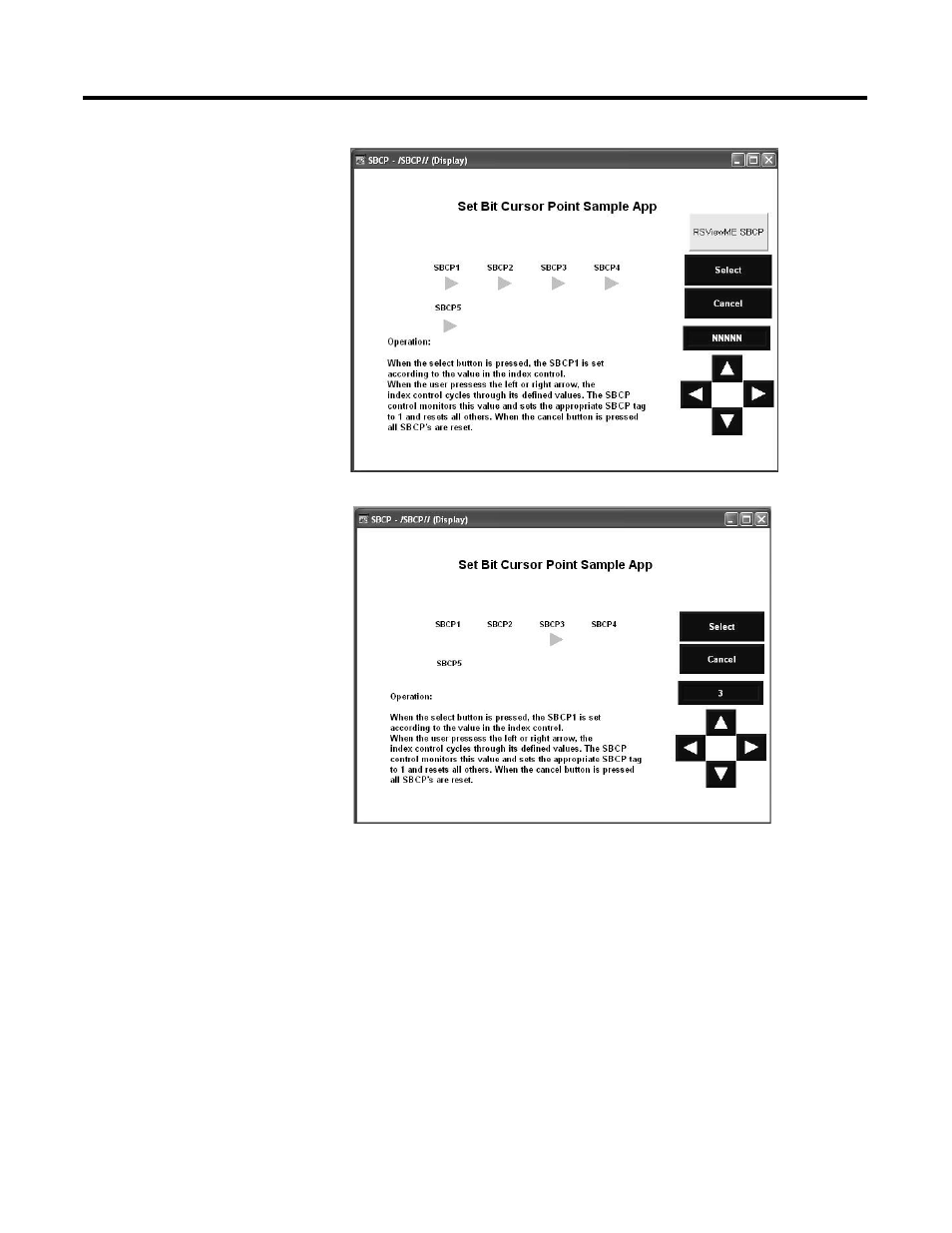

In the example, the Select
button enables the set bit
cursor point and the Cancel
button disables it. The
arrows let the operator
navigate through each of
the SBCP tags assigned. In
this example, a symbol
object provides visual
feedback for the object or
tag being referenced.

In Run mode, only one
symbol object is active at a
time, providing visual
feedback to the operator.

7. Repeat all steps starting with

the procedure on page 72
for each display that uses a
set bit cursor point object.
