Review Unsupported Features and Implement Workarounds for Migration Issues Chapter 6
Assign Function Keys to a Piloted Control List Selector
The final procedure in configuring a piloted control list selector is to
assign F or K key functions to the navigation buttons. This is required
only for terminals with a keypad.
Follow these steps to assign F or K terminal function keys to the
navigation keys on the display.

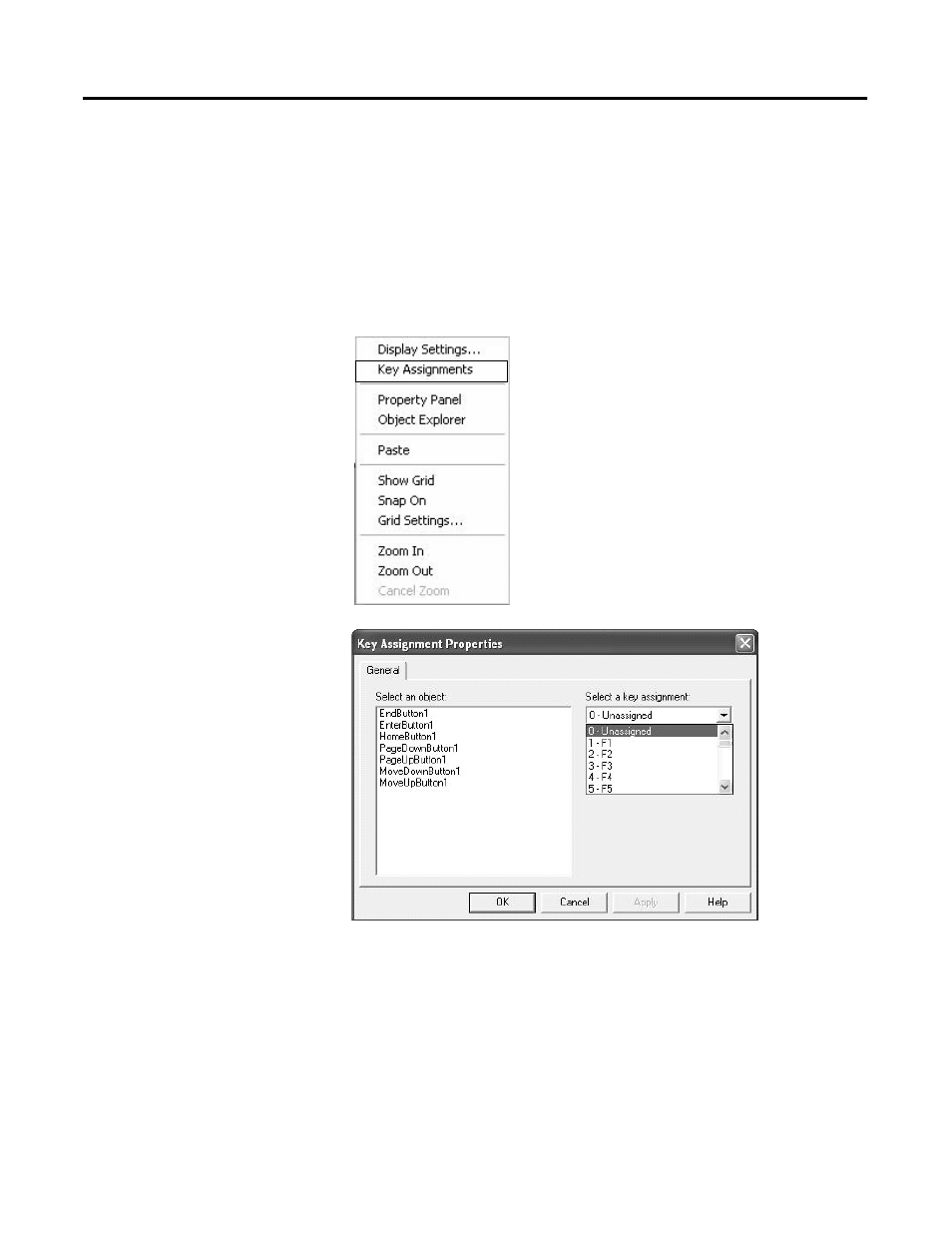

1. Right-click an empty area of
the display and select Key
Assignments from the
shortcut menu.
The Key Assignment
Properties dialog opens.
2. Select a key object on the
left side of the dialog.
3. Select a key assignment to
associate with the object.
Use the key assignments
from the original cursor list
object.
4. Repeat steps 2 and 3 for
each key assignment.
5. Click OK when done.
You have successfully created the piloted control list selector to
replace the original cursor list object. You now need to create the
object lists that will be grouped with the piloted control list selector.
