Age 23 – Rockwell Automation Migrating PanelView Enhanced Terminal Applications User Manual
Page 23

Publication 2711P-QS001A-EN-P - October 2007
23
Migrate Your Application Chapter 3

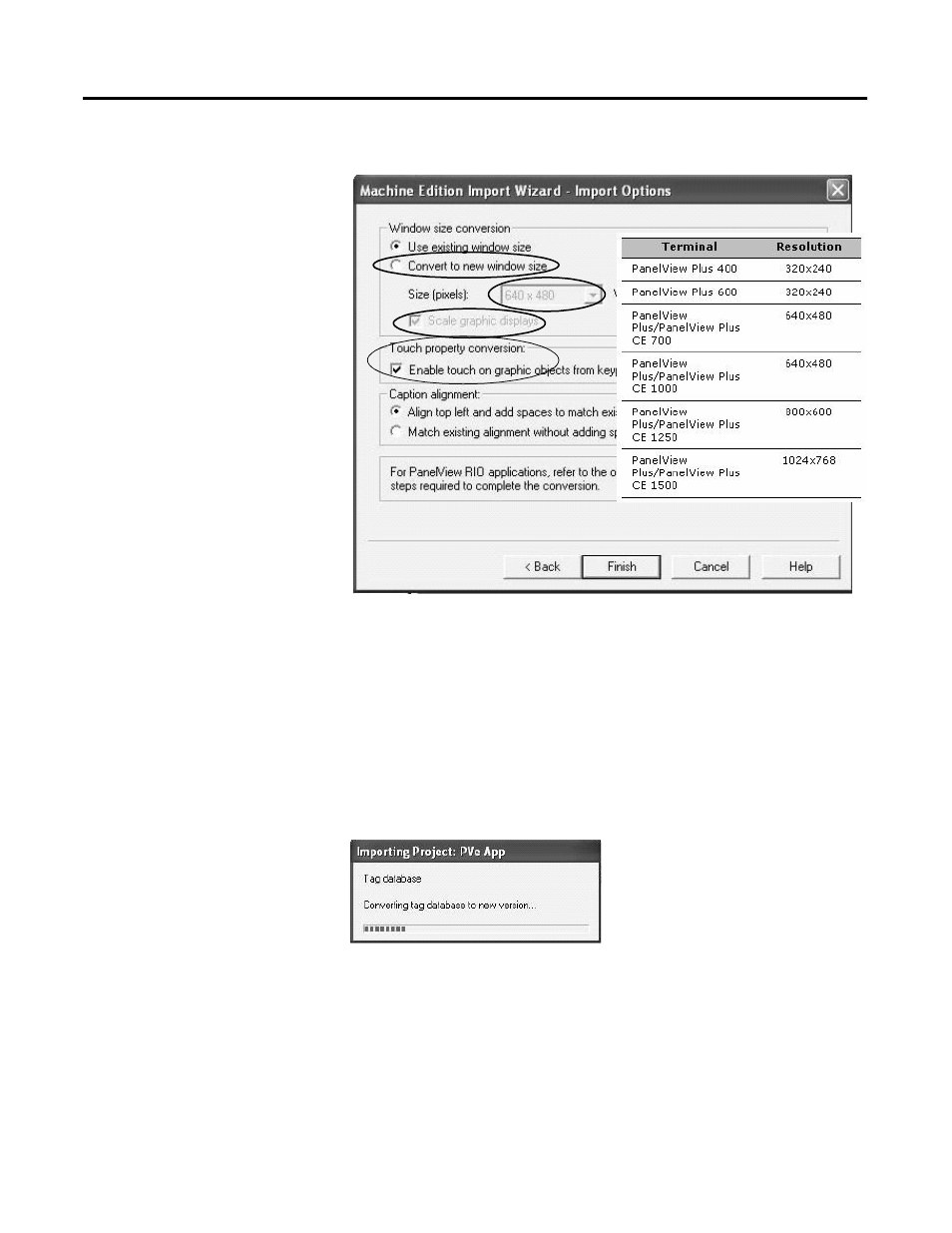

9. Configure the import
options based on your
replacement terminal.
Click Help at any time for
clarification of each dialog
option.
a. Check the Convert to
new window size
checkbox.
b. Select the size (in pixels)
of your PanelView Plus
terminal display as
shown in chart.
c. Check the Scale graphic
displays checkbox.
When selected, this
setting rescales all
displays.
d. If your original
PanelView e terminal
used a touch screen or
touch/keypad, check the
box under Touch
property conversion.
e. Click the Help button and
read the differences
between the caption
alignment options and
select an option for your
new application.
f. Click Finish.
The Importing Progress
dialog shows the conversion
status. This process may
take a while, depending on
the size of your application.
When completed, you will
see the Project Status dialog
in the next step.
