Review Unsupported Features and Implement Workarounds for Migration Issues Chapter 6

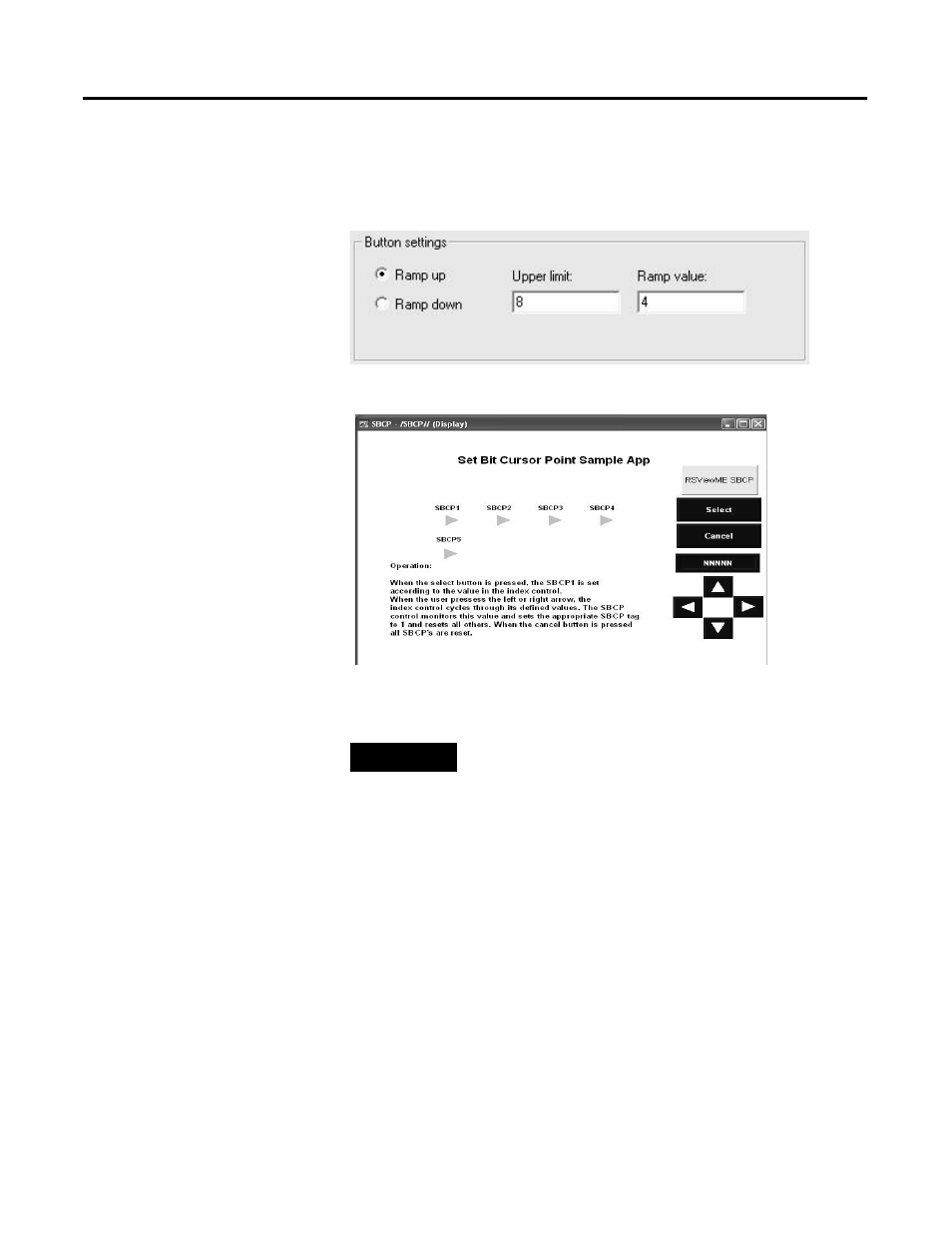

13. Double-click another ramp
buttons and select
properties for a down ramp
button.
a. Set the Upper limit to the
first set bit cursor point
on the last row.
b. Set the Ramp value to the
last set bit cursor point
value on the row.
For example, if you have
four set bit cursor points
and three rows, then set
the Ramp value to 4 and
the Upper limit to 9.
In this example, if you
clicked the down ramp
button on the second row
at postion 5, it would
ramp up by 4. The set bit
cursor point starts at the
first set bit cursor point
on the next row, 9.
c. On the Label tab, set the
Image to Arrow Down.
d. On the Connection tab,
set the Value connection
to the same tag in step 8.
TIP
For keypad only terminals, you need to assign function keys to
each of the ramp arrow buttons so the operator can interact
with the display. Right click an empty area of the display and
select Key Assignments to assign function keys.
