Chapter 6 Review Unsupported Features and Implement Workarounds for Migration Issues
Ladder Logic Updates to
Support Visible States Because the piloted control list selector uses an array tag, not
individual tags, to implement visible states, you need to make changes
to your ladder logic.

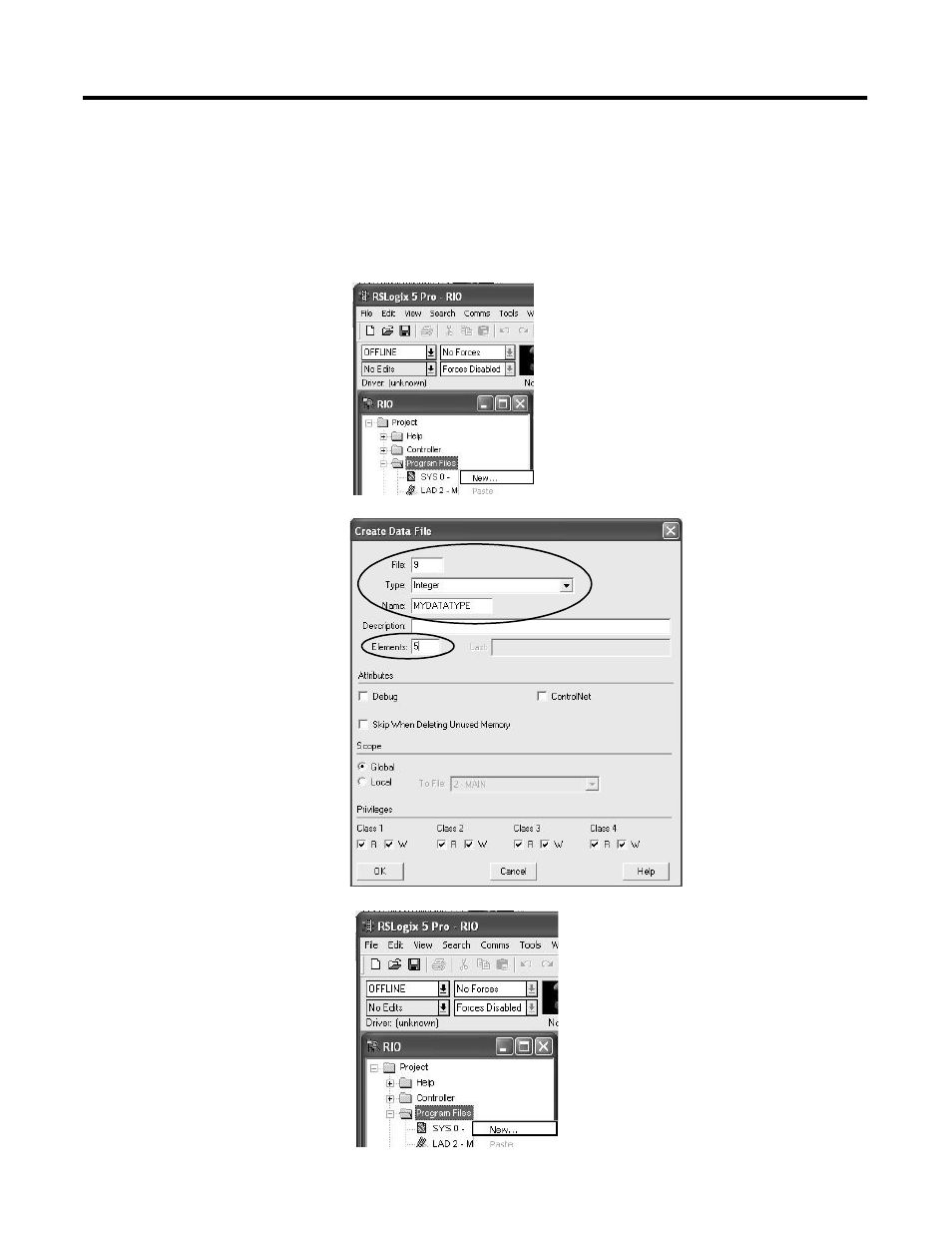

Follow these steps to update your ladder logic using RSLogix 5
software. The same steps would apply if using RSLogix 500 sofware.
1. Create a new data file.
2. Configure these parameters
for the data file.
a. Accept the File value.
b. Set the Type to Integer.
c. Enter a meaningful Name
for the file.
d. For Elements, enter the
number of visible states
in the original
PanelBuilder 1400e
cursor list object.
e. Click OK to save your
settings.
3. Right-click on Program Files
and select New to add a
new program file to the PLC
program.
