Chapter 9 Measure and Improve Runtime Application Performance

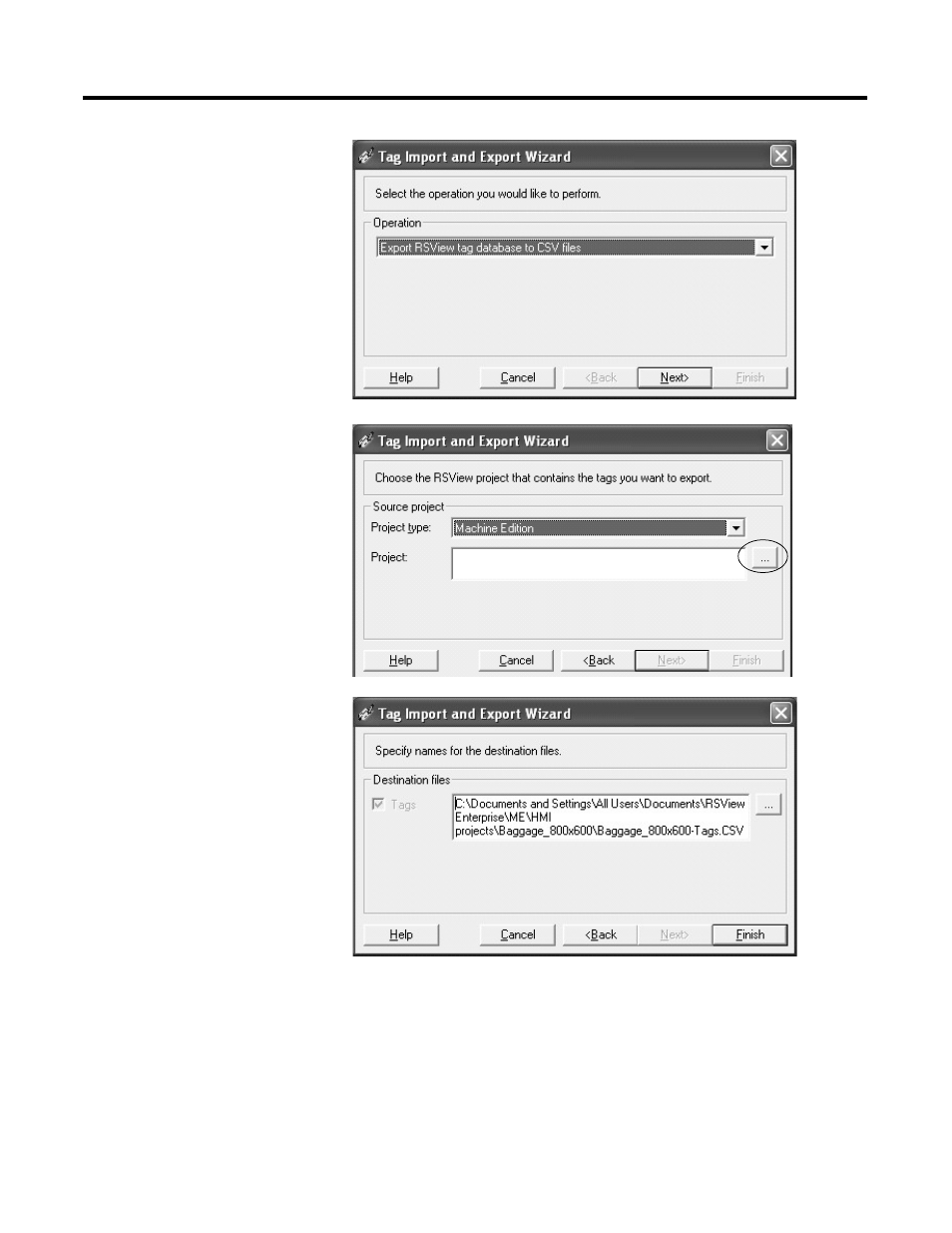

4. In the Operation field, select
Export RSView Tag
Database to CSV files and
click Next.
5. Click the ... button and
browse to the project .med
file and click Next.
This example uses
Baggage_800x600.med.
6. Accept the default name for
the destination file.
7. Click Finish.
You have just successfully
exported the HMI tag
database.
The default destination of the .csv file is:
C:\Documents and Settings\All Users\Documents\RSView
Enterprise\ME\HMI Projects\Project_Name\Project_Name-Tags.CSV
