54 Publication 2711P-QS001A-EN-P - October 2007
Chapter 6 Review Unsupported Features and Implement Workarounds for Migration Issues
Follow these steps to create key objects for the piloted control list
selector.
1. Open the display with
piloted control list selector.

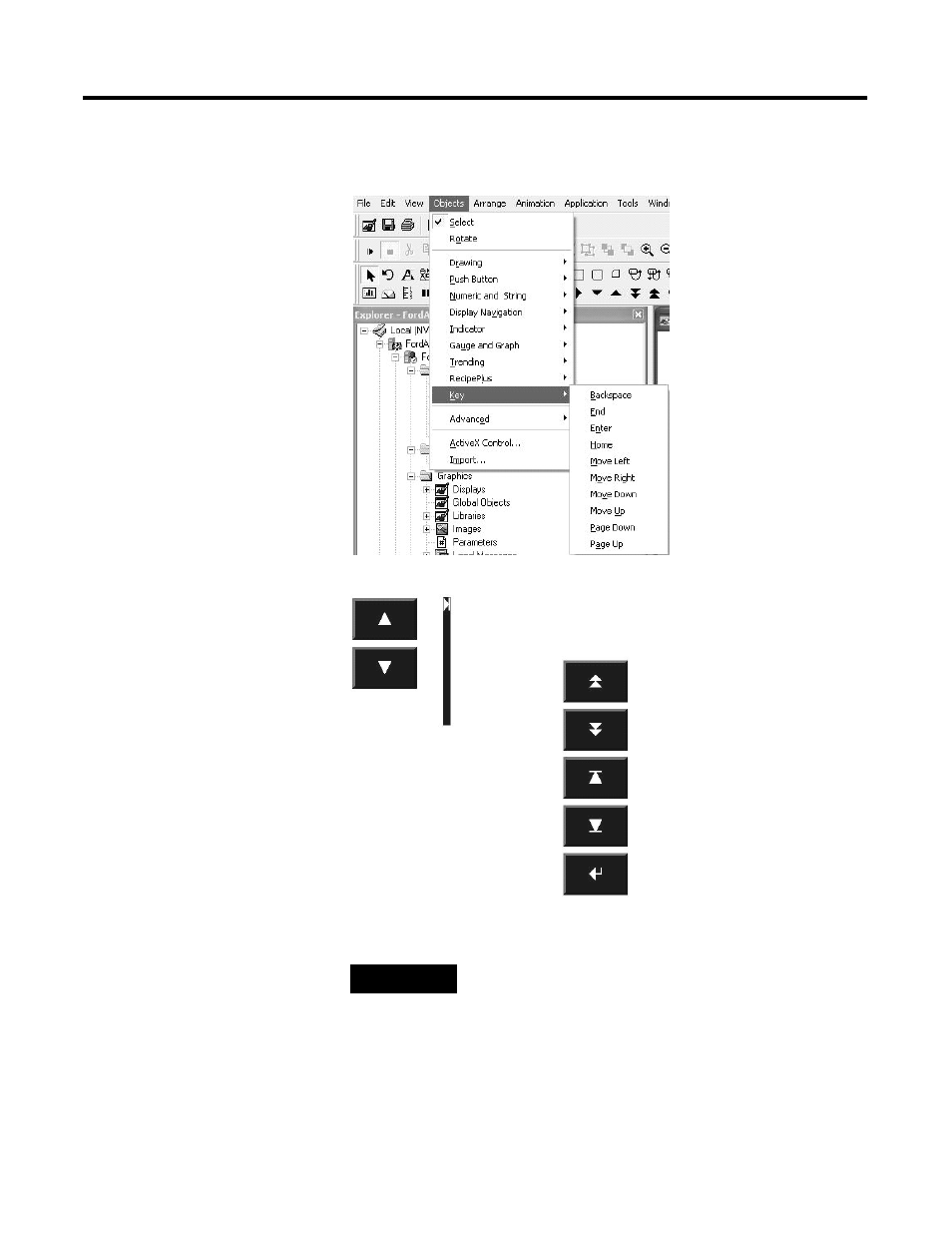

2. Select Objects>Key> and an
option, then draw the object
on the display.
You can use all of the
objects on the key submenu
to navigate a piloted control
list selector, except for
Backspace.
3. Repeat step 2 until the
display contains all of the
required navigation keys.
This example shows all keys
assigned to the piloted
control list selector.
4. Link each key to the piloted
control list selector.
a. Double-click each key.
b. Assign the Send press to
Linked Object setting to
the piloted control list
selector.
c. Assign the Linked Object
setting to the piloted
control list selector.
TIP
You can replace the arrows and symbols in the keys with text.
•
Double-click each key object to open its properties.
•
On the Label tab, type the desired caption.
•
Remove the image associated with the key from the Image field.
