Chapter 6
The Transfer Menu
6 – 9
You can download one file at a time from the Offline Programming Software
to the DL40. When you select
Download to DL40 (Remote I/O) and press
[
↵
], the Download (Remote I/O) window will appear.
Important: The DL40 must be operating in Block Transfer mode to use
Remote I/O PassThrough.

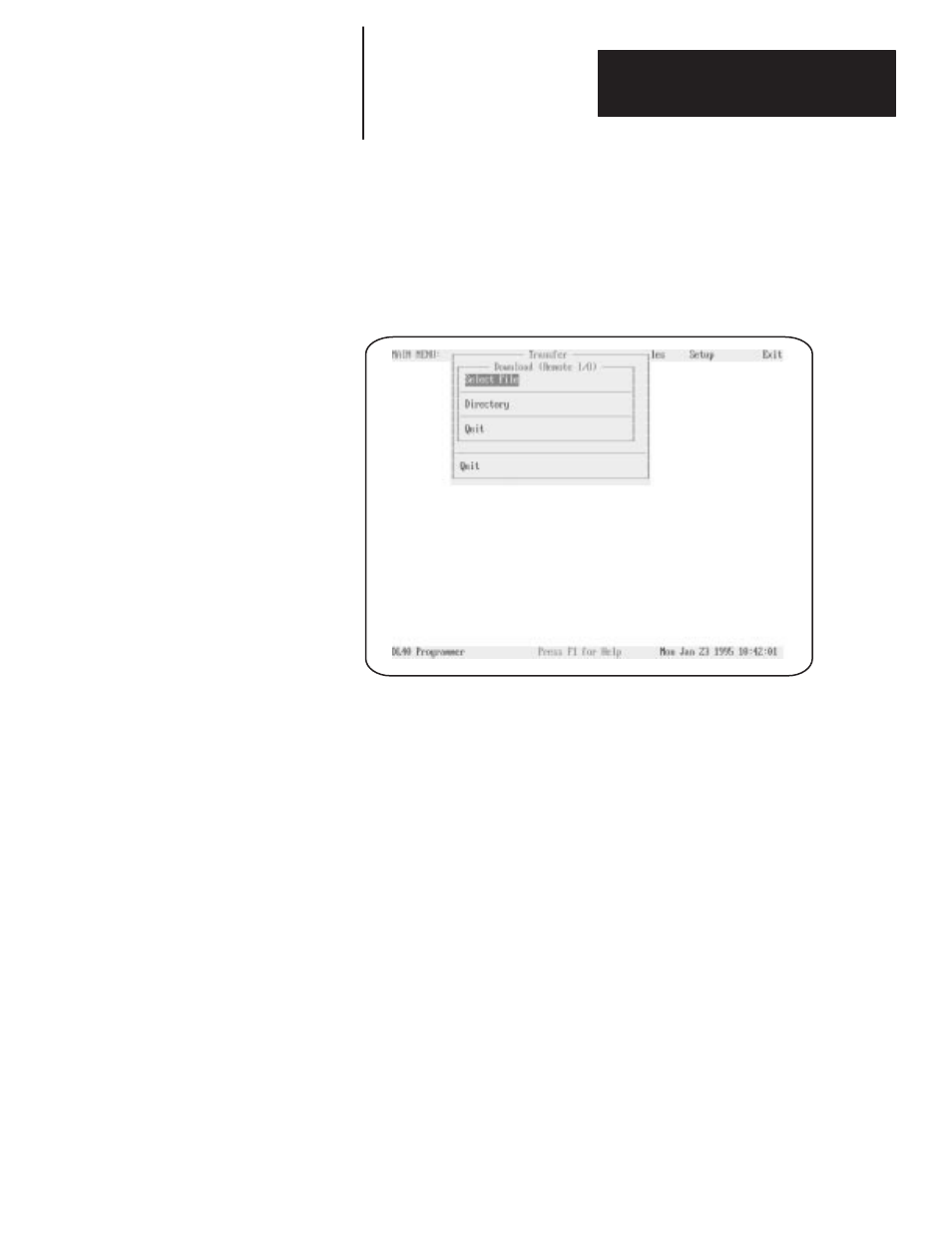

Figure 6.7
Download (Remote I/O) file selection screen
Move the cursor to Select File and press [
↵
] . The program will display a
brief message indicating it is searching for data files, then display the File
Selections pop-up window. Use the cursor keys to highlight a file name and
press
[
↵
] . When you do so the Message Selections pop-up window will be
replaced by an expanded version of the Download (Remote I/O) window.
Included in this window are the be address parameters of the currently
selected communication (.UDU) file, including
DL40 Rack (address), DL40
Group (number), and PLC Address . In addition, the window includes the
Download FILENAME item and menu choices allowing you to modify an
existing Communication File or create a new one.
NOTE: There is no default Communication File. You must create at least
one file to upload or download over Remote I/O via DH+ or Ethernet.
Procedures for creating a new or modifying an existing Communication File
appear beginning on page 6 – 13.
Downloading a File Via
Remote I/O (PassThrough)
