Page 100

Chapter 6
The Transfer Menu
6 – 12
You can upload one file at a time from the DL40 to the Offline Programming
Software. When you select
Upload to DL40 (Remote I/O)
, the Upload
(Remote I/O) window will appear.

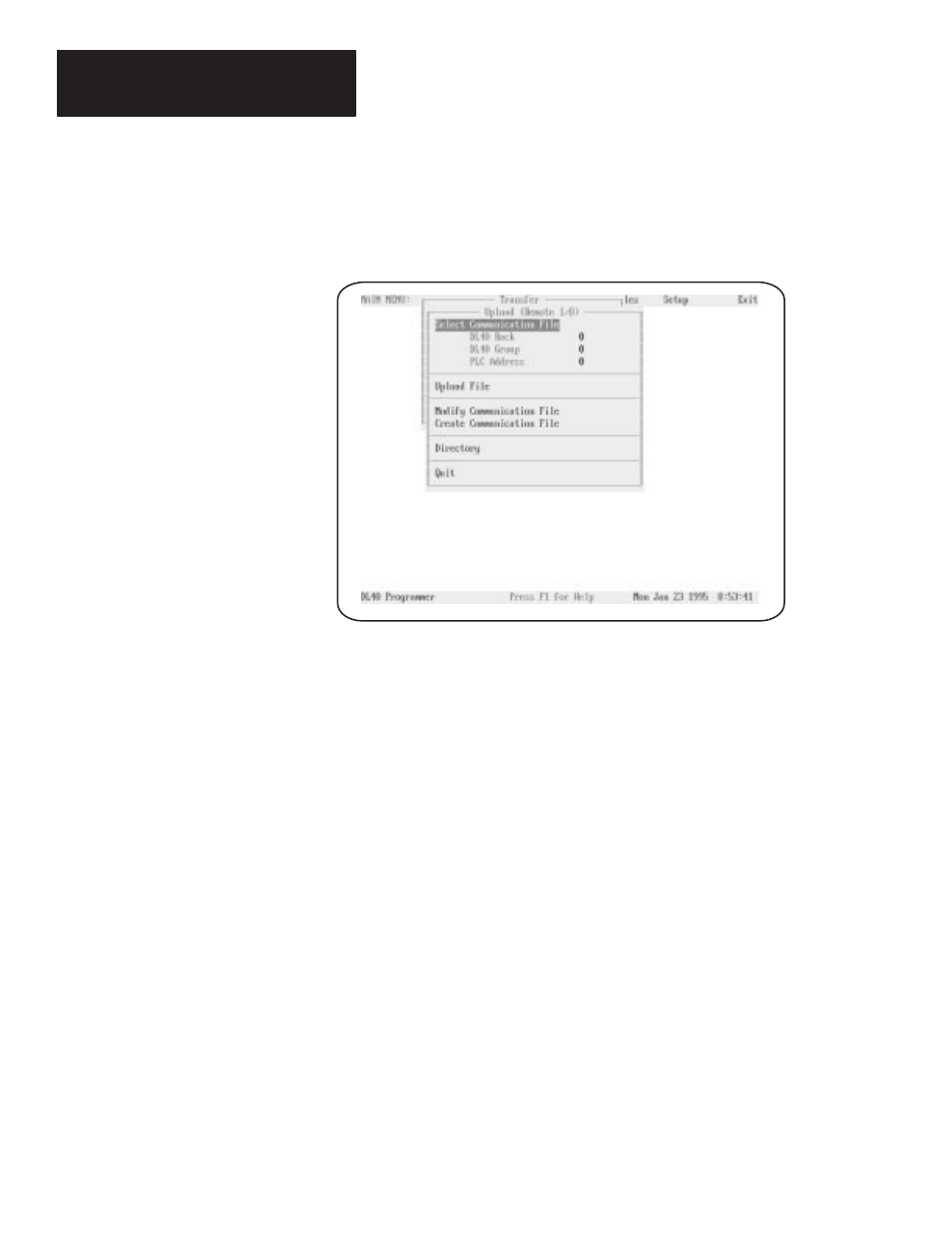

Figure 6.9
Upload via Remote I/O screen
Included in this window are the address parameters of the currently selected
communication (.UDU) file, including
DL40 Rack
(address),
DL40 Group
(number), and
PLC Address
. In addition, the window includes the
Upload
File
item and menu choices allowing you to modify an existing
Communication File or create a new one.
NOTE: There is no default Communication File. You must create at least
one file to upload or download over Remote I/O via DH+ or Ethernet
PassThrough. Procedures for creating a new or modifying an existing
Communication File appear beginning on page 6 – 13.
When the settings on the Upload (Remote I/O) screen are as you want, move
the cursor to the
Upload File
line and press
[
↵
].
Answer
Yes
when asked if
you want to start uploading now. Before you upload you will get one of the
following warnings, depending on the type and access settings of your DH+
hardware device.
Uploading a File Via
Remote I/O (PassThrough)
