Ports menu – Rockwell Automation 2706-ND1 DL40 OFFLINE PROGRAMMING SFTWR.USER MANUAL User Manual
Page 80
Chapter 5
The Develop Menu
5 – 35
The
Ports
menu allows you to control the communication settings for DL40
Message Display. You can select from RS-232, RS-485, or the currently
selected trigger port settings active file.
After you have selected
Ports
, the Ports menu will open. Use the arrow keys
to highlight a menu item and press
[
↵
]
. You will be able to select a new
value from a list, or enter a number. Press
[
↵
]
apply any change you make.

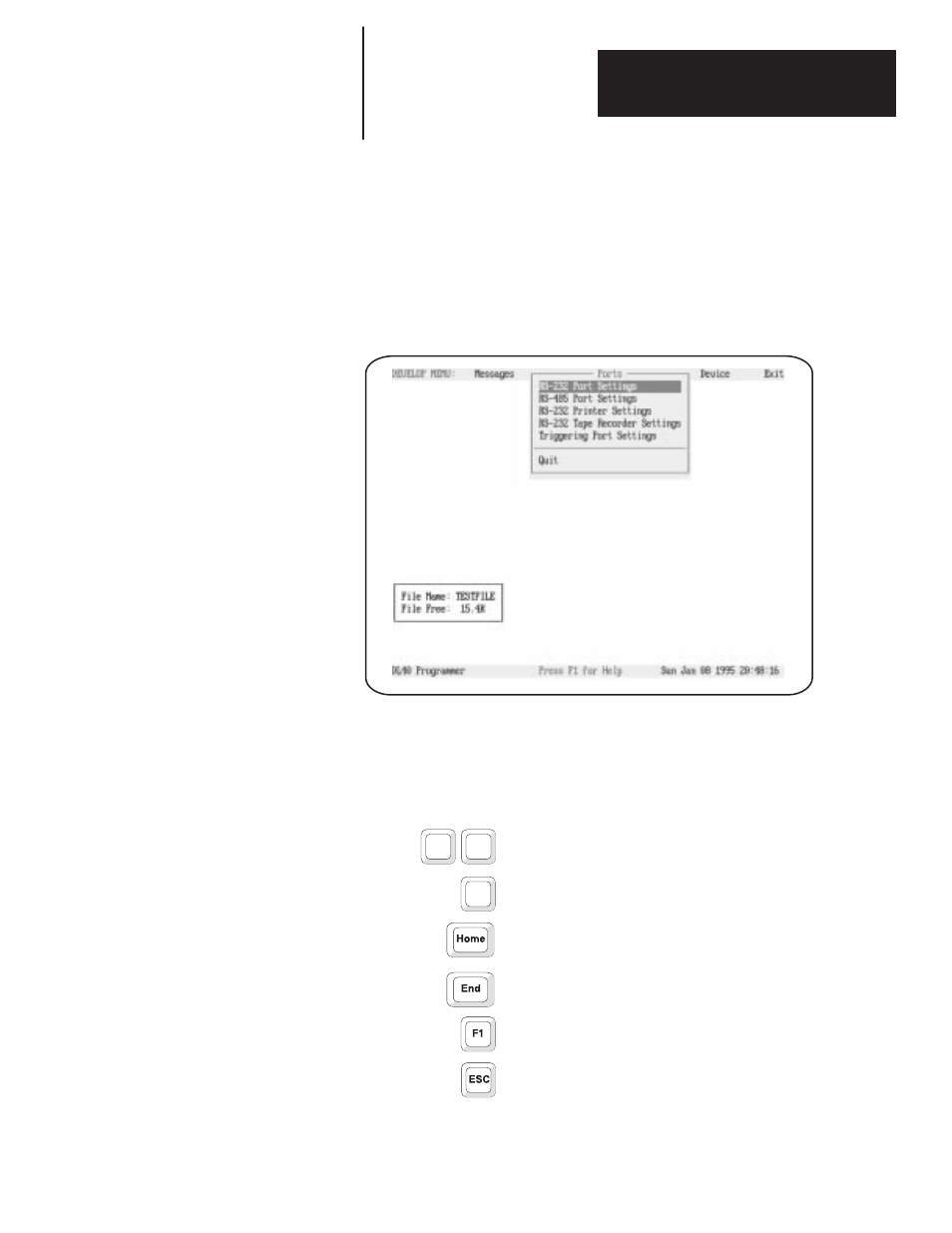

Figure 5.17
The Ports menu
Special keys
You may use the following special keys on this menu.
↑
↓
Moves the cursor up or down the menu
↵
Lists or accepts choices
Moves cursor to first menu item
Moves cursor directly to Quit
Get Online Help
Closes the Ports menu without taking action.
Ports Menu
