Chapter 6
The Transfer Menu
6 – 5

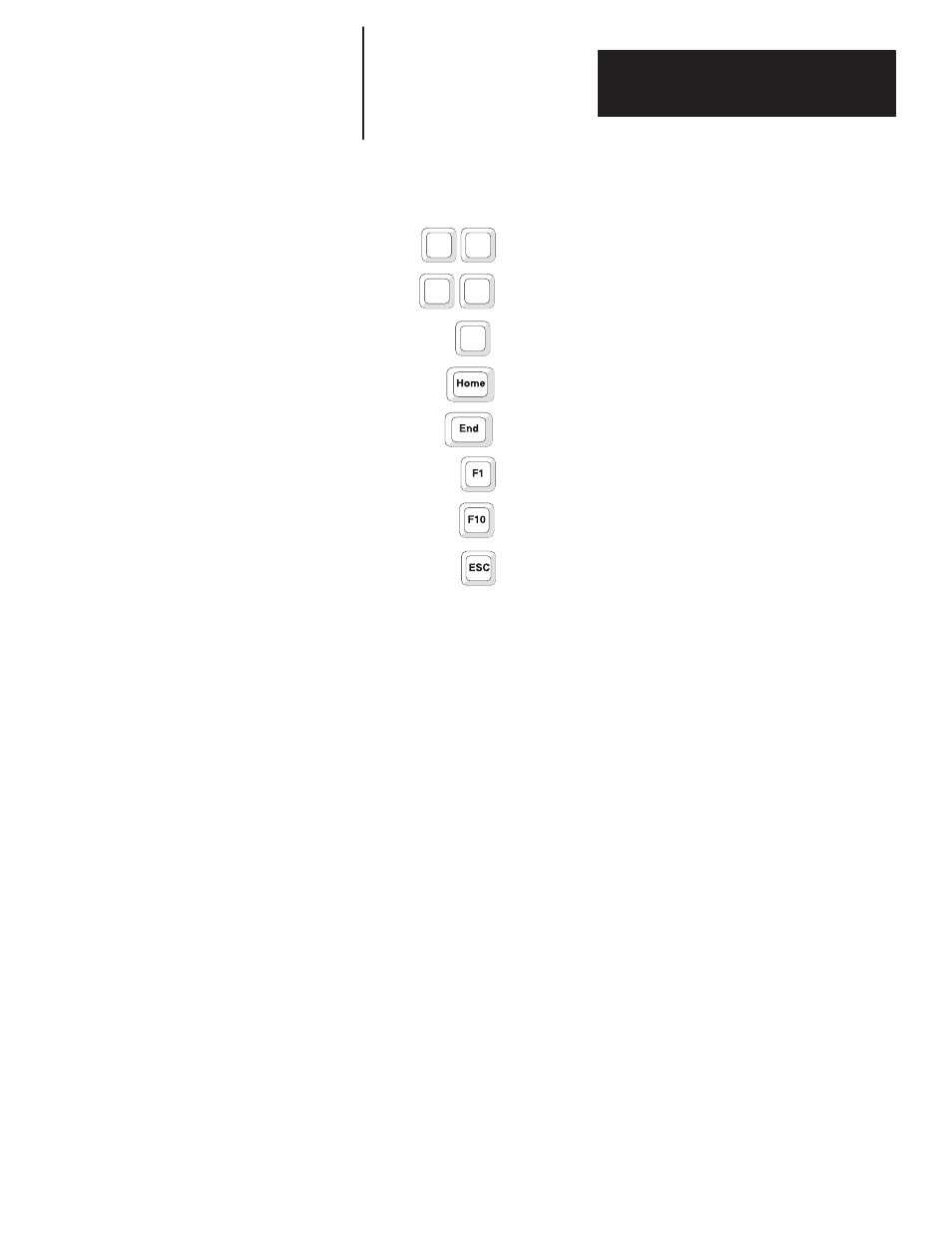

You may use the following special keys on the Address Selections/Address
Picks window.
← →
Moves the cursor to the Address Selections or Address Picks column
↑ ↓
Moves the cursor up or down within a column
↵
Moves the highlighted address from one column to the other
Move the cursor directly to the first item
Move the cursor directly to the last item
Get Online Help
Accept address picks
Closes the Address Selections/Address Picks pop-up without taking action
When you have specified a file and (in the case of an RS-485 download)
your desired addresses, the Select File window will open.
The Offline Programming Software allows you to download a complete
message file or only the currently selected file’s parameters. Specify which
you want by selecting
All or Parameters in the Select Download Type
field of the Download to DL40 menu.
Note: To use Verify you must select All in the Select Download Type field.
To configure your computer’s communication port, select Configure Port on
the Download to DL40 menu, then press [
↵
] . Select COM1 or COM2 , press
[
↵
] , and select a baud rate in the Configure Port pop-up window.
Note: To change parity or data bits, return to the Develop → Ports menu.
Important: The software will warn you if the configuration of the DL40 to
which you are writing is different than the configuration of the
file you are downloading. Device type, number of lines, and
memory size must all match.
