Chapter 4
Navigating the Software

4 – 5

Configuring the Program to Match Your Monitor

The Offline Programming Software supports both color and monochrome
displays. To change the display type, move the cursor to

Setup

on the Main

menu and press

[

].

Select

Colors

, and then select either

Color

or

Monochrome

. Select

Yes

to confirm your choice, the press

[

]

. A pop-up

message will appear briefly in the center of your screen to indicate that the
software is saving your selection to its setup file. Press

[Q]

or

[ESC]

repeatedly to return to the Main menu.

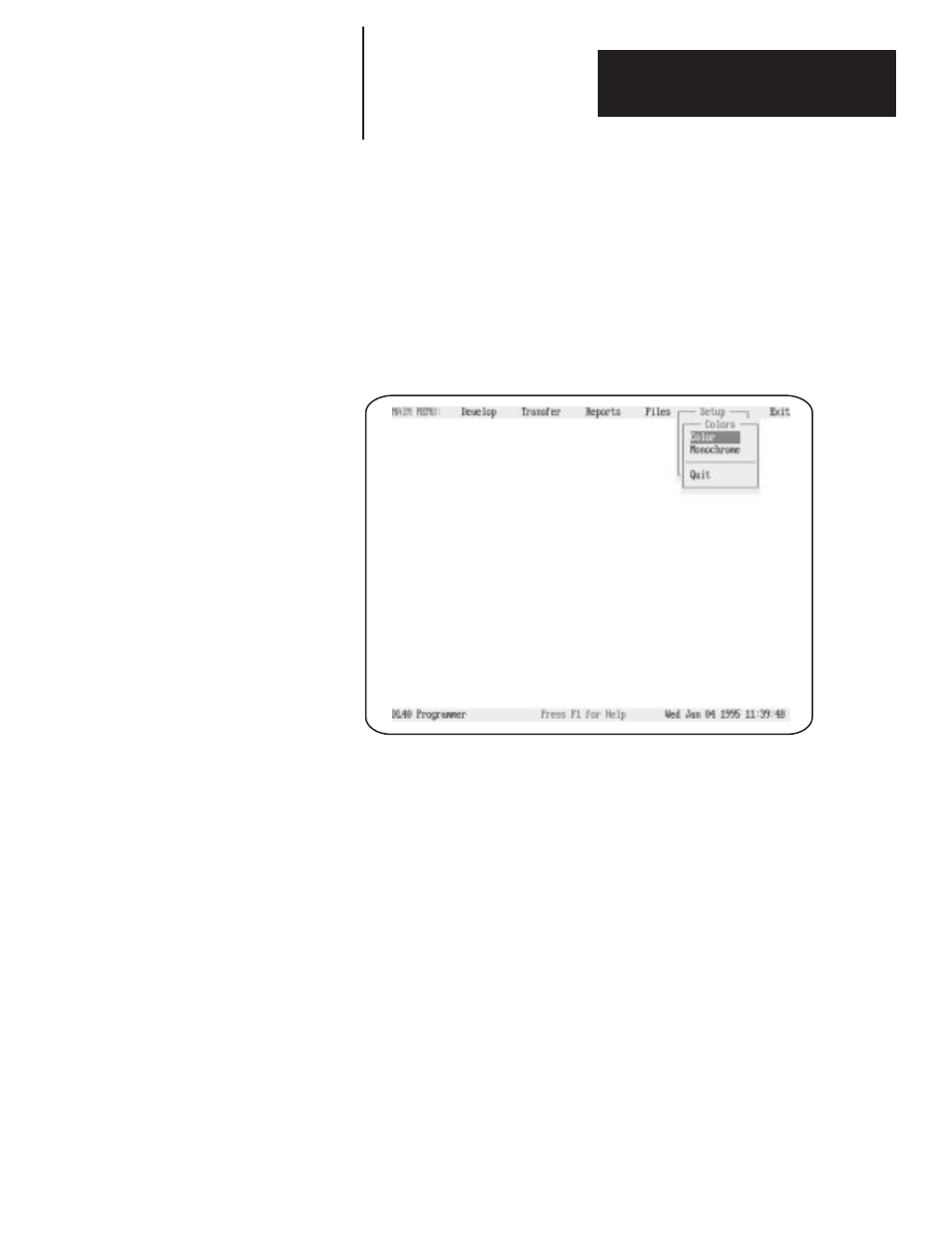

Figure 4.5
The Setup
Colors Screen
