Install the module – Rockwell Automation 1756-OF8H ControlLogix HART Analog I/O Modules User Manual
Page 30
30
Rockwell Automation Publication 1756-UM533C-EN-P - February 2011
Chapter 2
Module Installation
Install the Module
You can install or remove the module while chassis power is applied.

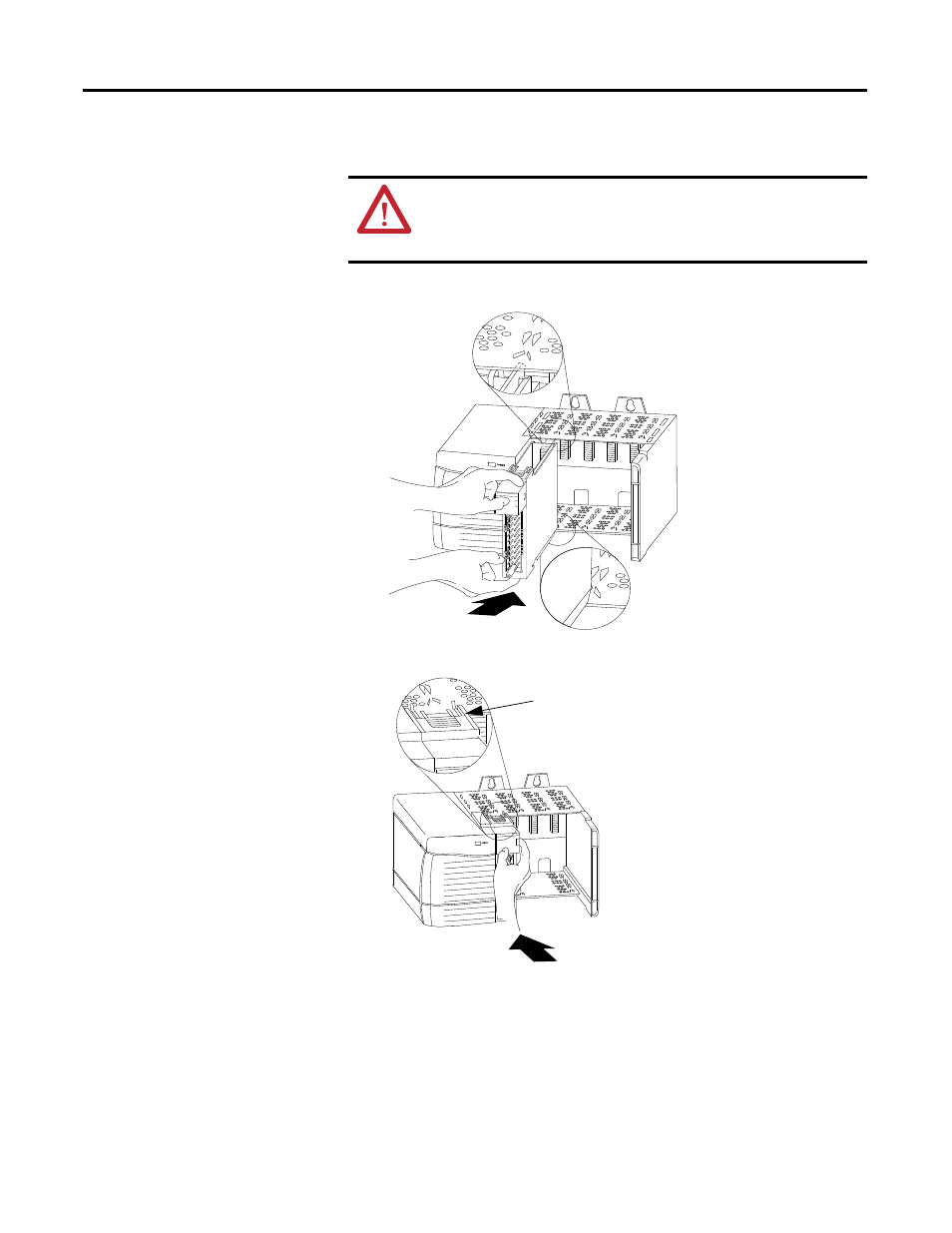

1.
Align the circuit board with the top and bottom chassis guides.
2.
Slide the module into the chassis until the module locking tabs click.
ATTENTION: The module is designed to support removal and insertion
under power (RIUP). However, when you remove or insert an RTB with field-
side power applied, unintended machine motion or loss of process control
can occur. Exercise extreme caution when using this feature.
20861
Locking Tab
20862
