Rockwell Automation 1747-BSN Backup Scanner Module User Manual
Page 148
Publication 1747-UM010B-EN-P - September 2003
9-6 Programming Techniques
0012
B3:3
11
COP
Copy File
Source #M1:1.4908
Dest
#N17:128
Length
128
COP
B3:4
11
0013
B3:3
12
COP
Copy File
Source #M1:1.5036
Dest
#N18:0
Length
128
COP
B3:4
12
0014
B3:3
13
COP
Copy File
Source #M1:1.5164
Dest
#N18:128
Length
128
COP
B3:4
13
0015
B3:3
14
COP
Copy File
Source #M1:1.5292
Dest
#N19:0
Length
128
COP
B3:4
14

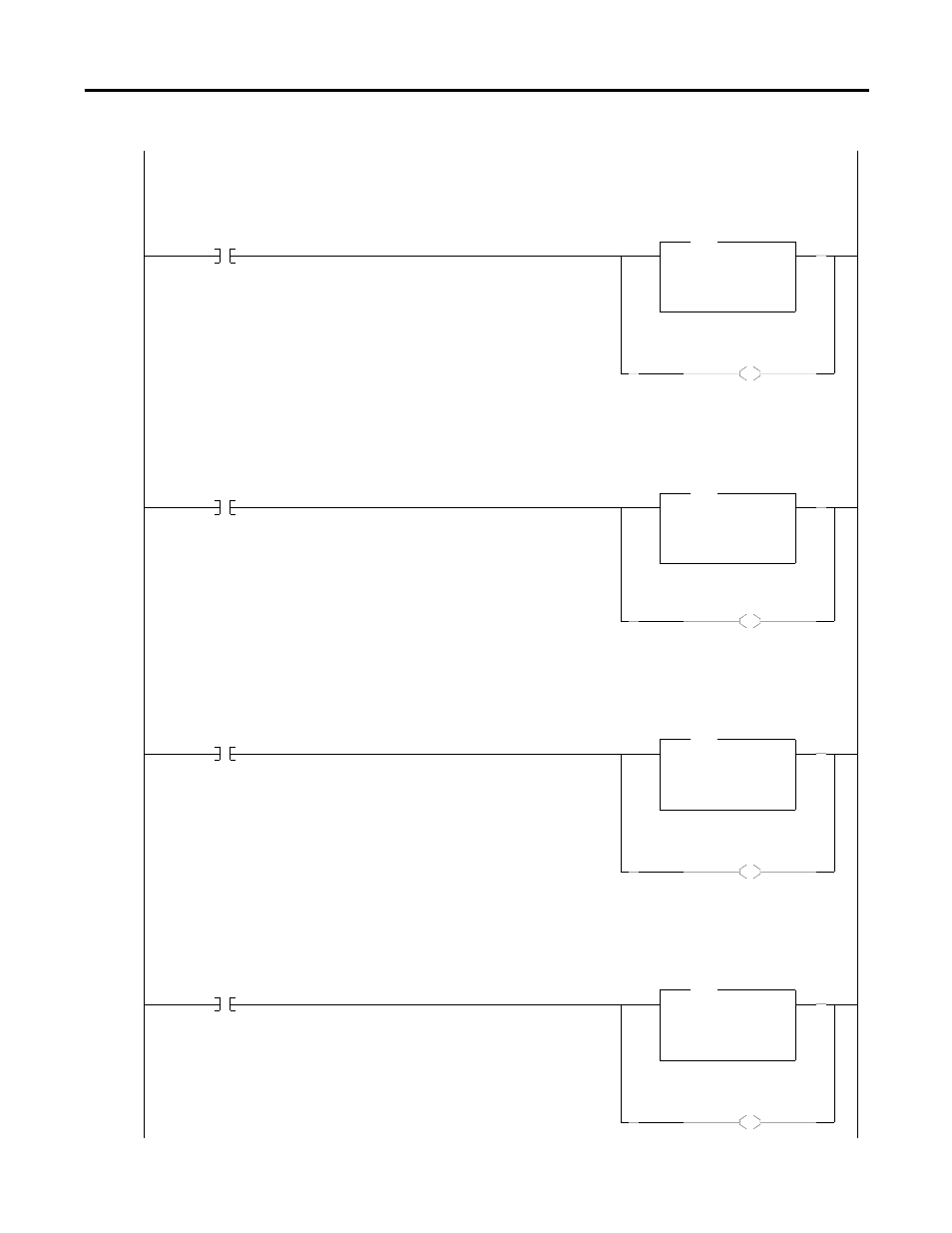

This rung copies the "new" Data Block #12 data from the secondary 1747-BSN to a file within the secondary processor. When the Copy is
complete, the DTHW (Data Table Handshake Word) bit for Data Block #12 (B3:4/11 = M0:1.3411/11) must be set to inform the secondary
1747-BSN that the secondary processor has received the latest Data Block and is now ready for the next block of data via Data Block #12.
This rung copies the "new" Data Block #13 data from the secondary 1747-BSN to a file within the secondary processor. When the Copy is
complete, the DTHW (Data Table Handshake Word) bit for Data Block #13 (B3:4/12 = M0:1.3411/12) must be set to inform the secondary
1747-BSN that the secondary processor has received the latest Data Block and is now ready for the next block of data via Data Block #13.
This rung copies the "new" Data Block #14 data from the secondary 1747-BSN to a file within the secondary processor. When the Copy is
complete, the DTHW (Data Table Handshake Word) bit for Data Block #14 (B3:4/13 = M0:1.3411/13) must be set to inform the secondary
1747-BSN that the secondary processor has received the latest Data Block and is now ready for the next block of data via Data Block #14.
This rung copies the "new" Data Block #15 data from the secondary 1747-BSN to a file within the secondary processor. When the Copy is
complete, the DTHW (Data Table Handshake Word) bit for Data Block #15 (B3:4/14 = M0:1.3411/14) must be set to inform the secondary
1747-BSN that the secondary processor has received the latest Data Block and is now ready for the next block of data via Data Block #15.
Virtual DTHW bit for Data Block #12
Virtual DTHW bit for Data Block #13
Virtual DTHW bit for Data Block #14
Virtual DTHW bit for Data Block #15
Virtual DTSW bit for Data Block #12
Virtual DTSW bit for Data Block #13
Virtual DTSW bit for Data Block #14
Virtual DTSW bit for Data Block #15
