Data transfer schemes, Data transfer schemes -14, Data transfer method 1 -14 – Rockwell Automation 1747-BSN Backup Scanner Module User Manual

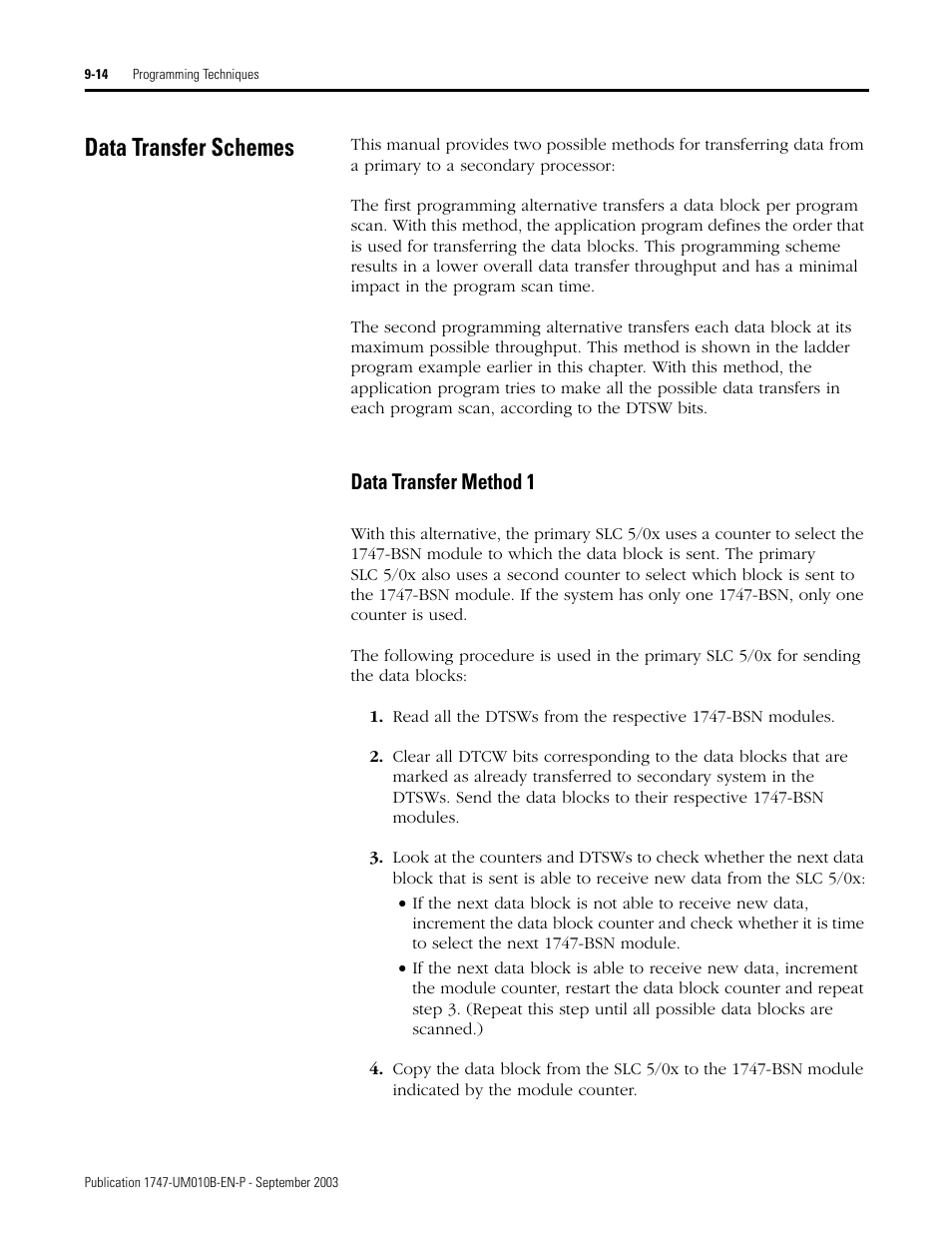

Page 156: Data transfer method 1
