Commissioning
Setpoint selection
l
142
EDBCSXS064 EN 4.0
6.12
Setpoint selection
The operating mode selected in C3005 enables a pre−assignment from different setpoint
sources:
Code
Value
1)
Setpoint source
Setpoints
C3005
1000
4000
Analog input
l
Fixed speed
l
Analog setpoints
(e. g. master voltage or master current)
1003
4003
AIF module
l
Fixed speed
l
Fieldbus setpoints
1005
4005
MotionBus (CAN)
l
Fixed speed
l
CAN setpoints
1)
100x = speed control ("Speed")
400x = torque control ("Torque")
Example: selection of analog setpoints
For selecting analog setpoints you can for instance configure the analog input signal in
GDC in the parameter menu under Function blocks
W AIn1:
ECSXA307

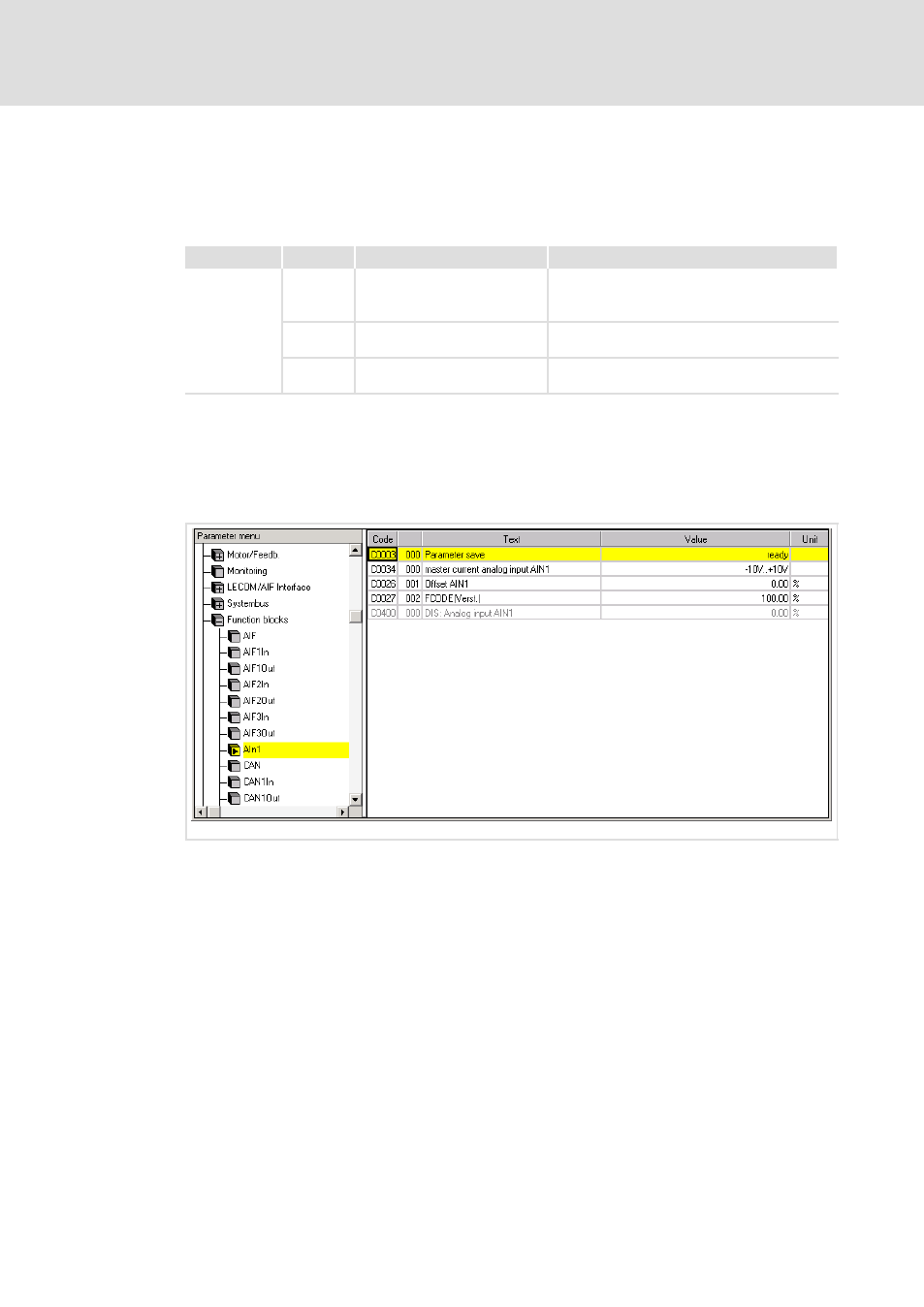

Fig. 6−18
GDC view: Codes of the function block AIn1
