Selecting the operating mode/control structure
For frequent applications, the controller−internal signal processing is saved in basic
configurations hich can be selected via C3005:
ƒ
Speed control:
Code
Value
Interfaces
Application
examples
Functional
description
C3005
1000
Activation/setpoint via analog input
^ 127
^ 318
1003
Control / setpoint via AIF
^ 130
1005
Control / setpoint via MotionBus (CAN)
^ 132
ƒ
Torque control:
Code
Value
Interfaces
Application
examples
Functional
description
C3005
4000
Activation/setpoint via analog input
^ 134
^ 343
4003
Control / setpoint via AIF
^ 137
4005
Control / setpoint via MotionBus (CAN)
^ 139
(
Stop!
When the internal control structure is changed, another terminal assignment
may result!
In the GDC the code C3005 can be found in the parameter menu under
ƒ
Short setup
W Speed (for speed control).
ƒ
Short setup
W Torque (for torque control).

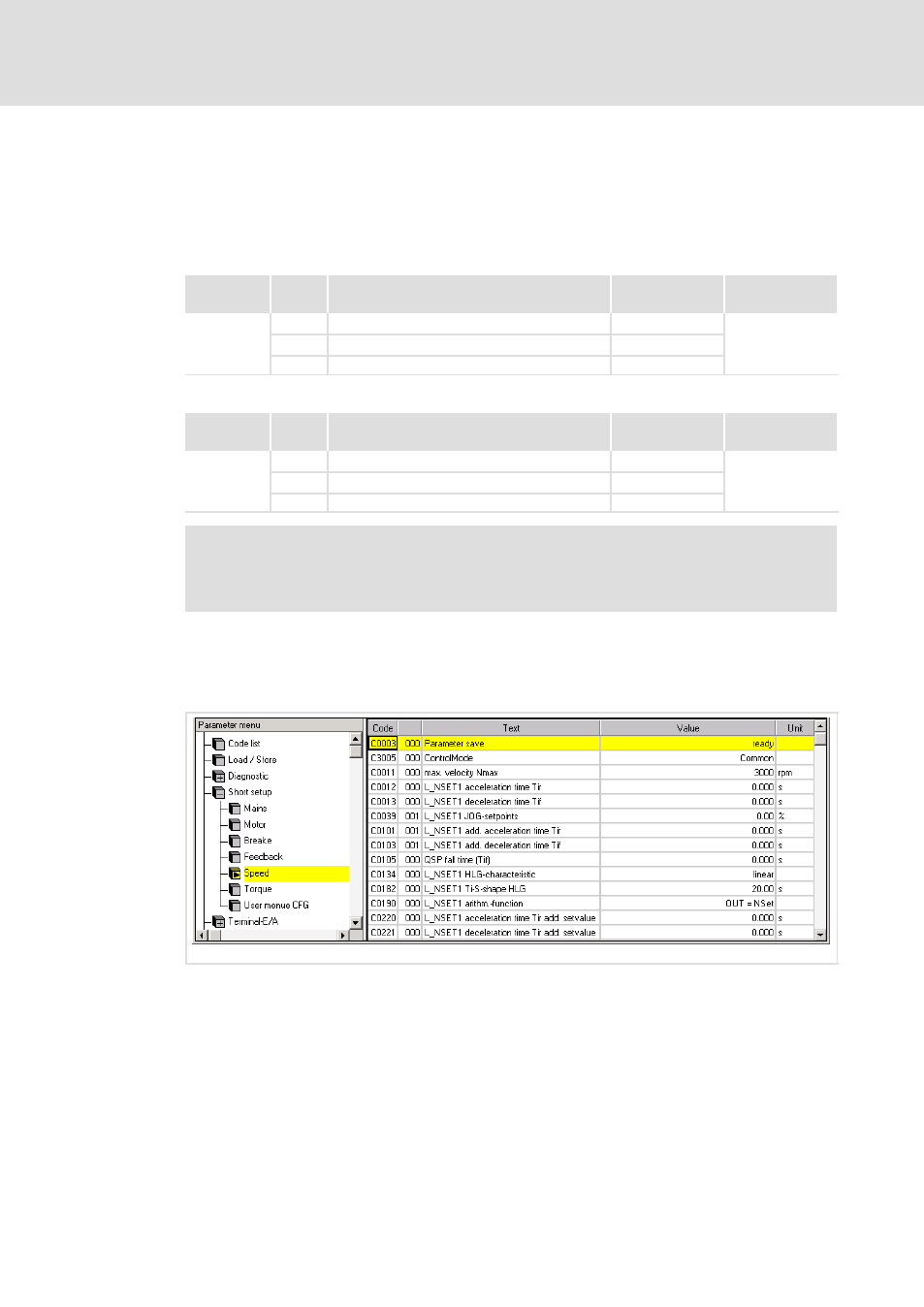

ECSXA305
Fig. 6−8
GDC view: short setup of the speed control ("Speed")
