Electrical installation
Control terminals
Device variant without "Safe torque off" function
5
l
201 EDKVF9333V DE/EN/FR 7.1
5.8.2 Device variant without "Safe torque off" function
Supply via internal voltage source
ƒ For the supply of the digital inputs (X5/E1 ... X5/E5) you have to set a freely
assignable digital output (e. g. X5/A1) permanently to HIGH level.
ƒ For the supply of the analog inputs (X6/1, X6/2 and X6/3, X6/4) you have to set a
freely assignable analog output (e. g. X6/63) permanently to HIGH level.
GND2 +24V
E5 A2 A3 A4 ST1ST2 59 39
3k 47k
50mA 50mA 50mA 50mA
X5 28 E1 E2 E3 E4
3k 3k 3k 3k 3k
S1
A1
X3
X6 1 2 3 4
242R
1
2
3
4
5
6
100k 100k 100k 100k
3.3nF
GND1 GND1
7 7 62 63
AIN1 AIN2
AOUTx
AOUT2
AOUT1
1 3 2 4 7
10k 10k
9300vec201

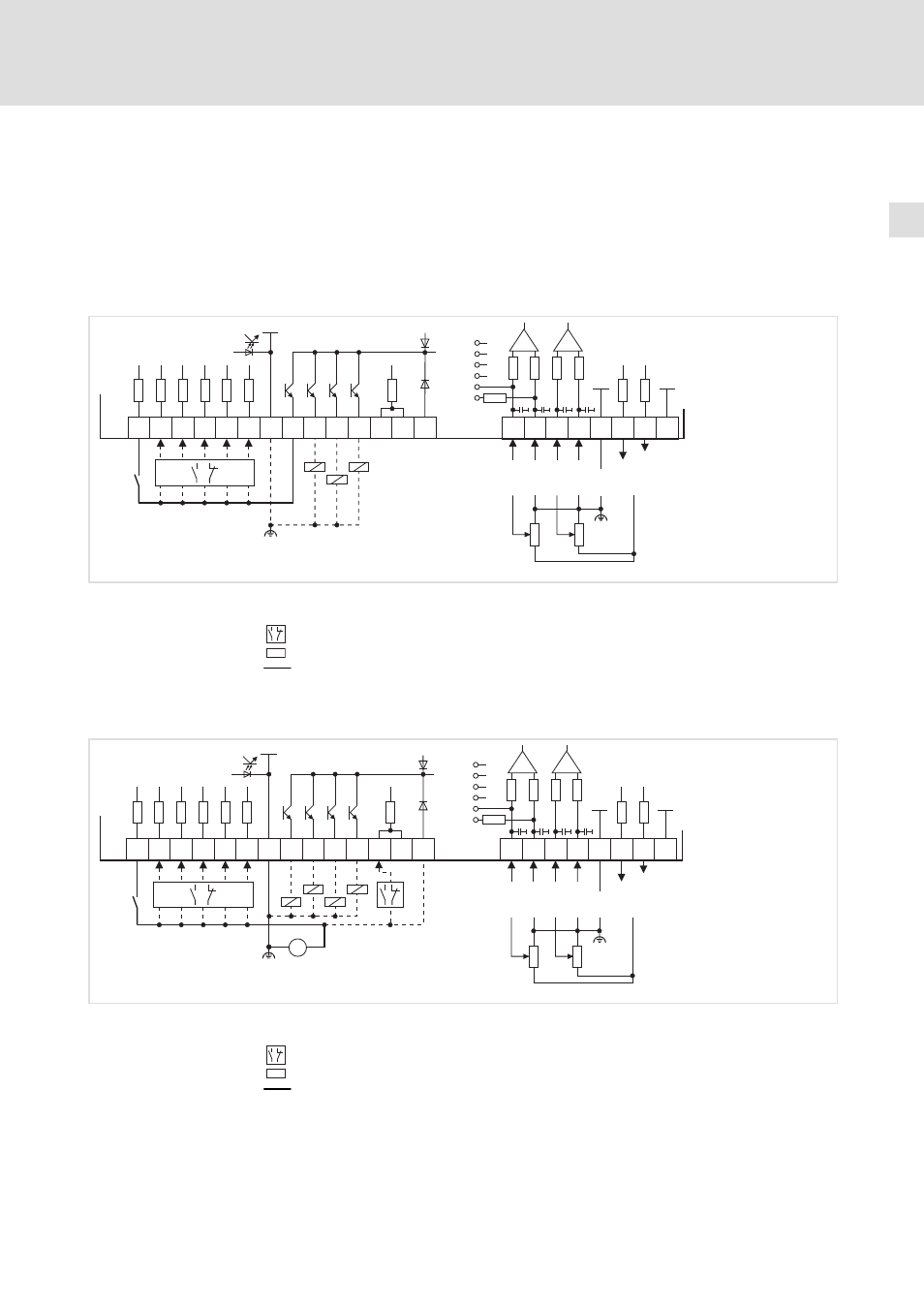

Fig. 5−26 Wiring of digital and analog inputs/outputs for internal voltage source
S1 Controller enable
NO contact or NC contact
Z Load
Minimum wiring required for operation
Terminal assignment in the Lenze setting: ^ 205
Supply via external voltage source
GND2 +24V
E5 A2 A3 A4 ST1ST2 59 39
3k 47k
50mA 50mA 50mA 50mA
X5 28 E1 E2 E3 E4
3k 3k 3k 3k 3k
DC 24 V
(+18 V … +30 V)
S1
+ –
A1
X3
GND1 GND1
X6 1 2 3 4 7 7 62 63
242R
1
2
3
4
5
6
100k 100k 100k 100k
3.3nF
AIN1 AIN2
AOUTx
AOUT2
AOUT1
1 3 2 4 7
10k 10k
9300vec202
Fig. 5−27 Wiring of digital and analog inputs/outputs for external voltage source
S1 Controller enable
NO contact or NC contact
Z Load
Minimum wiring required for operation
Terminal assignment in the Lenze setting: ^ 205
