Electrical installation
Standard devices in the power range of 55 kW
Important notes
l
183
EDKVF9333V DE/EN/FR 7.1
5.6
Standard devices in the power range of 55 kW
5.6.1
Important notes

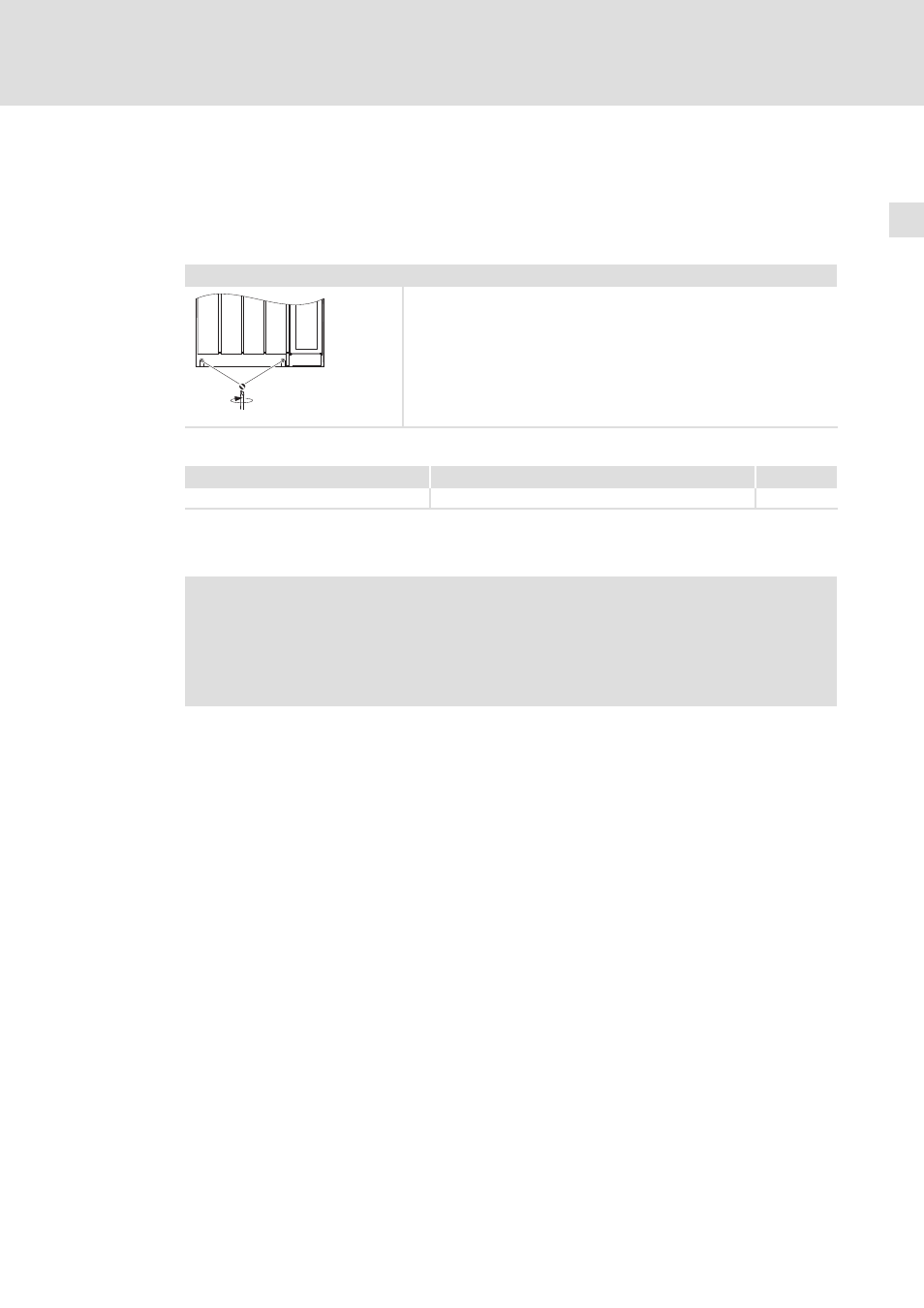

To gain access to the power connections, remove the cover:
Remove the cover of the drive controller
0
1
1. Remove the screws
0
2. Lift cover
1 up and detach it
9300vec113
Installation material required from the scope of supply:
Description
Use
Quantity
Cable ties 3.5 × 150 mm
Strain relief/shield connection for motor cable
4
5.6.2
Mains connection, DC supply
)
Note!
ƒ
If a mains filter or RFI filter is used and the cable length between mains/RFI
filter and drive controller exceeds 300 mm, install a shielded cable.
ƒ
For DC−bus operation or DC supply, we recommend using shielded DC
cables.
