Page 144: Mounting
Mechanical installation
Standard devices in the power range 15 ... 30 kW
Mounting with fixing brackets (standard)
l
144
EDKVF9333V DE/EN/FR 7.1
4.2.2
Mounting with fixing brackets (standard)
Mounting material required from the scope of supply:
Description
Use
Quantity
Fixing bracket
Drive controller fixing
4
Raised countersunk head screw
M5 × 10 mm (DIN 966)
Mounting of fixing bracket to the drive controller
4
Dimensions
c1
a
d1
c
e
d
b1
b
L
g
m
k
0
³ 100mm
³ 100mm
9300vec111

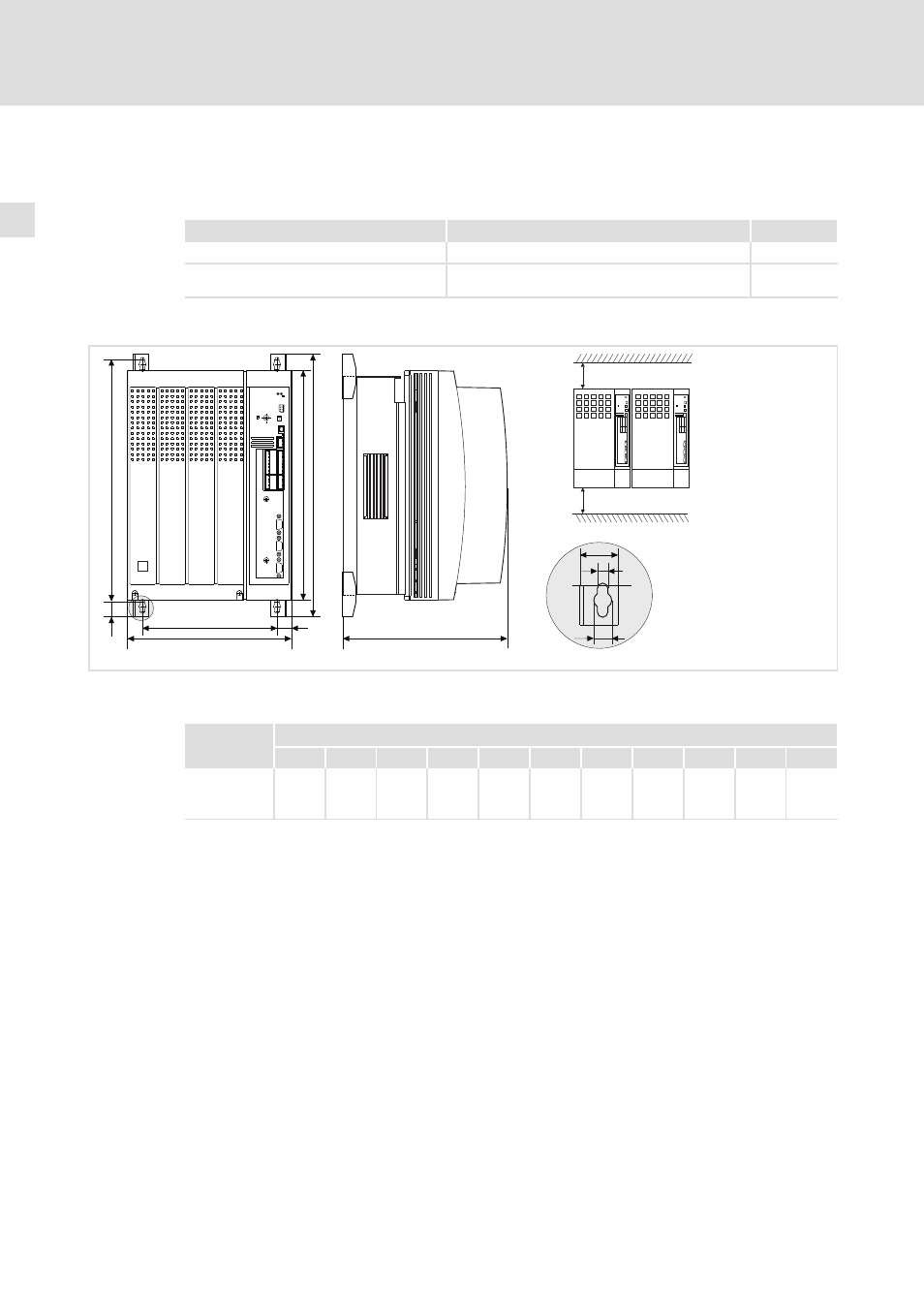

Fig. 4−4
Standard mounting with fixing brackets 15 ... 30 kW
0 Drive controllers can be mounted side by side without spacing
9300 vector
Dimensions [mm]
Type
a
b
b1
c
c1
d
d1
e
1)
g
k
m
EVF9327−EV
EVF9328−EV
EVF9329−EV
250
402
350
22
206
370
24
250
6.5
24
11
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting
ƒ
Attach the fixing brackets to the heatsink plate of the drive controller.
