8 Programming
8.1 Basic status

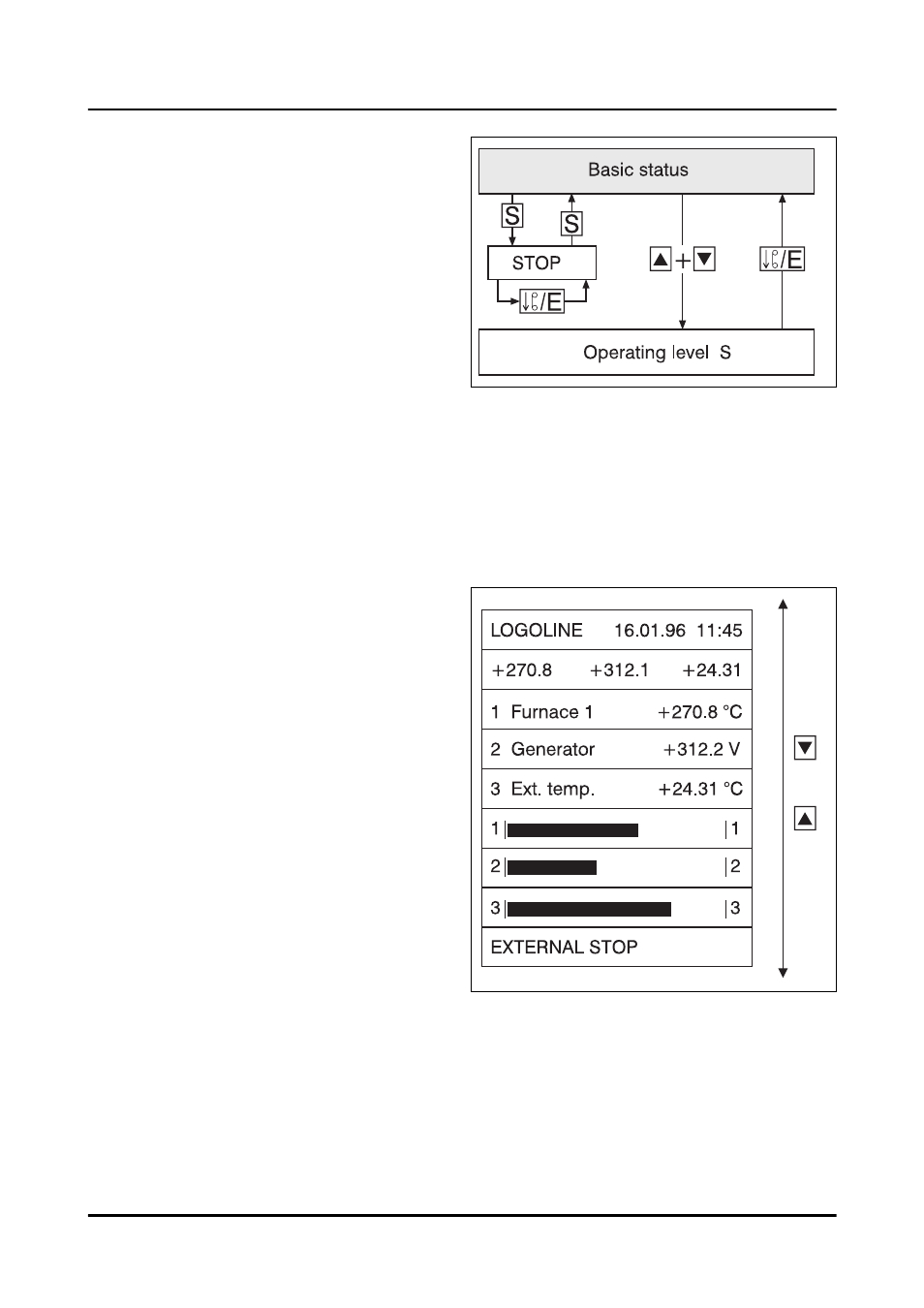

The recorder is in the basic status after the
supply has been applied and it has been in-
itialised. The measurement signals are ac-
quired, processed and recorded.
In the basic status the following are indicat-
ed, depending on the setting:
- the instrument designation, date and time
(the time can be switched off via the para-
meter parameter level
 display time)
- the measurements of all active channels
- one channel, its measurement, designation
and unit
- one channel and its measurement as a
bargraph
- or status/error messages
Display can be cyclic or static:
cyclic display
After approx. 3 sec the pen recorder switch-
es automatically to the subsequent display.
static display
In the basic status the static display is acti-
vated and deactivated with
E
.
When it is activated, the current display is
maintained and updated at regular intervals.
The indication can be altered during record-
ing with the
h
and
R
keys.
Status and error messages are always
shown in plain language, flashing regularly,
instead of the current display.
The display of status and error messages
can be stopped and re-activated by pressing
l+r
.
Using the
S
key, the recording is stopped
and re-started. In the stop status the LED
matrix display flashes “STOP” .
